Product Details:
|
Model: | LQ050Q5DR01R | Diagonal Size: | 5.0 Inch |
---|---|---|---|
Luminance: | 380 Cd/m² (Typ.) | Pixel Format: | 320(RGB)×240 [QVGA] 80PPI |
Light Source: | CCFL , 20K Hours , W/O Driver | Interface Type: | Parallel RGB (1 Ch, 6-bit) , 40 Pins Connector |
Viewing Angle: | 65/65/65/55 | Environment: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 M/s²) |
High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
Pixel Features : | |
---|---|
Mechanical Size : | |
Outline Features : | |
Other Spec : |
Basic Information : | |
---|---|
Color Performance : |
Signal Electrical : | |
---|---|
Signal Type : | |
Interface Features : | |
Interface Detail : |
Backlight Features : | |
---|---|
Lamp Electrical : | |
Interface Features : | |
Interface Detail : | |
Backlight Driver : |

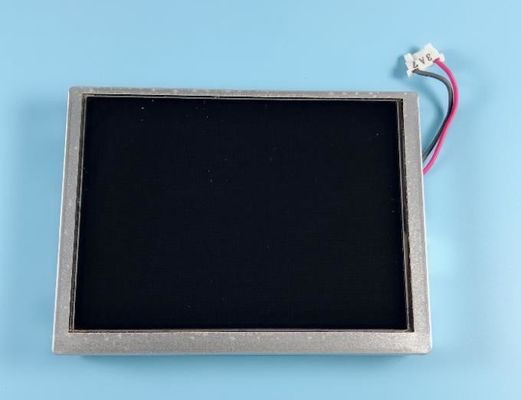

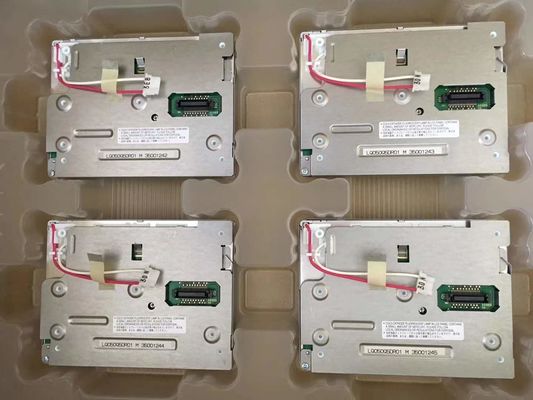

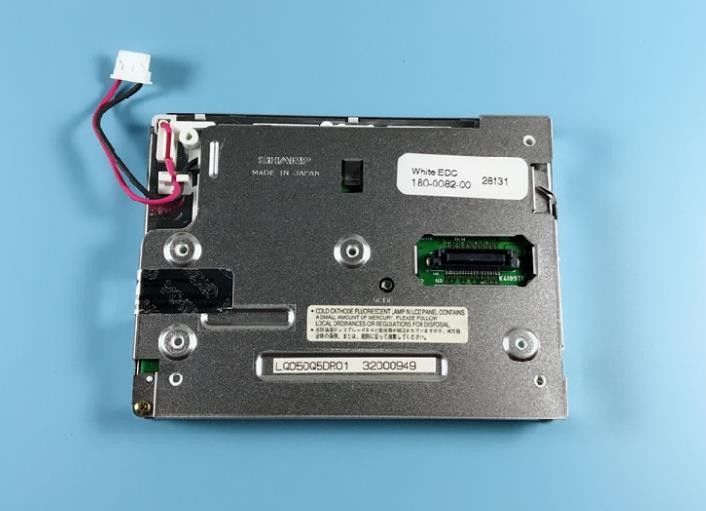

LQ050 Series LQ050Q5DR01R LQ050Q5DR01
LQ050Q5DR01R supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 101.28(W)×74.76(H) mm, outline size of 119.4(W)×89.1(H)×16.05(D) mm, viewing area size of 108.9(W)×79.35(H) mm, with surface treament of Antiglare, Antireflection, net weight of 170g (Max.). As a TN, Normally White, Transmissive LCM product, LQ050Q5DR01R can provides 380 cd/m² display brightness 100:1 transimissive contrast ratio, 65/65/65/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/50 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, external backlight driver is additionally needed.
