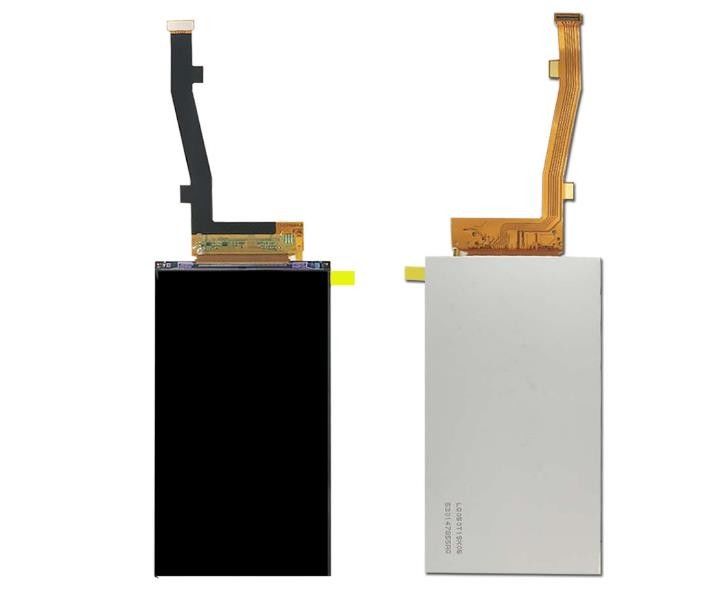

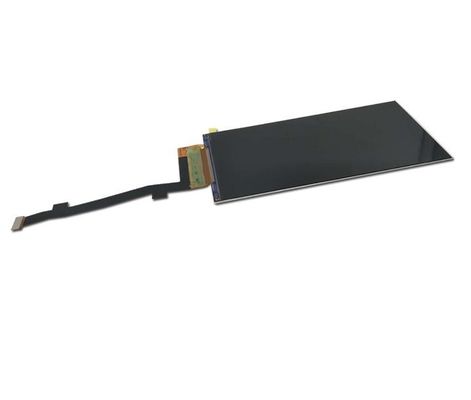

Product Details:
|
| Manufacturer: | Sharp | Model Name: | LQ050T1SX05 |
|---|---|---|---|
| Luminance: | 450 Cd/m² (Typ.) | Pixel Number: | 1080(RGB)×1920 (FHD) 445PPI |
| Screen Size: | 5.0 Inch | Backlight: | 7S2P WLED , No Driver |
| Signal Type: | MIPI (4 Data Lanes) , 34 Pins Connector | Max. Ratings: | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
LQ050 Series LQ050T1SX05 LQ050T1SX02
| Pixel Features : | Resolution | 1080(RGB)×1920, FHD | Dot Pitch(mm) | 0.019025×0.057075 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.057075×0.057075 (H×V) [445PPI] | |

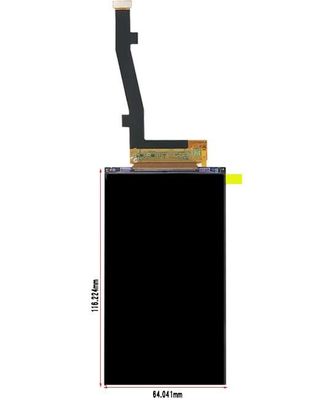

| Mechanical Size : | Active Area(mm) | 61.641(H) × 109.584(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 64.041(H) × 116.224(V) | Depth(mm) | 1.06±0.1 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 9:16 (H:V) | Orientation | Portrait type | |
| Other Spec : | Weight | 14.0g | Treatment | Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 450 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Min.)(CR≥10) | Display Mode | New Mode2, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 45 (Max.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.300; Y:0.320 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 7351K | White Uniformity | 1.18/1.25 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 95% | sRGB | 100% coverage |
| Adobe RGB | 88% coverage | DCI-P3 | 94% coverage | |
| Rec.2020 | 70% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 1.8/5.5/-5.5V (Typ.)(IOVDD/VSP/VSN) | Current Supply | 16.1/5.5/5.4mA (Typ.)(IOIDD/ISP/ISN) | ||
|---|---|---|---|---|---|---|
| Signal Type : | MIPI (4 data lanes) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | BM20B(0.8)-34DP-0.4V(51) | 1 pcs | 34 pins | 0.4 mm | ||
| Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 7S2P | Life Time | - | |
| Lamp Electrical : | Voltage Supply | Current Supply | 20mA (Typ.) | |||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
LQ050T1SX05 supports display 1080(RGB)×1920 (FHD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 445 PPI. As for mechanical detail, it features active area of 61.641(W)×109.584(H) mm, outline size of 64.041(W)×116.224(H)×1.16(D) mm, with surface treament of Hard coating (3H), net weight of 14.0g. As a New Mode2, Normally Black, Transmissive LCM product, LQ050T1SX05 can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 45 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 95% (NTSC). This product adopted 7S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
