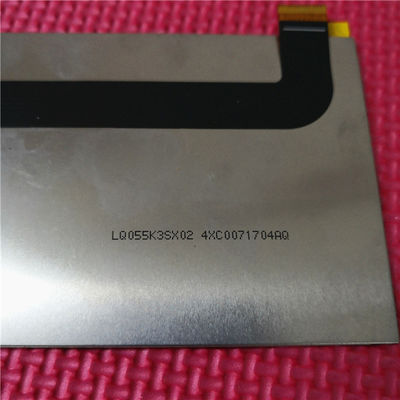

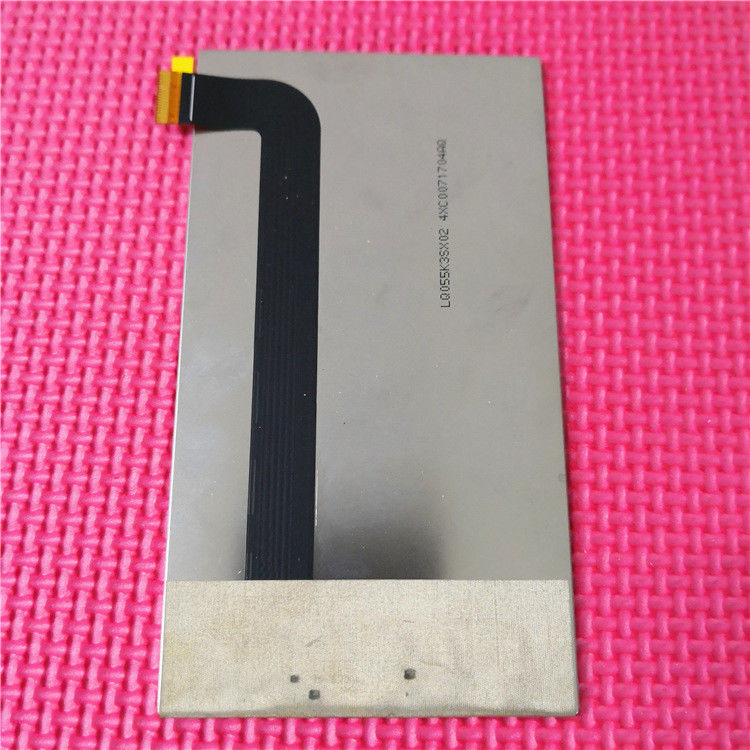

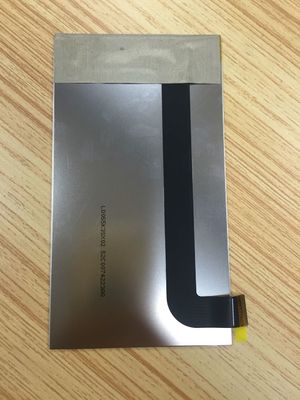

Product Details:
|
| Model: | LQ055K3SX02 | Brand: | Sharp |
|---|---|---|---|
| Pixel Format: | 720(RGB)×1280 [WXGA] 268PPI | Viewing Angle: | 80/80/80/80 (Typ.) |
| Diagonal Size: | 5.5 Inch | Luminance: | 500 Cd/m² (Typ.) |
| Light Source: | WLED [2 Strings] , W/O Driver | Environment: | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
| Basic Information : | Brand | SHARP | Model | LQ055K3SX02 |
|---|---|---|---|---|
| Type | LCM Oxide TFT-LCD | Used For | ||
| Screen Size | 5.5" | Alias | - | |
| Environment : | Storage Temp. | -30 ~~ 70 °C | Operating Temp. | -20 ~~ 60 °C |
| Pixel Features : | Resolution | 720(RGB)×1280, WXGA | Dot Pitch(mm) | 0.3135×0.9405 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.0945×0.0945 (H×V) [268PPI] | |
| Mechanical Size : | Active Area(mm) | 68.04(H) × 120.96(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 72.3(H) × 130.39(V) | Depth(mm) | 1.65 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 9:16 (H:V) | Orientation | Portrait type | |
| Other Spec : | Weight | 35.0g | Treatment | - |
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Display Mode | New Mode2, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 35 (Max.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.300; Y:0.320 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 7351K | White Uniformity | 1.25 (Typ.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 70% | sRGB | 97% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 73% coverage | |
| Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 2 strings | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 18.0/21.0V (Typ./Max.) | Current Supply | 20mA (Typ.) | ||
| Consumption | 720mW (Typ.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
| Signal Electrical : | Voltage Supply | 1.8/2.8V (Typ.)(IOVCC/VCC) | Current Supply | 31/9.2mA (Typ.)(IOICC/ICC) | ||
|---|---|---|---|---|---|---|
| Signal Type : | MIPI (4 data lanes) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 39 pins | |||||
LQ055K3SX02 supports display 720(RGB)×1280 (WXGA) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 268 PPI. As for mechanical detail, it features active area of 68.04(W)×120.96(H) mm, outline size of 72.3(W)×130.39(H) mm, net weight of 35.0g. As a New Mode2, Normally Black, Transmissive LCM product, LQ055K3SX02 can provides 500 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
