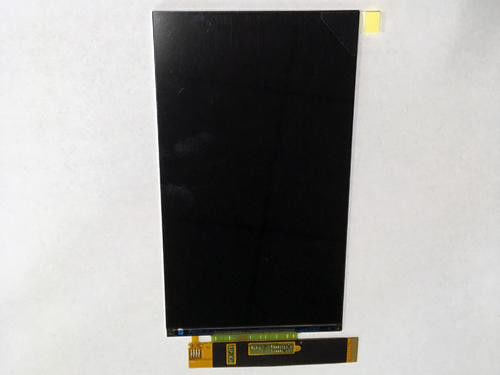

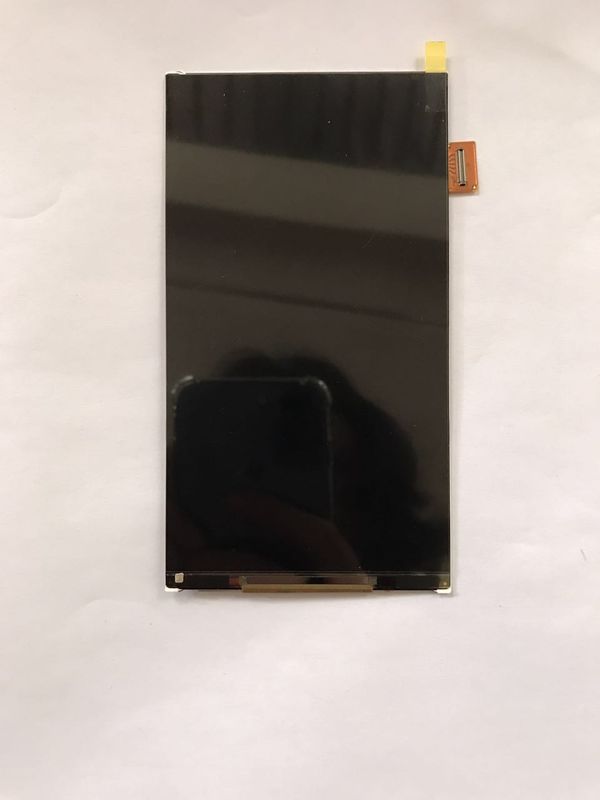

Product Details:
|
| Brand: | Sharp | Model: | LQ055T3SX03 |
|---|---|---|---|
| Pixel Format: | 1080(RGB)×1920 [FHD] 403PPI | Luminance: | 450 Cd/m² (Typ.) |
| Diagonal Size: | 5.5 Inch | Light Source: | WLED [6S2P] , W/O Driver |
| Interface Type: | MIPI (4 Data Lanes) , 30 Pins Connector | Environment: | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
LQ055 Series LQ055T3SX03 LQ055T3SX02Z LQ055T3SX02
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LQ055T3SX03 | Oxide TFT-LCD , LCM | - | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 60 °C | -30 ~ 70 °C | - |
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 450 cd/m² (Typ.) | New Mode2, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 80/80/80/80 (Typ.)(CR≥10) | 35 (Max.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6778K | 16.7M (8-bit) | X:0.308; Y:0.327 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 71% | 98% | 74% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 74% | 53% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.18/1.33 (Typ./Max.)(9 points) | ||
| Screen Size : | 5.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1080(RGB)×1920, FHD | RGB Vertical Stripe | 0.021×0.063 mm | 0.063×0.063 mm [403PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 68.04×120.96 mm | - | 70.84×128.56 mm | 1.5±0.15 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 9:16 | Portrait type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 22.0g (Typ.) | - | - | ||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 1.8/5.0/5.0V (Typ.)(IOVCC/VSP/VSN) | 22.3/8.3/8.1mA (Typ.)(IOICC/ISP/ISN) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| MIPI (4 data lanes) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| molex | 503304-3010 | 1 pcs | 30 pins | 0.4 mm | ||
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | 6S2P | 2 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 17.4/18.6V (Typ./Max.) | 20mA (Typ.) | |||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | - | ||||
LQ055T3SX03 supports display 1080(RGB)×1920 (FHD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 403 PPI. As for mechanical detail, it features active area of 68.04(W)×120.96(H) mm, outline size of 70.84(W)×128.56(H)×1.65(D) mm, net weight of 22.0g (Typ.). As a New Mode2, Normally Black, Transmissive LCM product, LQ055T3SX03 can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Max.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
