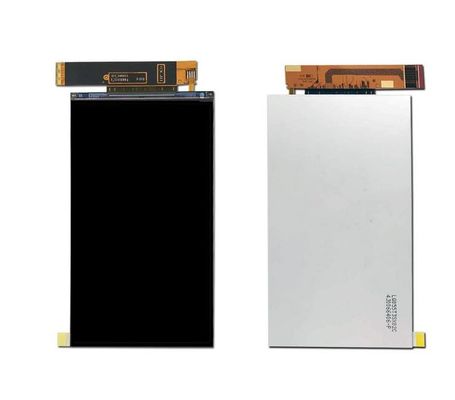

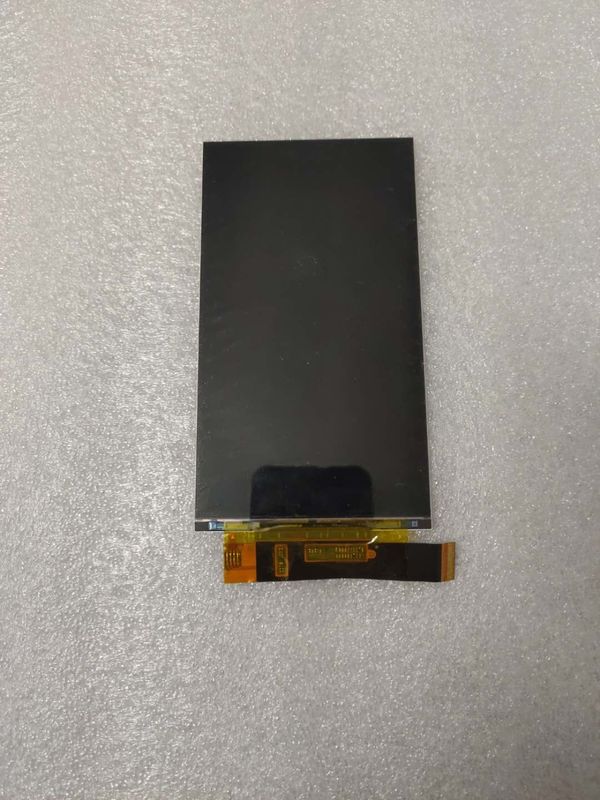

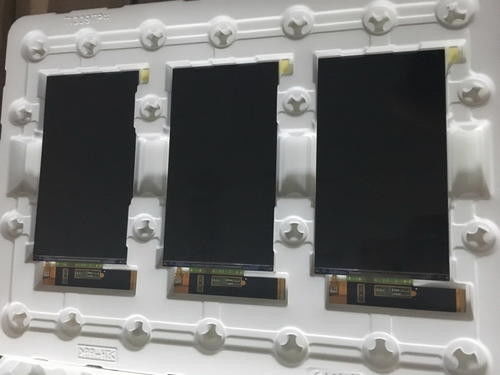

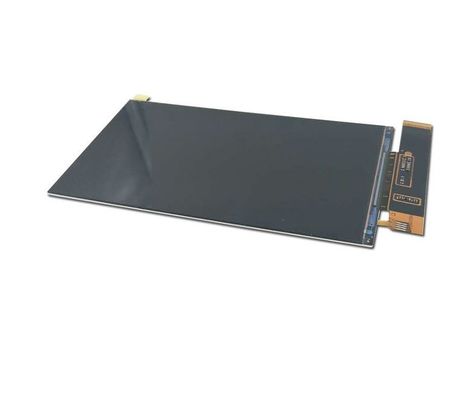

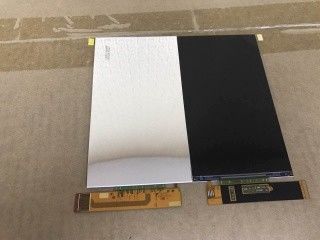

Product Details:
|
| Brand: | Sharp | Model: | LQ055T3SX02 |
|---|---|---|---|
| Luminance: | 450 Cd/m² (Typ.) | Viewing Angle: | 80/80/80/80 (Typ.) |
| Diagonal Size: | 5.5 Inch | Pixel Format: | 1080(RGB)×1920 [FHD] 403PPI |
| Light Source: | WLED [6S2P] , W/O Driver | Environment: | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
LQ055 Series LQ055T3SX03 LQ055T3SX02Z LQ055T3SX02
| Pixel Features : | Resolution | 1080(RGB)×1920, FHD | Dot Pitch(mm) | 0.021×0.063 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.063×0.063 (H×V) [403PPI] | |
| Mechanical Size : | Active Area(mm) | 68.04(H) × 120.96(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 70.84(H) × 128.56(V) | Depth(mm) | 1.5±0.15 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 9:16 (H:V) | Orientation | Portrait type | |
| Other Spec : | Weight | 23.0g (Typ.) | Treatment | - |
| Basic Information : | Luminance(cd/m²) | 450 (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Display Mode | New Mode2, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 35 (Typ.)(Tr+Td) | |
| Color Performance : | White Coordinate | X:0.300; Y:0.310 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 7525K | White Uniformity | 1.25/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 98% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Signal Electrical : | Voltage Supply | 1.8/5.8/5.6V (Typ.)(VDDI/VSP/VSN) | Current Supply | 21.8/9.3/9.9mA (Typ.)(IDDI/ISP/ISN) | ||
|---|---|---|---|---|---|---|
| Signal Type : | MIPI (4 data lanes) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 39 pins | 0.3 mm | ||||
| Backlight Features: | Shape | 2 strings | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 6S2P | Life Time | - | |
| Lamp Electrical : | Voltage Supply | 17.4/18.6V (Typ./Max.) | Current Supply | 20mA (Typ.) | ||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
LQ055T3SX02 supports display 1080(RGB)×1920 (FHD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 403 PPI. As for mechanical detail, it features active area of 68.04(W)×120.96(H) mm, outline size of 70.84(W)×128.56(H)×1.65(D) mm, net weight of 23.0g (Typ.). As a New Mode2, Normally Black, Transmissive LCM product, LQ055T3SX02 can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
