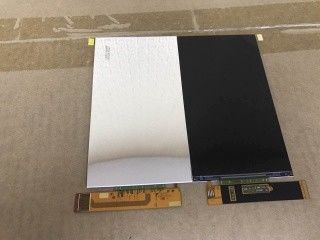

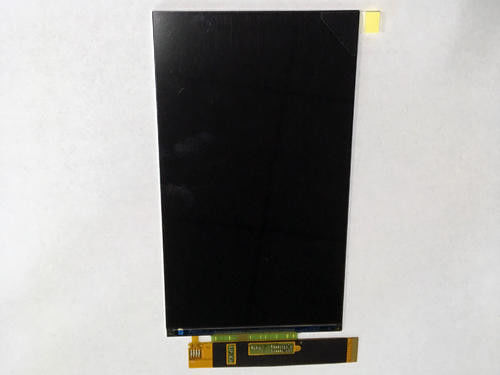

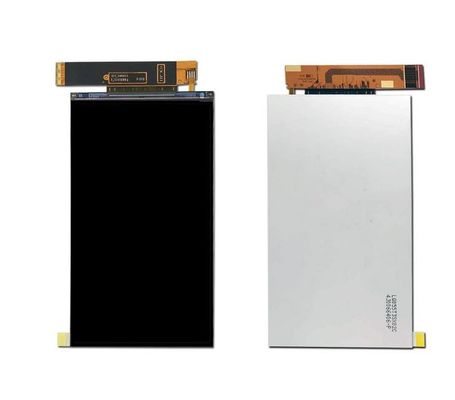

Product Details:
|
| Model: | LQ055T3SX02Z | Brand: | Sharp |
|---|---|---|---|
| Pixel Format: | 1080(RGB)×1920 [FHD] 403PPI | Diagonal Size: | 5.5 Inch |
| Luminance: | 450 Cd/m² (Typ.) | Light Source: | WLED [6S2P] , W/O Driver |
| Interface Type: | MIPI (4 Data Lanes) , 39 Pins FPC | Environment: | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
LQ055 Series LQ055T3SX03 LQ055T3SX02Z LQ055T3SX02
| Basic Detail : | Manufacturer | SHARP | Model Name | LQ055T3SX02Z |
|---|---|---|---|---|
| Panel Type | Oxide TFT-LCD , LCM | Another Name | - | |
| Panel Size | 5.5 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 60 °C | ST Temperature | -30 ~ 70 °C |
| Basic Information : | Luminance | 450 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 35 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | New Mode2, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.320 | Support Color | 16.7M (8-bit) |
| Color Temperature | 7351K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 85% | sRGB | 100% coverage |
| Adobe RGB | 82% coverage | DCI-P3 | 87% coverage | |
| Rec.2020 | 63% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Pixel Features : | Number of Pixel | 1080(RGB)×1920 [FHD] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.021×0.063 mm | Pixel Pitch(W×H) | 0.063×0.063 mm [403PPI] | |
| Physical Size : | Active Viewing | 68.04(W)×120.96(H) mm | Overall Dim. | 70.84(W)×128.56(H) mm |
| Bezel Opening | - | Overall Depth | 1.5±0.15 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Portrait type |
| Aspect Ratio(W:H) | 9:16 | Shape Style | ||
| Other Detail : | Mass | 23g (Typ.) | Surface | - |
| Signal Electrical : | Input Current | 21.8/9.3/9.9mA (Typ.)(IDDI/ISP/ISN) | Input Voltage | 1.8/5.8/5.6V (Typ.)(VDDI/VSP/VSN) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | MIPI (4 data lanes) | |||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.3 mm | 39 pins | ||||
| Lamp Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 6S2P | Life | - | |
| Lamp Electrical : | Input Current | 20mA (Typ.) | Input Voltage | 17.4/18.6V (Typ./Max.) | ||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
LQ055T3SX02Z supports display 1080(RGB)×1920 (FHD) with aspect ratio of 9:16 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 403 PPI. As for mechanical detail, it features active area of 68.04(W)×120.96(H) mm, outline size of 70.84(W)×128.56(H)×1.65(D) mm, net weight of 23g (Typ.). As a New Mode2, Normally Black, Transmissive LCM product, LQ055T3SX02Z can provides 450 cd/m² display brightness 1000:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 85% (NTSC). This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
