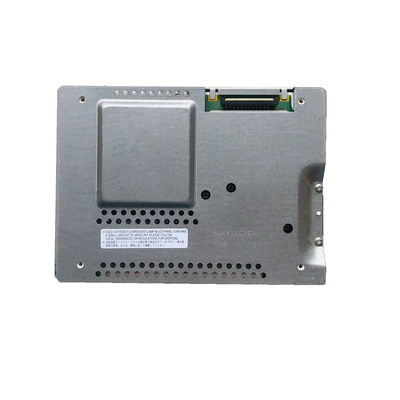

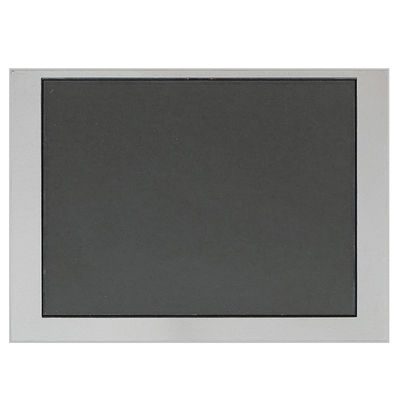

Product Details:
|
| Brand: | Sharp | Model: | LQ056A3AG01R |
|---|---|---|---|
| Luminance: | 250 Cd/m² (Typ.) | Pixel Format: | 320(RGB)×234 71PPI |
| Diagonal Size: | 5.6 Inch | Light Source: | CCFL [1 Pcs] , 25K Hours , With Inverter |
| Interface Type: | Analog RGB + Composite Video (NTSC/PAL) 24 Pins Connector | Environment: | Operating Temperature: 0 ~ 65 °C ; Storage Temperature: -25 ~ 70 °C |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
LQ056 Series LQ056A5GG01 LQ056A3AG01R LQ056A3AG01
| Pixel Features : | Resolution | 320(RGB)×234 | Dot Pitch(mm) | 0.119×0.357 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.357×0.357 (H×V) [71PPI] | |
| Mechanical Size : | Active Area(mm) | 114.2(H) × 83.5(V) | Bezel Area(mm) | 120.0(H) × 89.4(V) |
| Outline Dim.(mm) | 140(H) × 102.7(V) | Depth(mm) | 20.0 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting holes (4-Φ2.2) | |||
| Other Spec : | Weight | 250±20g | Treatment | - |
| Basic Information : | Brand | SHARP | Model | LQ056A3AG01R |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 5.6" | Alias | - | |
| Environment : | Storage Temp. | -25 ~~ 70 °C | Operating Temp. | 0 ~~ 65 °C |
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 60:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/40/65 (Typ.)(CR≥5) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 15/20 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | Full color |
| Color Temperature | 6485K | White Uniformity | - |
| Signal Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 98/130mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Analog RGB + Composite Video (NTSC/PAL) | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| IRISO | IMSA-9619S-24B-GF | 1 pcs | 24 pins | 1.0 mm | ||
LQ056A3AG01R supports display 320(RGB)×234 with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 114.2(W)×83.5(H) mm, outline size of 140(W)×102.7(H) mm, viewing area size of 120.0(W)×89.4(H) mm, net weight of 250±20g. As a TN, Normally White, Transmissive LCM product, LQ056A3AG01R can provides 250 cd/m² display brightness 60:1 transimissive contrast ratio, 65/65/40/65 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 15/20 (Typ.)(Tr/Td) ms., thus presenting a palette of Full color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 25K hours, With Inverter.
