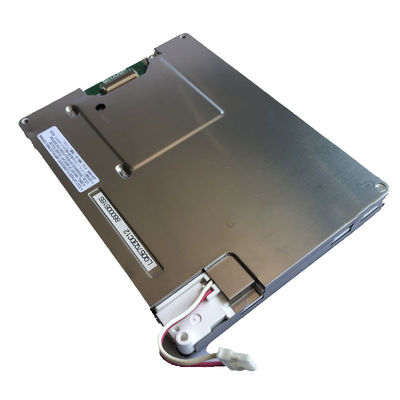

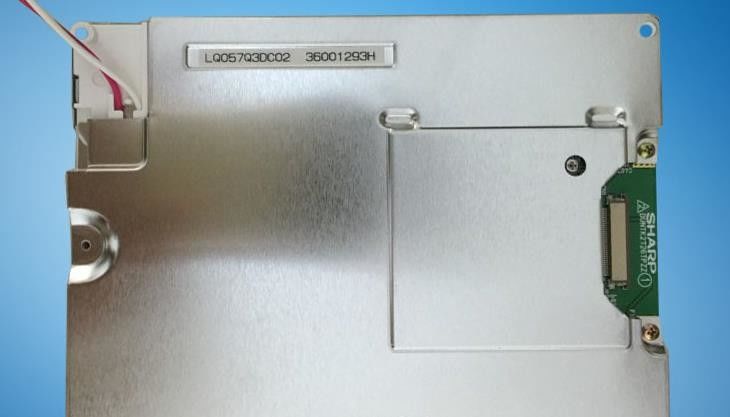

Product Details:
|
| Model: | LQ057Q3DC02 | Diagonal Size: | 5.7 Inch |
|---|---|---|---|
| Brand: | Sharp | Luminance: | 350 Cd/m² (Typ.) |
| Light Source: | CCFL [1 Pcs] , 50K Hours , W/O Driver | Interface Type: | Parallel RGB (1 Ch, 6-bit) , 33 Pins Connector |
| Pixel Format: | 320(RGB)×240 [QVGA] 70PPI | Environment: | Operating Temperature: -10 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||

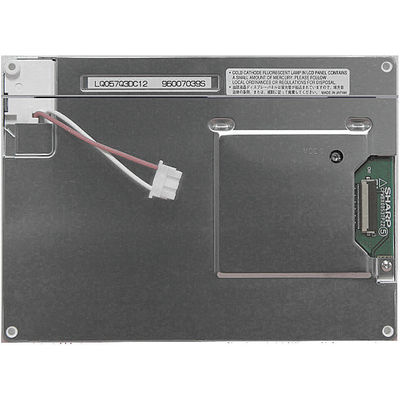

LQ057 Series LQ057Q3DC12 LQ057Q3DC11 LQ057Q3DC03 LQ057Q3DC02
| Screen Size : | 5.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 320(RGB)×240, QVGA | RGB Vertical Stripe | 0.120×0.360 mm | 0.360×0.360 mm [70PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 115.2×86.4 mm | 121.0×92.2 mm | 144×104.6 mm | 12.4/13.5 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| - | - | Hard coating (3H), Antireflection | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 350 cd/m² (Typ.) | TN, Normally White, Transmissive | 60:1 (Min.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 12 o'clock | 65/65/65/40 (Typ.)(CR≥5) | 30/50 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6172K | 262K (6-bit) | X:0.319; Y:0.329 |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | 50K(Typ.) | 1 pcs | - | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 690±70V | 5.0±0.5mA | 3.5W (Typ.) | ||||
| Operating Frequency | Startup Voltage | |||||
| TBD | 1350/1470V (Max.)(Ta=+25/-10℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-02(8.0)VS-1N | 1 pcs | 2 pins | 8.0 mm | BLL-2PINS-LH | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.)(VCC) | 130mA (Typ.)(ICC) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤5.5V | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| Kyocera Elco | 08-6210-033-340-800 | 1 pcs | 33 pins | 0.5 mm | DRGB-33P1C6B-020C | |
