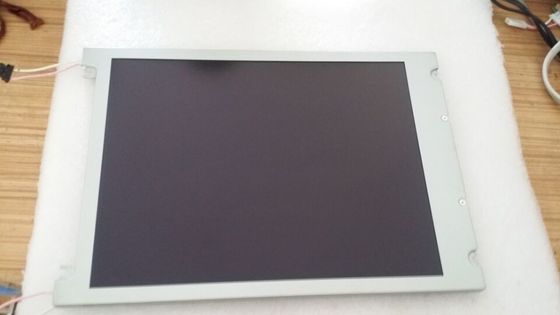

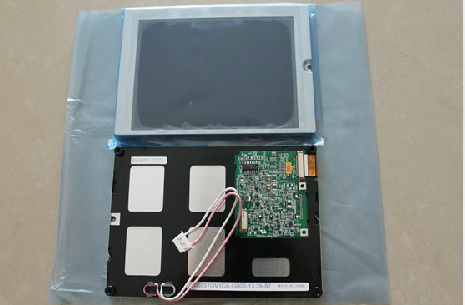

Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ057Q3DG01 |
|---|---|---|---|
| Resolution: | 320(RGB)×240, QVGA, 70PPI | Brightness: | 320 Cd/m² (Typ.) |
| Panel Size: | 5.7INCH | Lamp Type: | 5S4P WLED , 30K Hours |
| Signal Interface: | CMOS (1 Ch, 6-bit) , 33 Pins Connector | Environment: | Operating Temp.: -30 ~ 70 °C ; Storage Temp.: -30 ~ 70 °C |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
LQ057 Series LQ057Q3DG02 LQ057Q3DG01 LQ057Q3DC12 LQ057Q3DC11 LQ057Q3DC03
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 320 (Typ.) | 80/80/80/65 (Typ.)(CR≥5) | 30/10 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 12 o'clock | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6387K | 262K (6-bit) | X:0.314; Y:0.335 |
| Panel Size : | 5.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 320(RGB)×240 [QVGA] | RGB Vertical Stripe | 0.360×0.360 [70PPI] | 0.120×0.360 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 115.2(H) × 86.4(V) | 121.0(H) × 92.2(V) | 144(H) × 103.8(V) | 13.8±0.5 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Touch Screen : | Controller | Touch Points | Interface | TP Technology |
| Without touch controller | - | - | 4-wire Resistive Touch | |
| Mounting : | Side mounting holes (4-M2); Rear mounting holes (4 pcs) | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 255g (Max.) | - | - | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type (Top side) | 5S4P | 4 strings | 30K(Typ.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 16.0/17.5V (Typ./Max.) | 20mA (Typ.) | 1.28W (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | FPC | |||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 8 pins | 1 pcs | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 20/30mA (Typ.) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.1VCC; 0.9VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Signal | Type | |||
| - | CMOS (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| IRISO | IMSA-9637S-33Y902 | 0.5 mm | 33 pins | 1 pcs | DRGB-33P1C6B-040A | |
LQ057Q3DG01 supports display 320(RGB)×240 (QVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×103.8(H)×14.3(D) mm, viewing area size of 121.0(W)×92.2(H) mm, net weight of 255g (Max.). As a TN, Normally White, Transmissive LCM product, LQ057Q3DG01 can provides 320 cd/m² display brightness 500:1 transimissive contrast ratio, 80/80/80/65 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 30/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 5S4P WLED as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 30K hours.
