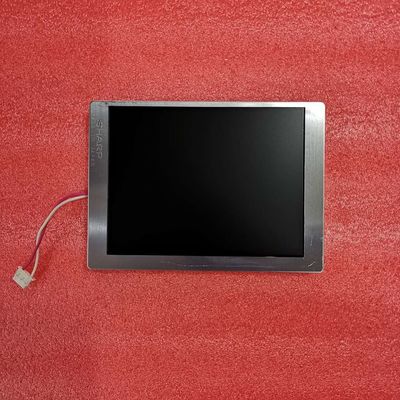

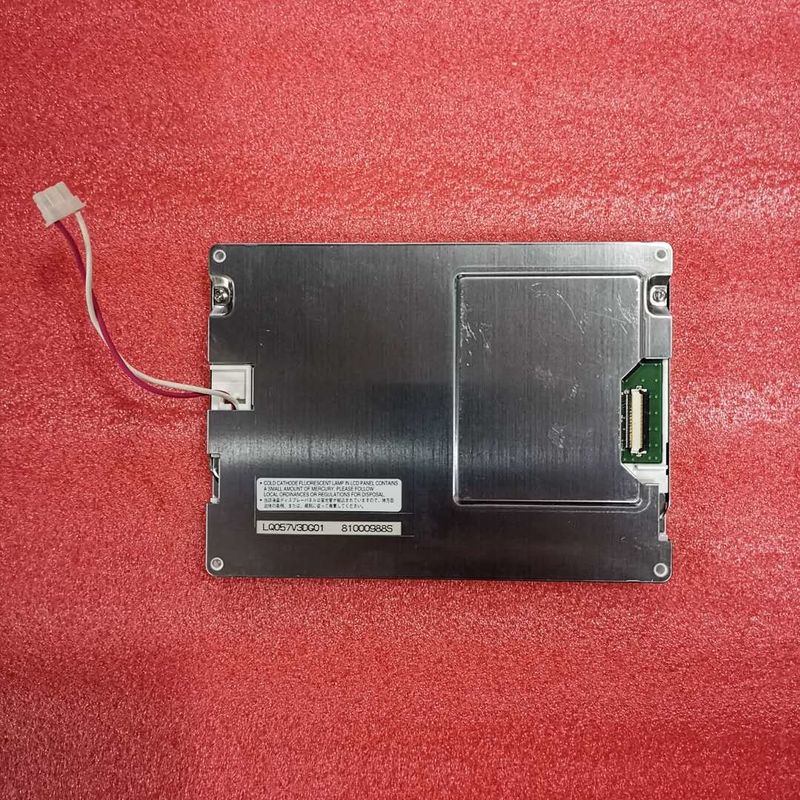

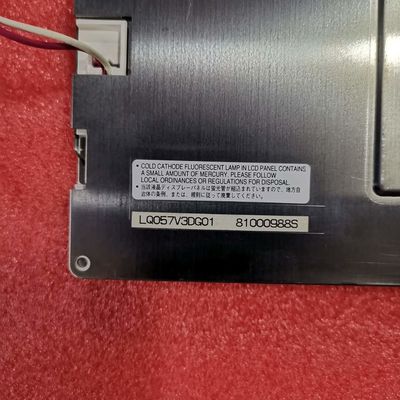

Product Details:
|
| Model: | LQ057V3DG01 | Brand: | Sharp |
|---|---|---|---|
| Luminance: | 400 Cd/m² (Typ.) | Diagonal Size: | 5.7 Inch |
| Pixel Format: | 640(RGB)×480 [VGA] 141PPI | Environment: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| Light Source: | CCFL [1 Pcs] , 50K Hours , W/O Driver | Interface Type: | Parallel RGB (1 Ch, 6-bit) , 33 Pins Connector |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
LQ057 Series LQ057V3LG11 LQ057V3DG02 LQ057V3DG01
| Screen Size : | 5.7" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.060×0.180 mm | 0.180×0.180 mm [141PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 115.2×86.4 mm | 121.0×92.2 mm | 144×104.6 mm | 12.3/13.5 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 250g (Max.) | - | Antiglare | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 12 o'clock | 80/80/80/70 (Typ.)(CR≥5) | 8/21 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 50K(Typ.) | 1 pcs | - | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 610/750V (Min./Max.) | 5.0±0.5mA | 3.5W (Typ.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 30/60KHz (Min./Max.) | 1080/1490V (Max.)(Ta=+25/-30℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-02(8.0)VS-1N | 1 pcs | 2 pins | 8.0 mm | BLL-2PINS-LH | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.)(VCC) | 220mA (Typ.)(ICC) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| IRISO | IMSA-9637S-33Y902 | 1 pcs | 33 pins | 0.5 mm | DRGB-33P1C6B-050A | |
LQ057V3DG01 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.6(H)×13.5(D) mm, viewing area size of 121.0(W)×92.2(H) mm, with surface treament of Antiglare, net weight of 250g (Max.). As a TN, Normally White, Transmissive LCM product, LQ057V3DG01 can provides 400 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/70 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 8/21 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed.
