Product Details:
|
| Panel Model: | LQ065T5AR05 | Panel Size: | 6.5INCH |
|---|---|---|---|
| Brightness: | 420 Cd/m² (Typ.) | Lamp Type: | 1 Pcs CCFL , 10K Hours , With Inverter |
| Resolution: | 400(RGB)×234, 71PPI | Signal Interface: | Analog , 30 Pins Connector |
| Panel Type: | A-Si TFT-LCD, LCM | Environment: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C ; Vibration Level: 2.9G (28.4 M/s²) |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||

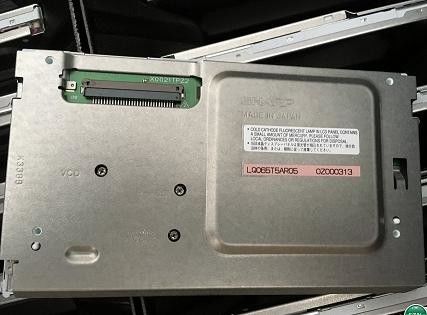

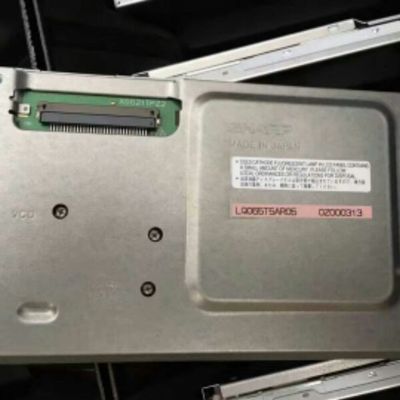

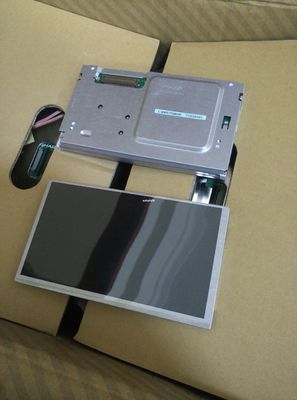

LQ065 Series LQ065T5AR06 LQ065T5AR05
| Pixel Features : | Resolution | 400(RGB)×234 | Dot Pitch(mm) | 0.1195×0.339 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.3585×0.339 (H×V) [71PPI] | |
| Mechanical Size : | Active Area(mm) | 143.4(H) × 79.326(V) | Bezel Area(mm) | 145.65(H) × 80.95(V) |
| Outline Dim.(mm) | 155(H) × 89.2(V) | Depth(mm) | 16.0 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting holes | |||
| Other Spec : | Weight | 240g | Treatment | Antiglare, Antireflection |
| Basic Information : | Luminance(cd/m²) | 420 (Typ.) | Contrast Ratio | 100:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 50/50/35/55 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 30/50 (Typ.)(CR≥10) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | Full color |
| Color Temperature | 6485K | White Uniformity | - |
| Signal Electrical : | Voltage Supply | 12.0V (Typ.)(VIN) | Current Supply | 700/900mA (Typ./Max.) | ||
|---|---|---|---|---|---|---|
| Consumption | 8.4/10.8W (Typ./Max.) | |||||
| Signal Type : | Analog | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| Kyocera Elco | 00-6200-530-480-111 | 1 pcs | 30 pins | 1.0 mm | ||
| Backlight Features: | Shape | U shape | Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1 pcs | Life Time | 10K(Min.) (Hours) | |
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | With Inverter | |||||
| Driver Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | - | ||
LQ065T5AR05 supports display 400(RGB)×234 with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 143.4(W)×79.326(H) mm, outline size of 155(W)×89.2(H) mm, viewing area size of 145.65(W)×80.95(H) mm, with surface treament of Antiglare, Antireflection, net weight of 240g. As a TN, Normally White, Transmissive LCM product, LQ065T5AR05 can provides 420 cd/m² display brightness 100:1 transimissive contrast ratio, 50/50/35/55 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/50 (Typ.)(CR≥10) ms., thus presenting a palette of Full color colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, With Inverter.
