Product Details:
|
| Brand: | Sharp | Model: | LQ065T5AR06 |
|---|---|---|---|
| Interface Type: | TFT Specific Analog RGB | Light Source: | CCFL [1 Pcs] |
| Diagonal Size: | 6.5 Inch | Luminance: | 420 Cd/m² (Typ.) |
| Pixel Format: | 400(RGB)×234 71PPI | Type: | A-Si TFT-LCD, LCM |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||

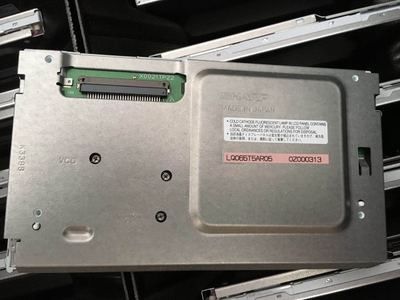

LQ065 Series LQ065T5AR06 LQ065T5AR05
| Basic Detail : | Manufacturer | SHARP | Model Name | LQ065T5AR06 |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 6.5 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | - | ST Temperature | - |
| Vibration Level | - | RoHS |
| Basic Information : | Luminance | 420 cd/m² (Typ.) | Contrast Ratio | 250 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | - | Response Speed | - | |
| Viewing Angle | - | Operating Mode | Transmissive | |
| Color Performance : | Chromaticity | - | Support Color | Full color |
| Pixel Features : | Number of Pixel | 400(RGB)×234 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.1195×0.339 mm | Pixel Pitch(W×H) | 0.3585×0.339 mm [71PPI] | |
| Physical Size : | Active Viewing | 143.4(W)×79.326(H) mm | Overall Dim. | 155(W)×89.2(H) mm |
| Bezel Opening | - | Overall Depth | 16.0 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style |
