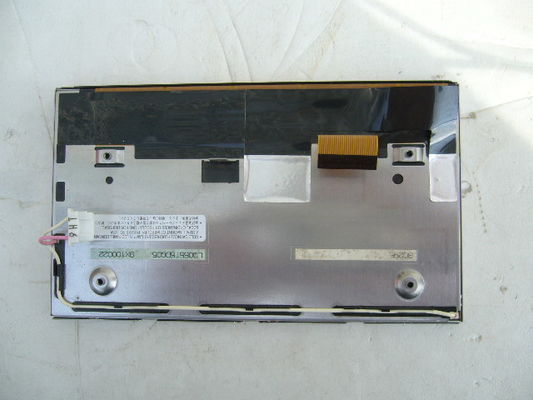

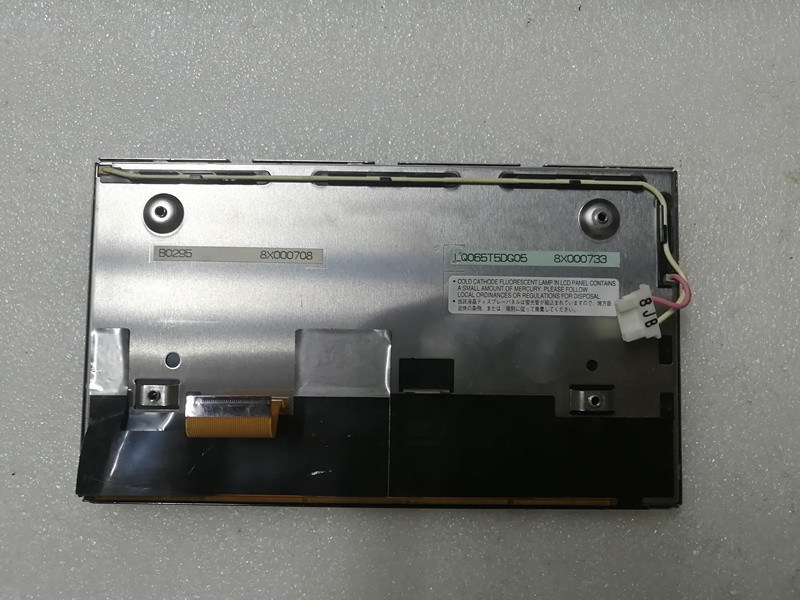

Product Details:
|
| Model: | LQ065T5DG01 | Brand: | Sharp |
|---|---|---|---|
| Configuration: | RGB Vertical Stripe | Luminance: | 500 Cd/m² (Typ.) |
| Diagonal Size: | 6.5 Inch | Pixel Format: | 480(RGB)×234 82PPI |
| Light Source: | CCFL [1 Pcs] , 7K Hours , W/O Driver | Environment: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
LQ065 Series LQ065T5DG05 LQ065T5DG04 LQ065T5DG01
| Pixel Features : | Resolution | 480(RGB)×234 | Dot Pitch(mm) | 0.100×0.339 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.300×0.339 (H×V) [82PPI] | |
| Mechanical Size : | Active Area(mm) | 144(H) × 79.326(V) | Bezel Area(mm) | - |
| Outline Dim.(mm) | 157.6(H) × 90.8(V) | Depth(mm) | 7.8 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 230g | Treatment | - |
| Basic Information : | Luminance(cd/m²) | 500 (Typ.) | Contrast Ratio | 100:1 (Min.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 55/55/55/30 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 12 o'clock | Response(ms) | 30/50 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | 1.43 (Max.)(5 points) |
| Signal Electrical : | Voltage Supply | 3.3/9.0V (Typ.)(VCC/VDC) | Current Supply | 2.4/40mA (Typ.)(ICC/IDC) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | GND≤VIL≤0.2VCC; 0.8VCC≤VIH≤VCC | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 40 pins | 0.5 mm | DRGB-40P1C6B-090A | |||
| Backlight Features: | Shape | - | Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 1 pcs | Life Time | 7K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 590/660/730V (Min./Typ./Max.) | Current Supply | 6.0±0.5mA | ||
| Frequency | - | Startup Voltage | 1800/1850V (Max.)(Ta=+25/-30℃) | |||
| Consumption | 3.96W (Typ.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHR-02(8.0)VS-1N | 1 pcs | 2 pins | 8.0 mm | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
LQ065T5DG01 supports display 480(RGB)×234 with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 144(W)×79.326(H) mm, outline size of 157.6(W)×90.8(H) mm, net weight of 230g. As a TN, Normally White, Transmissive LCM product, LQ065T5DG01 can provides 500 cd/m² display brightness 100:1 transimissive contrast ratio, 55/55/55/30 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 30/50 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 7K hours, external backlight driver is additionally needed.
