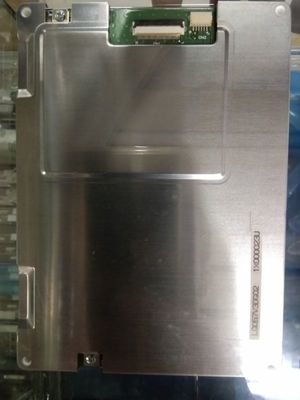

Product Details:
|
| Model: | LQ057V3DG02 | Brand: | Sharp |
|---|---|---|---|
| Diagonal Size: | 5.7 Inch | Luminance: | 400 Cd/m² (Typ.) |
| Pixel Format: | 640(RGB)×480 [VGA] 141PPI | Interface Type: | Parallel RGB (1 Ch, 6-bit) , 33 Pins Connector |
| Light Source: | WLED , 50K Hours , With LED Driver | Environment: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
LQ057 Series LQ057V3LG11 LQ057V3DG02 LQ057V3DG01
| Pixel Features : | Resolution | 640(RGB)×480, VGA | Dot Pitch(mm) | 0.060×0.180 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.180×0.180 (H×V) [141PPI] | |
| Mechanical Size : | Active Area(mm) | 115.2(H) × 86.4(V) | Bezel Area(mm) | 120.0(H) × 91.2(V) |
| Outline Dim.(mm) | 144(H) × 104.6(V) | Depth(mm) | 12.3/13.5 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting holes (4 pcs) | |||
| Other Spec : | Weight | 250g (Max.) | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/70 (Typ.)(CR≥5) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 12 o'clock | Response(ms) | 8/21 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | - |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.)(VCC) | Current Supply | 220mA (Typ.)(ICC) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| IRISO | IMSA-9637S-33Y902 | 1 pcs | 33 pins | 0.5 mm | DRGB-33P1C6B-020E | |
| Backlight Features: | Shape | - | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | - | Life Time | 50K(Typ.) (Hours) | |
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration  |
| JST | SM06B-SRSS-TB(LF)(SN) | 1 pcs | 6 pins | 1.0 mm | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Voltage Supply | 12.0V (Typ.) | Current Supply | 300mA (Typ.) | ||

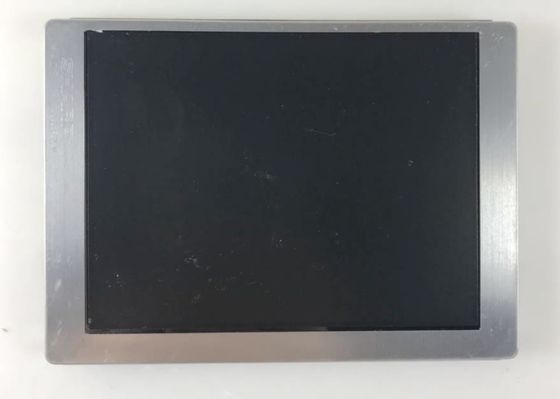

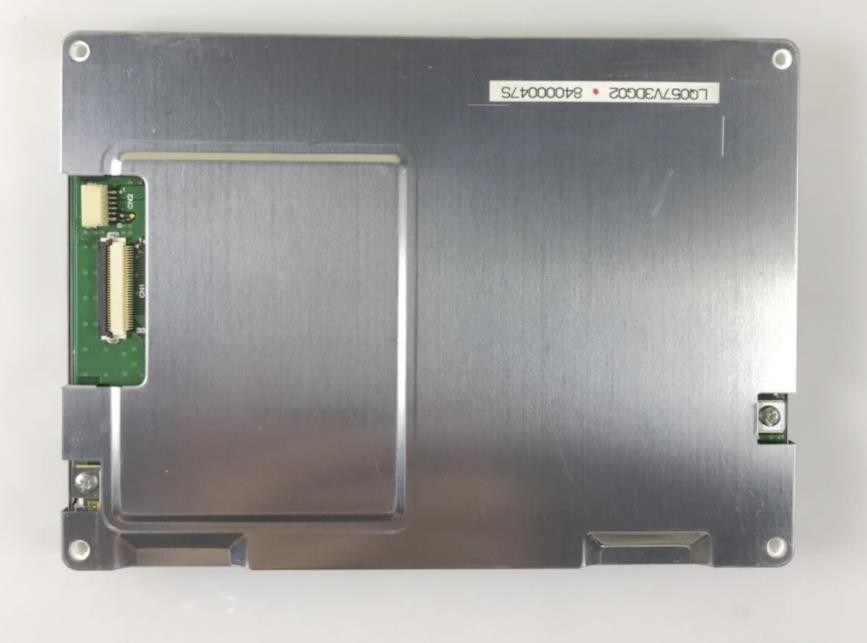

LQ057V3DG02 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.6(H)×13.5(D) mm, viewing area size of 120.0(W)×91.2(H) mm, with surface treament of Antiglare, net weight of 250g (Max.). As a TN, Normally White, Transmissive LCM product, LQ057V3DG02 can provides 400 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/70 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 8/21 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver.
