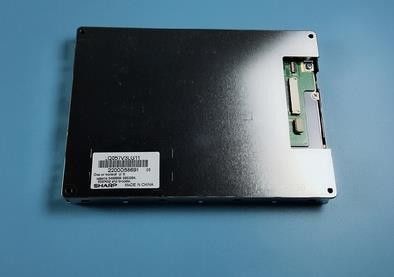

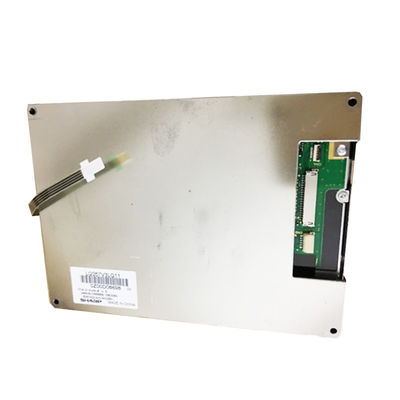

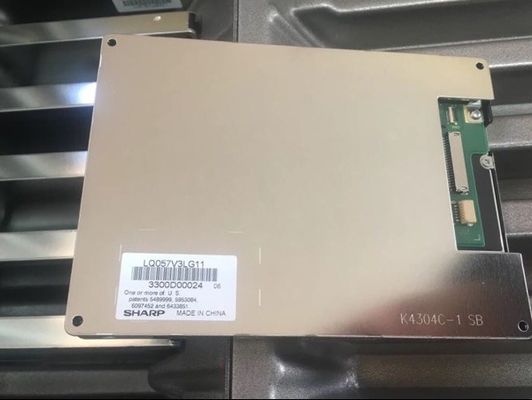

Product Details:
|
| Manufacturer: | SHARP | Model Name: | LQ057V3LG11 |
|---|---|---|---|
| Luminance: | 350 Cd/m² (Typ.) | Screen Size: | 5.7 Inch |
| Signal Type: | LVDS (1 Ch, 6-bit) , 20 Pins Connector | Backlight: | WLED , With LED Driver |
| Pixel Number: | 640(RGB)×480 (VGA) 141PPI | Max. Ratings: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
LQ057 Series LQ057V3LG11 LQ057V3DG02 LQ057V3DG01
| Basic Detail : | Manufacturer | SHARP | Model Name | LQ057V3LG11 |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 5.7 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| Vibration Level | 2.0G (19.6 m/s²) | RoHS |
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 12 o'clock | Response Speed | 30 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | - |
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.060×0.180 mm | Pixel Pitch(W×H) | 0.180×0.180 mm [141PPI] | |
| Physical Size : | Active Viewing | 115.2(W)×86.4(H) mm | Overall Dim. | 144(W)×104.6(H) mm |
| Bezel Opening | 121.0(W)×92.2(H) mm | Overall Depth | 12.3±0.5 mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Rear mounting holes (4 pcs) | |||
| Other Detail : | Mass | 190g (Max.) | Surface | Antiglare, Hard coating (2H) |
| Signal Electrical : | Input Current | 100/150mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | LVDS (1 ch, 6-bit) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF19L-20P-1H | 1 pcs | 1.0 mm | 20 pins | LVDS-20P1C6B-010C | |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 2.3W (Typ.) |
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | - | Life | - | |
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | SM06B-SRSS-TB(LF)(SN) | 1 pcs | 1.0 mm | 6 pins | ||
| Backlight Driver : | With LED Driver | |||||
| Driver Electrical : | Input Current | 150mA (Typ.) | Input Voltage | 12.0V (Typ.) | ||
LQ057V3LG11 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.6(H)×12.8(D) mm, viewing area size of 121.0(W)×92.2(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 190g (Max.). As a TN, Normally White, Transmissive LCM product, LQ057V3LG11 can provides 350 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 30 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type, With LED Driver.
