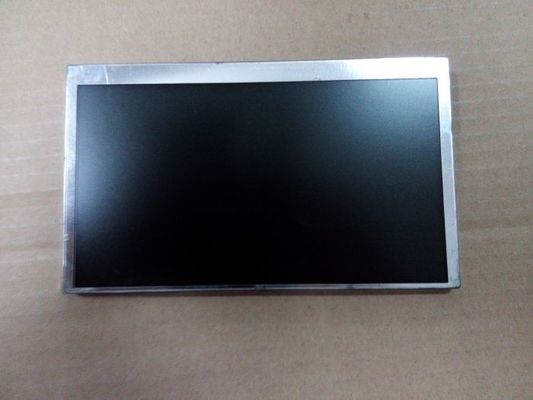

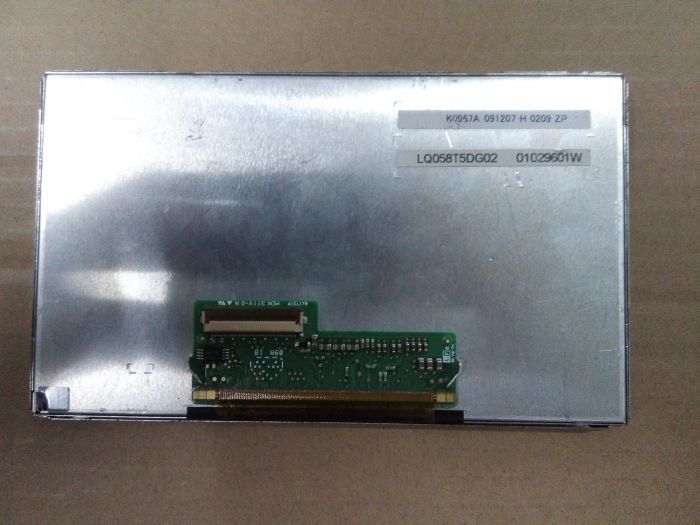

Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ058T5DG02 |
|---|---|---|---|
| Brightness: | 420 Cd/m² (Typ.) | Outline Size: | 139(W)×82.7(H) Mm |
| Display Area: | 128.4(W)×70.92(H) Mm | Panel Size: | 5.8INCH |
| Resolution: | 480(RGB)×240, WQVGA, 92PPI | Environment: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C |
| Lamp Type: | WLED | Signal Interface: | Parallel RGB (1 Ch, 6-bit) |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
LQ058 Series LQ058T5DG31 LQ058T5DG02
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LQ058T5DG02 | a-Si TFT-LCD , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| - | -30 ~ 85 °C | -40 ~ 85 °C | - |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 420 (Typ.) | - | - | |
| Best View on | Display Mode | Contrast Ratio | |
| - | Transmissive | - | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | 262K (6-bit) | - |
| Panel Size : | 5.8" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 480(RGB)×240 [WQVGA] | RGB Vertical Stripe | 0.2675×0.2955 [92PPI] | 0.0892×0.2955 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 128.4(H) × 70.92(V) | - | 139(H) × 82.7(V) | 6.0 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 16:9 (H:V) | ||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 120g (Max.) | - | - | ||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
