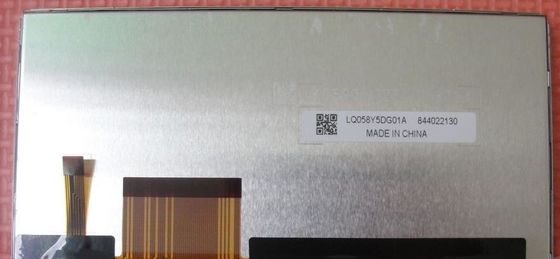

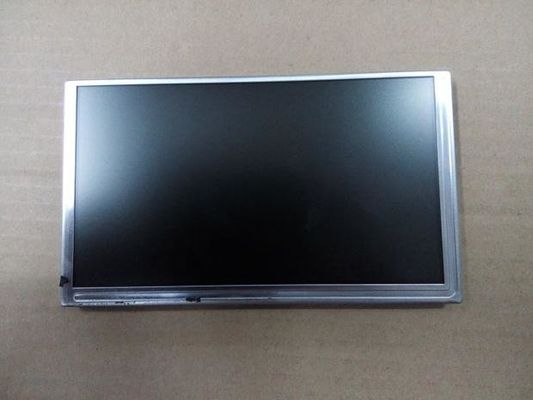

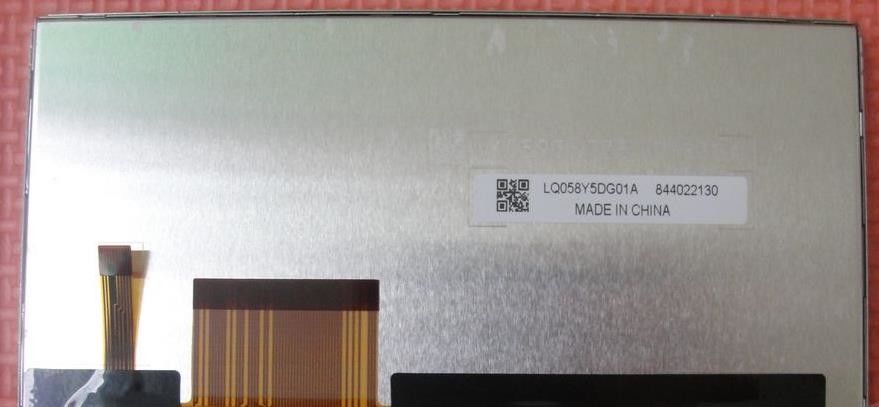

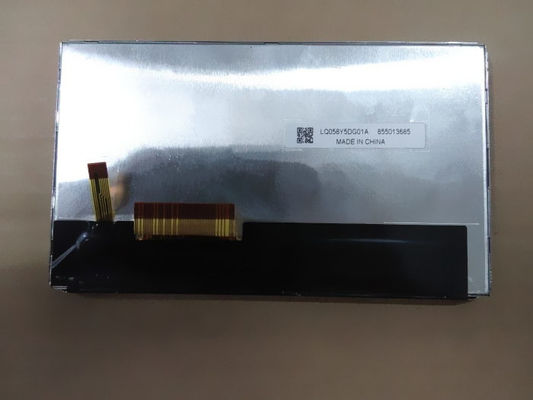

Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ058Y5DG30 |
|---|---|---|---|
| Panel Size: | 5.8INCH | Pixel Format: | RGB Vertical Stripe |
| Resolution: | 800(RGB)×480, WVGA, 160PPI | Brightness: | 360 Cd/m² (Typ.) |
| Lamp Type: | 2 Strings WLED , 10K Hours , Without Driver | Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 60 Pins FPC |
| Panel Type: | A-Si TFT-LCD , LCM | Environment: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C ; Vibration Level: 4.4G (43.2 M/s²) |
| Highlight: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
LQ058 Series LQ058Y5DG30 LQ058Y5DG01
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LQ058Y5DG30 | a-Si TFT-LCD , LCM | - | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -30 ~ 85 °C | -40 ~ 85 °C | 4.4G (43.2 m/s²) |
| Screen Size : | 5.8" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.0535×0.1505 mm | 0.1605×0.1505 mm [160PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 128.4×72.24 mm | 130.6×73.75 mm | 141.1×82.9 mm | 9.7 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Touch Panel : | Touch Points | Signal Type | Controller | Technology |
| - | - | Without touch controller | 4-wire Resistive Touch | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 155g (Max.) | - | Antiglare, Antireflection | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 360 cd/m² (Typ.) | TN, Normally White, Transmissive | 150:1 (Min.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 65/65/55/65 (Typ.)(CR≥10) | 20/30 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6438K | 262K (6-bit) | X:0.313; Y:0.335 | |
| White Uniformity : | 1.43 (Max.)(9 points) | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 3.1W (Typ.) |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 10K(Min.) | 2 strings | 2 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 16.4/17.5/19.7V (Min./Typ./Max.) | 150/160mA (Typ./Max.) | 2.95W (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | FPC | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 10 pins | 0.5 mm | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.3/3.3/15/-12V (Typ.)(VSHA/VSHD/VDD/VEE) | 26/15/0.2/0.2mA (Typ.)(ISHA/ISHD/IVDD/IEE) | - | ||||
| Voltage for Display Signals : | GND≤VIL≤0.2VSHD; 0.8VSHD≤VIH≤VSHD | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 6-bit) | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 60 pins | 0.5 mm | ||||
LQ058Y5DG30 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 128.4(W)×72.24(H) mm, outline size of 141.1(W)×82.9(H) mm, viewing area size of 130.6(W)×73.75(H) mm, with surface treament of Antiglare, Antireflection, net weight of 155g (Max.). As a TN, Normally White, Transmissive LCM product, LQ058Y5DG30 can provides 360 cd/m² display brightness 150:1 transimissive contrast ratio, 65/65/55/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
