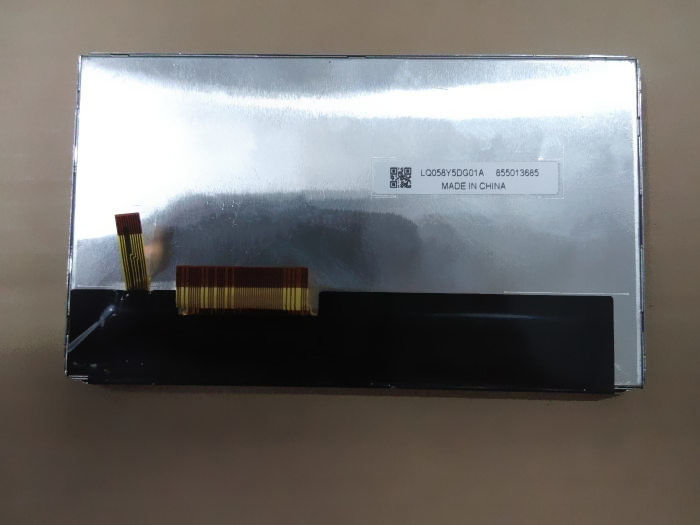

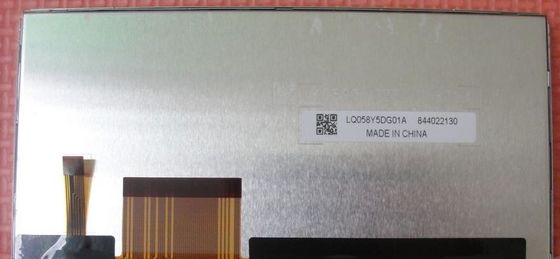

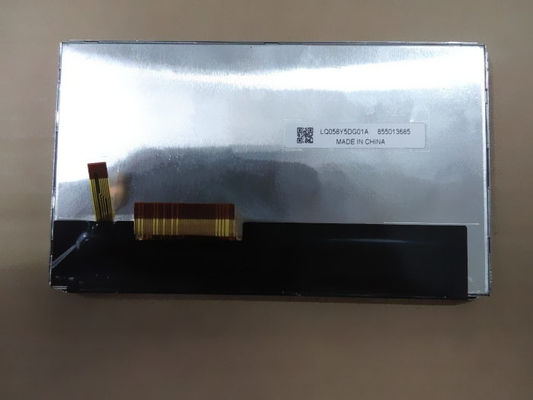

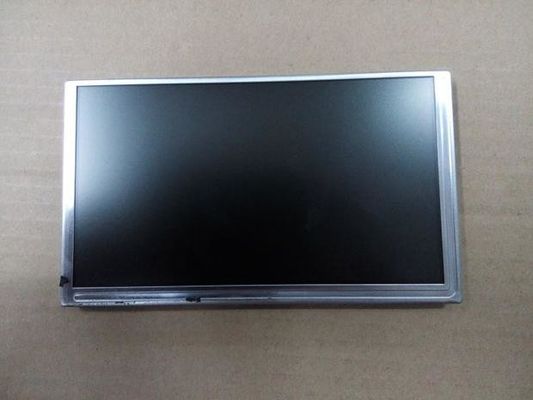

Product Details:
|
| Model: | LQ058Y5DG01 | Brand: | Sharp |
|---|---|---|---|
| Pixel Format: | 800(RGB)×480 [WVGA] 160PPI | Diagonal Size: | 5.8 Inch |
| Light Source: | WLED [2 Strings] , W/O Driver | Interface Type: | Parallel RGB (1 Ch, 6-bit) , 60 Pins FPC |
| Configuration: | RGB Vertical Stripe | Environment: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C ; Vibration Level: 4.4G (43.2 M/s²) |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
LQ058 Series LQ058Y5DG30 LQ058Y5DG01
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.0535×0.1505 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.1605×0.1505 mm (H×V) [160PPI] | |
| Mechanical Size : | Display Area | 128.4×72.24 mm (H×V) | Bezel Area | 130.6×73.75 mm (H×V) |
| Outline Dim. | 141.1×82.9 mm (H×V) | Outline Depth | 7.2 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Other Features : | Weight | 140g (Max.) | Surface | Antiglare, Antireflection |
| Basic Information : | Brightness | - | Contrast Ratio | 100:1 (Min.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/55/65 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 20/30 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | - | Color Numbers | 262K (6-bit) |
| Color Temperature | - | White Uniformity | 1.43 (Max.)(9 points) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 3.1W (Typ.) |
| Back-light Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Life Time | - |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 2 strings | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | TBD | Current Input | TBD | ||
| Interface Features : | Type | FPC | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 10 pins | 1 pcs | ||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
