Product Details:
|
| Panel Model: | LQ060B3DW01 | Panel Brand: | SHARP |
|---|---|---|---|
| Panel Size: | 6.0INCH | Signal Interface: | Parallel RGB (1 Ch, 6-bit) + SPI FPC |
| Viewing Angle: | 80/80/80/80 (Typ.) | Resolution: | 768×128(RGB), 130PPI |
| Environment: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C | ||
| Highlight: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||

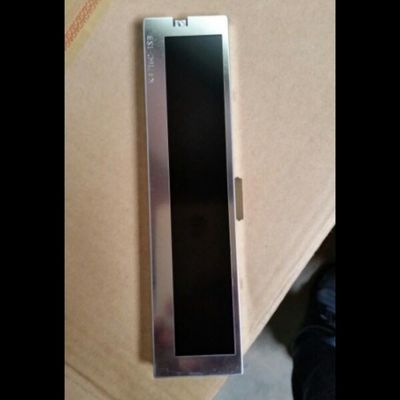

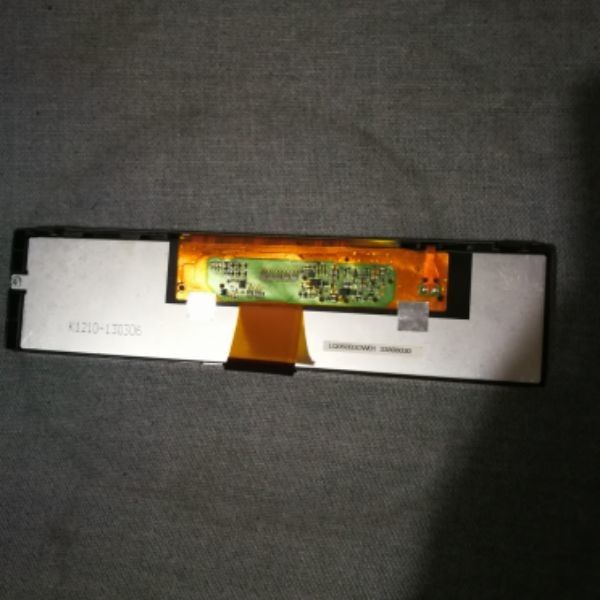

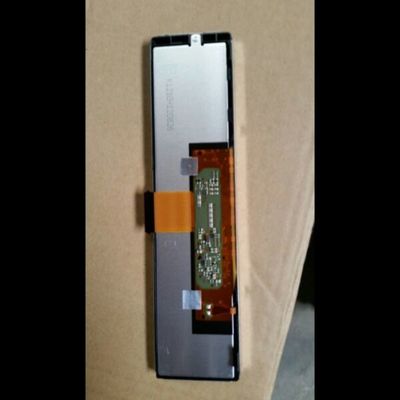

LQ060 Series LQ060B3DW02 LQ060B3DW01
| Basic Detail : | Manufacturer | SHARP | Model Name | LQ060B3DW01 |
|---|---|---|---|---|
| Panel Type | a-Si TFT-LCD , LCM | Another Name | - | |
| Panel Size | 6.0 inch | Designed For | ||
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
| Vibration Level | 1.0G (9.8 m/s²) | RoHS |
| Basic Information : | Luminance | - | Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | Symmetry | Response Speed | 5/10 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | ASV, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | - |
| Pixel Features : | Number of Pixel | 768×128(RGB) | Arrangement | RGB Horizontal Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.195×0.065 mm | Pixel Pitch(W×H) | 0.195×0.195 mm [130PPI] | |
| Physical Size : | Active Viewing | 149.76(W)×24.96(H) mm | Overall Dim. | 173.8(W)×42.1(H) mm |
| Bezel Opening | 153.94(W)×28.36(H) mm | Overall Depth | 7.6 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | >3:1 | Shape Style | ||
| Other Detail : | Mass | 76.0g | Surface | Antiglare, Hard coating (3H) |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
