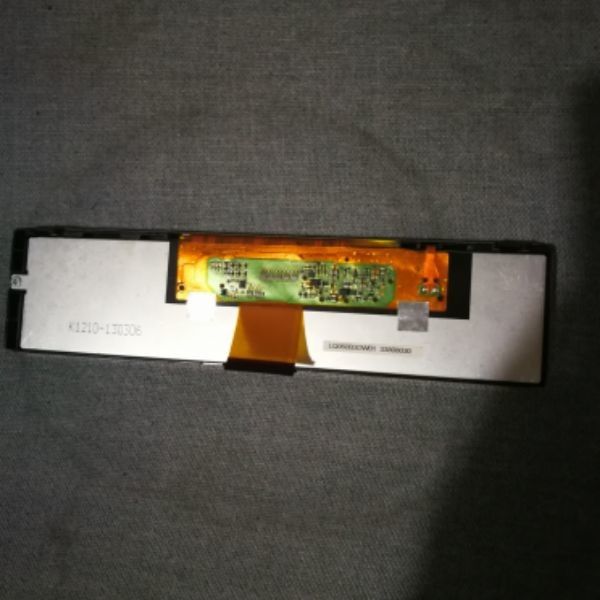

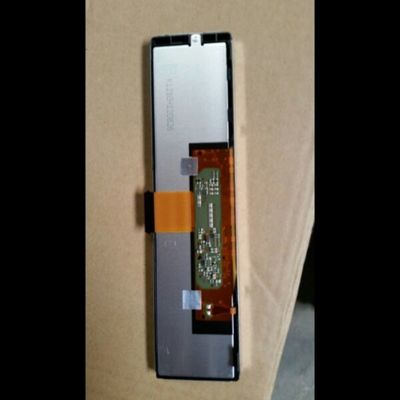

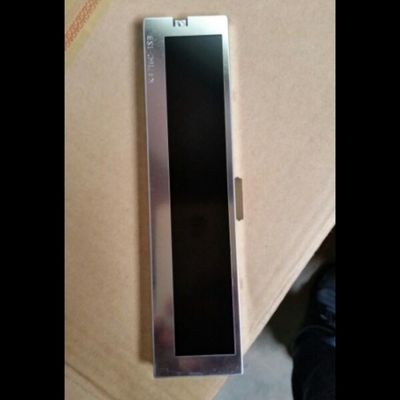

Product Details:
|
| Model: | LQ060B3DW02 | Brand: | Sharp |
|---|---|---|---|
| Light Source: | WLED [4S1P] , 50K Hours , W/O Driver | Interface Type: | Parallel RGB (1 Ch, 6-bit) + SPI , 40 Pins FPC |
| Luminance: | 240cd/m² | Diagonal Size: | 6.0 Inch |
| Pixel Format: | 768×128(RGB) 130PPI | Environment: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
| Highlight: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
LQ060 Series LQ060B3DW02 LQ060B3DW01
| Pixel Features : | Resolution | 768×128(RGB) | Dot Pitch(mm) | 0.195×0.065 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Horizontal Stripe | Pixel Pitch(mm) | 0.195×0.195 (H×V) [130PPI] | |
| Mechanical Size : | Active Area(mm) | 149.76(H) × 24.96(V) | Bezel Area(mm) | 153.94(H) × 28.36(V) |
| Outline Dim.(mm) | 173.8(H) × 42.1(V) | Depth(mm) | 7.6 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | >3:1 (H:V) | Orientation | Landscape type | |
| Other Spec : | Weight | 76.0g | Treatment | Antiglare, Hard coating (3H) |
| Basic Information : | Luminance(cd/m²) | 240 (Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Display Mode | ASV, Normally Black, Transmissive | |
| Best View on | Symmetry | Response(ms) | 5/10 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | - |
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 45/70mA (Typ.) | ||
|---|---|---|---|---|---|---|
| Consumption | 148.5mW (Typ.) | |||||
| Signal Type : | Parallel RGB (1 ch, 6-bit) + SPI | Signal Voltage | - | |||
| Interface Features : | Position | - | Type | FPC | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| 1 pcs | 40 pins | 0.5 mm | ||||
| Backlight Features: | Shape | 1 string | Type | WLED | Position | Edge light type |
|---|---|---|---|---|---|---|
| Replacement | No | Quantity | 4S1P | Life Time | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 12.8/14.4V (Typ./Max.) | Current Supply | 60/80mA (Typ./Max.) | ||
| Consumption | 768mW (Typ.) | |||||
| Interface Features : | Position | - | Type | Included in panel signal interface | ||
| Backlight Driver : | No | |||||
LQ060B3DW02 supports display 768×128(RGB) with aspect ratio of >3:1 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 149.76(W)×24.96(H) mm, outline size of 173.8(W)×42.1(H) mm, viewing area size of 153.94(W)×28.36(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 76.0g. As a ASV, Normally Black, Transmissive LCM product, LQ060B3DW02 can provides 240 cd/m² display brightness 700:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 5/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 4S1P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed.
