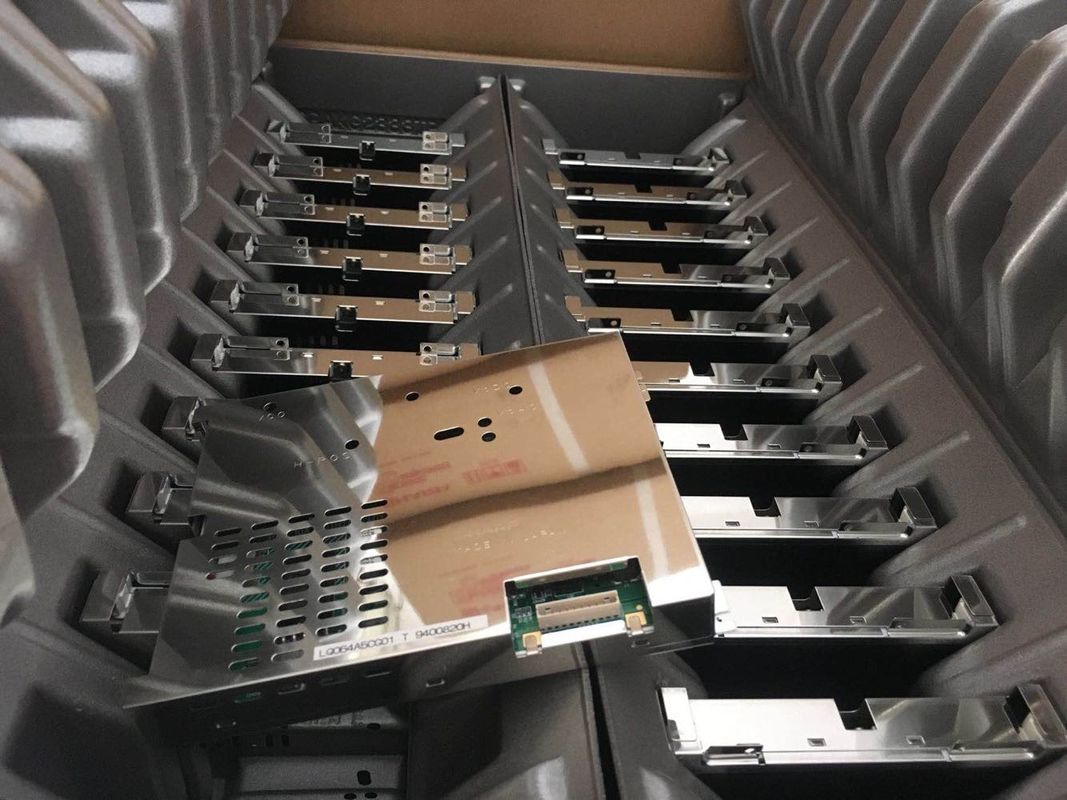

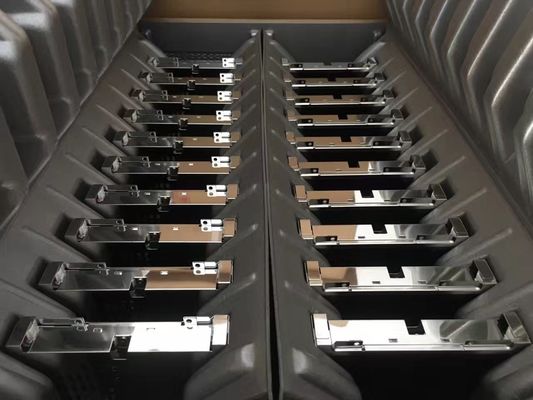

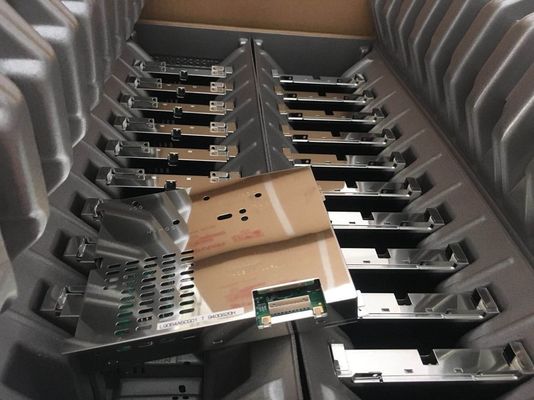

Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ064A5CG01 |
|---|---|---|---|
| Panel Size: | 6.4" | Brightness: | 350 Cd/m² (Typ.) |
| Lamp Type: | 1 Pcs CCFL , 10K Hours , With Inverter | Resolution: | 480(RGB)×234, 83PPI |
| Signal Interface: | Composite Video (PAL) , 10 Pins Connector | Environment: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 95 °C ; Vibration Level: 2.9G (28.4 M/s²) |
| Highlight: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 100 : 1 (Min.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 30/50 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 65/65/40/65 (Typ.)(CR≥5) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | Full color |
| Color Temperature | 6485K | White Uniformity | - |
| Pixel Features : | Number of Pixel | 480(RGB)×234 | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.090×0.417 mm | Pixel Pitch(W×H) | 0.270×0.417 mm [83PPI] | |
| Physical Size : | Active Viewing | 129.6(W)×97.6(H) mm | Overall Dim. | 153(W)×122(H) mm |
| Bezel Opening | - | Overall Depth | 21.0 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Other Detail : | Mass | 365±10g | Surface | - |
| Signal Electrical : | Input Current | - | Input Voltage | 13.8V (Typ.)(VIN) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Composite Video (PAL) | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| molex | 53014-1010 | 1 pcs | 2.0 mm | 10 pins | ||
| Lamp Features: | Lamp Shape | - | Lamp Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 10K(Min.) (Hours) | |
| Backlight Driver : | With Inverter | |||||
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
