Product Details:
|
| Manufacturer: | Sharp | Model Name: | LQ064V1DS11 |
|---|---|---|---|
| Luminance: | 300 Cd/m² (Typ.) | Pixel Number: | 640(RGB)×480 (VGA) 124PPI |
| Screen Size: | 6.4 Inch | Backlight: | 2 Pcs CCFL , 50K Hours , No Driver |
| Signal Type: | Parallel RGB (1 Ch, 6-bit) , Connector 30 Pins | Max. Ratings: | Storage Temp.: -25 ~ 70 °C Operating Temp.: 0 ~ 55 °C |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
LQ064 Series LQ064V3DG06 LQ064V3DG05 LQ064V3DG04 LQ064V3DG02 LQ064V3DG01 LQ064V1DS11
| Basic Information : | Luminance | 300 cd/m² (Typ.) | Contrast Ratio | 150 : 1 (Min.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 20/40 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 70/70/40/70 (Typ.)(CR≥5) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.325 | Support Color | 262K (6-bit) |
| Color Temperature | 6518K | White Uniformity | 1.45 (Max.)(5 points) |
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.068×0.202 mm | Pixel Pitch(W×H) | 0.204×0.202 mm [124PPI] | |
| Physical Size : | Active Viewing | 130.56(W)×96.96(H) mm | Overall Dim. | 178.8(W)×126.8(H) mm |
| Bezel Opening | - | Overall Depth | 12.0 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (4-Ф3.0) | |||
| Other Detail : | Mass | 275g (Max.) | Surface | Hard coating (3H), Antireflection |
| Signal Electrical : | Input Current | 250mA (Typ.)(ICC) | Input Voltage | 5.0V (Typ.)(VCC) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | VIL≤0.3VCC; 0.7VCC≤VIH | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | 30FLS-RSM1-TB | 1 pcs | 0.5 mm | 30 pins | DRGB-30P1C6B-030B | |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 2 pcs | Life | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 2.0/6.0/6.5mA (Min./Typ./Max.) | Input Voltage | 360V (Typ.) | ||
| Frequency | 20/35/60KHz (Min./Typ./Max.) | Turn-on Voltage | 800/1000V (Max.)(Ta=+25/0℃) | |||
| Consumption | 5.32W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-03VS-1 | 2 pcs | 4.0 mm | 3 pins | BLL-3PINS-HNL | |
| Backlight Driver : | No | |||||

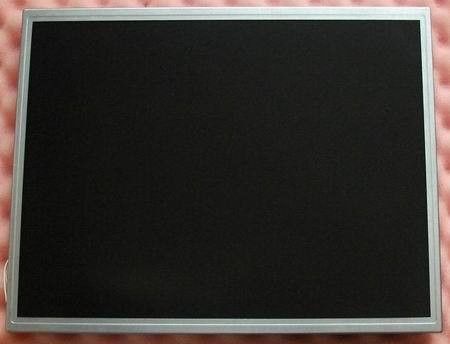

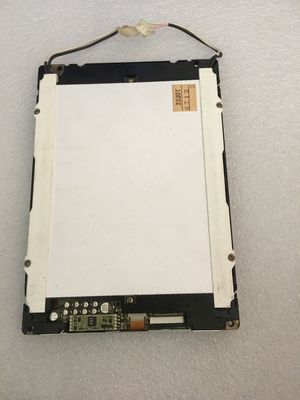

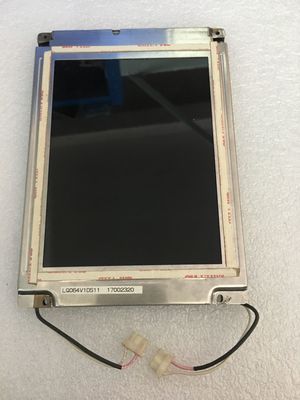

LQ064V1DS11 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 130.56(W)×96.96(H) mm, outline size of 178.8(W)×126.8(H) mm, with surface treament of Hard coating (3H), Antireflection, net weight of 275g (Max.). As a TN, Normally White, Transmissive LCM product, LQ064V1DS11 can provides 300 cd/m² display brightness 150:1 transimissive contrast ratio, 70/70/40/70 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20/40 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top and Bottom) and have a working life time of 50K hours, external backlight driver is additionally needed.
