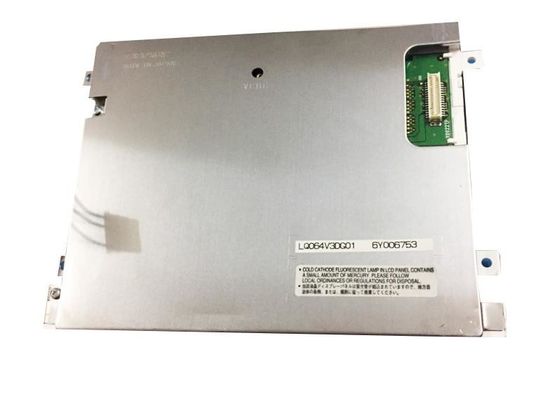

Product Details:
|
| Panel Model: | LQ064V3DG02 | Panel Brand: | Sharp |
|---|---|---|---|
| Brightness: | 325 Cd/m² (Typ.) | Panel Size: | 6.4INCH |
| Lamp Type: | 2 Pcs CCFL , 50K Hours , Without Driver | Resolution: | 640(RGB)×480, VGA, 124PPI |
| Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 31 Pins Connector | Environment: | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
LQ064 Series LQ064V3DG06 LQ064V3DG05 LQ064V3DG04 LQ064V3DG02 LQ064V3DG01 LQ064V1DS11
| Basic Information : | Luminance | 325 cd/m² (Typ.) | Contrast Ratio | 350 : 1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 12 o'clock | Response Speed | 8/21 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 70/70/70/40 (Typ.)(CR≥5) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | - |
| Pixel Features : | Number of Pixel | 640(RGB)×480 [VGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.068×0.204 mm | Pixel Pitch(W×H) | 0.204×0.204 mm [124PPI] | |
| Physical Size : | Active Viewing | 130.56(W)×97.92(H) mm | Overall Dim. | 161.3(W)×117(H) mm |
| Bezel Opening | 135.3(W)×103.0(H) mm | Overall Depth | 12.0 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 4:3 | Shape Style | ||
| Fixation : | Face mounting holes (4-Ф3.2) on left, right slugs | |||
| Other Detail : | Mass | 280g (Max.) | Surface | Antiglare |
| Signal Electrical : | Input Current | 290/200mA (Typ.)(ICC) | Input Voltage | 3.3/5.0V (Typ.)(VCC) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Logic Voltage for Signals : | -0.3V≤VIL≤0.9V; 2.3V≤VIH≤5.5V | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| HRS | DF9BA-31P-1V | 1 pcs | 1.0 mm | 31 pins | DRGB-31P1C6B-010K | |
| Lamp Features: | Lamp Shape | Straight | Lamp Type | CCFL | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 2 pcs | Life | 50K(Typ.) (Hours) | |
| Lamp Electrical : | Input Current | 10.0±1.0mA | Input Voltage | 370±40V | ||
| Frequency | 35/80KHz (Min./Max.) | Turn-on Voltage | - | |||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-04VS-1 | 1 pcs | 4.0 mm | 4 pins | BLL-4PINS-HHNL | |
| Backlight Driver : | No | |||||
LQ064V3DG02 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 130.56(W)×97.92(H) mm, outline size of 161.3(W)×117(H) mm, viewing area size of 135.3(W)×103.0(H) mm, with surface treament of Antiglare, net weight of 280g (Max.). As a TN, Normally White, Transmissive LCM product, LQ064V3DG02 can provides 325 cd/m² display brightness 350:1 transimissive contrast ratio, 70/70/70/40 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 8/21 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, external backlight driver is additionally needed.
