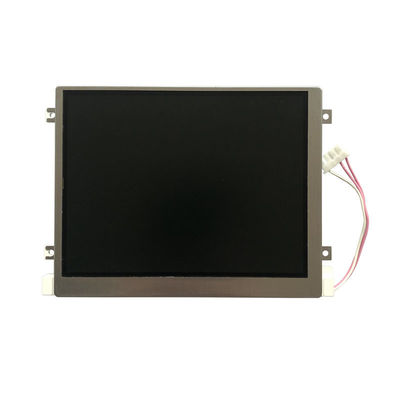

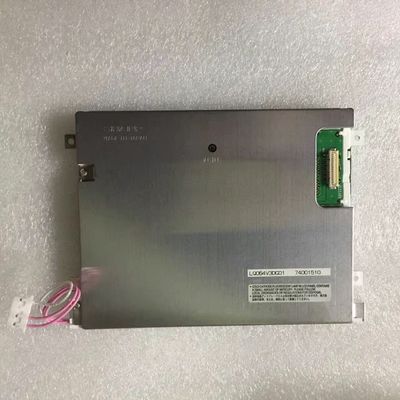

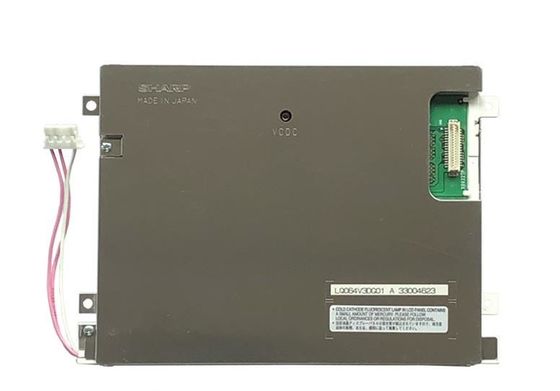

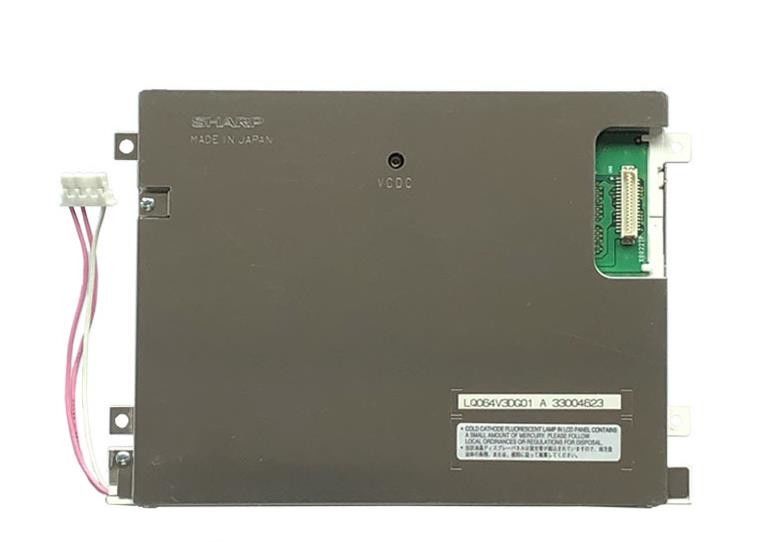

Product Details:
|
| Panel Model: | LQ064V3DG04 | Panel Brand: | SHARP |
|---|---|---|---|
| Brightness: | 290 Cd/m² (Typ.) | Panel Size: | 6.4INCH |
| Resolution: | 640(RGB)×480, VGA, 124PPI | Lamp Type: | 2 Pcs CCFL , Without Driver |
| Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 31 Pins Connector | Environment: | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
LQ064 Series LQ064V3DG06 LQ064V3DG05 LQ064V3DG04 LQ064V3DG02 LQ064V3DG01 LQ064V1DS11
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LQ064V3DG04 | a-Si TFT-LCD , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -30 ~ 80 °C | -30 ~ 80 °C | 2.0G (19.6 m/s²) |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 290 (Typ.) | 60/50/60/60 (Typ.)(CR≥5) | 6/25 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 3 o'clock | TN, Normally White, Transmissive | 350 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 |
| Panel Size : | 6.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 640(RGB)×480 [VGA] | RGB Vertical Stripe | 0.204×0.204 [124PPI] | 0.068×0.204 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 130.56(H) × 97.92(V) | 135.3(H) × 103.0(V) | 161.3(H) × 117(V) | 12.0 (Typ.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape / Portrait | 4:3 (H:V) | ||
| Mounting : | Face mounting holes (4-Ф3.2) on left, right slugs | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 280g (Max.) | - | Antiglare | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Bottom side) | 2 pcs | Straight | - | - | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 370±40V | 10.0±1.0mA | |||||
| Operating Frequency | Kick-off Voltage | |||||
| 35/80KHz (Min./Max.) | ||||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHR-04VS-1 | 4.0 mm | 4 pins | 1 pcs | BLL-4PINS-HHNL | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3/5.0V (Typ.)(VCC) | 290/200mA (Typ.)(ICC) | - | ||||
| Voltage for Display Signals : | -0.3V≤VIL≤0.9V; 2.3V≤VIH≤5.5V | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | DF9BA-31P-1V | 1.0 mm | 31 pins | 1 pcs | DRGB-31P1C6B-010K | |
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
