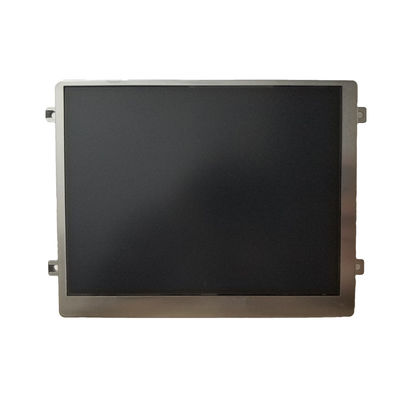

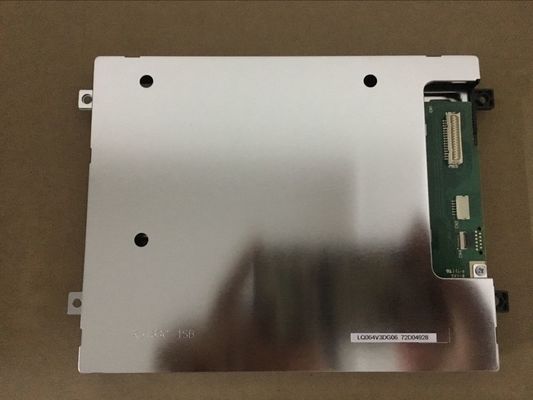

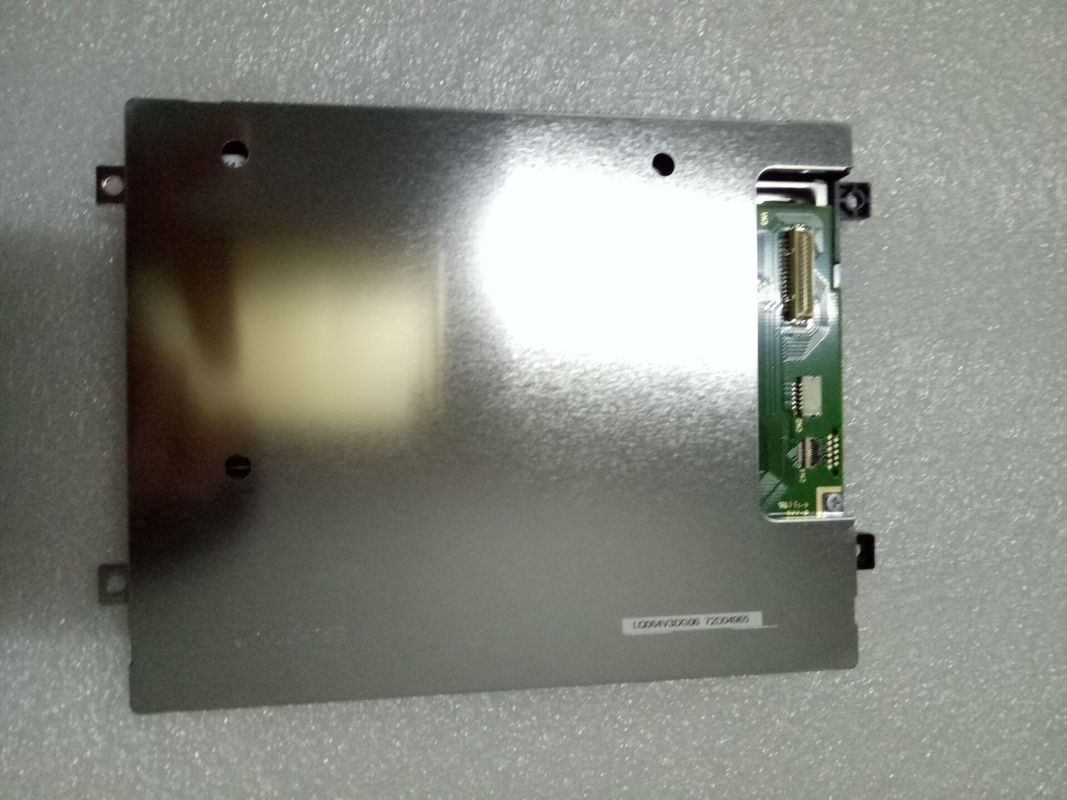

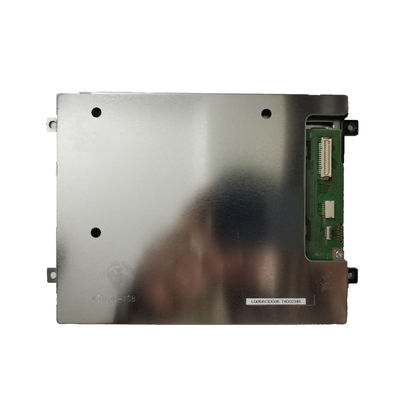

Product Details:
|
| Model: | LQ064V3DG06 | Brand: | Sharp |
|---|---|---|---|
| Light Source: | WLED , 50K Hours , With LED Driver | Interface Type: | Parallel RGB (1 Ch, 6-bit) , 31 Pins Connector |
| Diagonal Size: | 6.4 Inch | Luminance: | 350 Cd/m² (Typ.) |
| Pixel Format: | 640×480(RGB) [VGA] 124PPI | Environment: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| High Light: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
LQ064 Series LQ064V3DG06 LQ064V3DG05 LQ064V3DG04 LQ064V3DG02 LQ064V3DG01 LQ064V1DS11
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 350 (Typ.) | 70/70/40/70 (Typ.)(CR≥10) | 8/21 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 500 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6953K | 262K (6-bit) | X:0.307; Y:0.317 |
| Panel Size : | 6.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 640×480(RGB) [VGA] | RGB Horizontal Stripe | 0.204×0.204 [124PPI] | 0.204×0.068 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 130.56(H) × 97.92(V) | 135.3(H) × 103.0(V) | 161.3(H) × 117(V) | 12±0.5 mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Face mounting holes (4-Ф3.2) on left, right slugs | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 200g (Typ.) | - | Antiglare, Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 50K(Typ.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | SM10B-SHLS-TF | 1.0 mm | 10 pins | 1 pcs | ||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 12.0V (Typ.) | 225/290mA (Typ./Max.) | - | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 70/120mA (Typ./Max.) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | DF9BA-31P-1V(32) | 1.0 mm | 31 pins | 1 pcs | DRGB-31P1C6B-010K | |
LQ064V3DG06 supports display 640×480(RGB) (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 130.56(W)×97.92(H) mm, outline size of 161.3(W)×117(H)×12.5(D) mm, viewing area size of 135.3(W)×103.0(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 200g (Typ.). As a TN, Normally White, Transmissive LCM product, LQ064V3DG06 can provides 350 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/40/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 8/21 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, With LED Driver.
