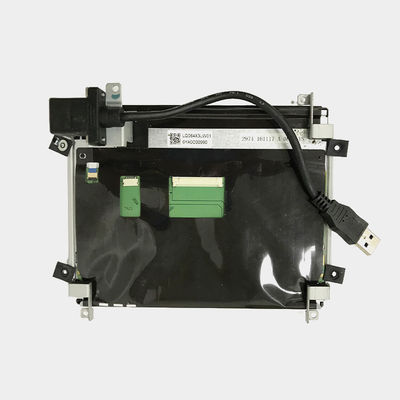

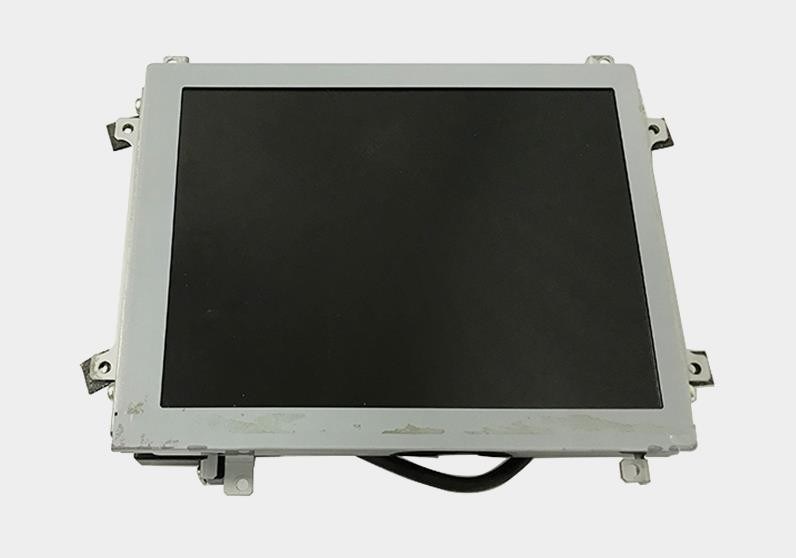

Product Details:
|
| Model: | LQ064X3LW01 | Brand: | Sharp |
|---|---|---|---|
| Luminance: | 350cd/m² | Diagonal Size: | 6.4 Inch |
| Light Source: | WLED , 70K Hours , With LED Driver | Interface Type: | LVDS (1 Ch, 8-bit) 20 Pins Connector |
| Pixel Format: | 1024(RGB)×768 [XGA] 200PPI | Environment: | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -25 ~ 70 °C |
| Highlight: | QVGA Sharp TFT LCD Display,Symmetry Sharp TFT Panel |
||
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 350 (Typ.) | 80/80/80/80 (Typ.)(CR≥10) | 35 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| Symmetry | ASV, Normally Black, Transmissive | 800 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6914K | 16.7M (8-bit) | X:0.305; Y:0.330 |
| Panel Size : | 6.4" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 1024(RGB)×768 [XGA] | RGB Vertical Stripe | 0.12675×0.12675 [200PPI] | 0.04225×0.12675 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 129.792(H) × 97.344(V) | - | 153.4(H) × 122(V) | 9.0/9.5 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
| Mounting : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 220g (Max.) | - | Hard coating (3H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | - | 70K(Typ.) | - | |
| Interface Features : | Position | Backlight Driver | Type | |||
| - | With LED Driver | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | SM06B-SHLS-TF | 1.0 mm | 6 pins | 1 pcs | ||
| Driver Electrical : | Voltage Supply | Current Supply | Power Consumption | |||
| 12.0±1.2V | 380/460mA (Typ./Max.) | - | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 230/360mA (Typ./Ma.) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| HRS | DF14A-20P-1.25H | 1.25 mm | 20 pins | 1 pcs | LVDS-20P1C8B-010A | |
LQ064X3LW01 supports display 1024(RGB)×768 (XGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 129.792(W)×97.344(H) mm, outline size of 153.4(W)×122(H)×9.5(D) mm, with surface treament of Hard coating (3H), net weight of 220g (Max.). As a ASV, Normally Black, Transmissive LCM product, LQ064X3LW01 can provides 350 cd/m² display brightness 800:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver.
