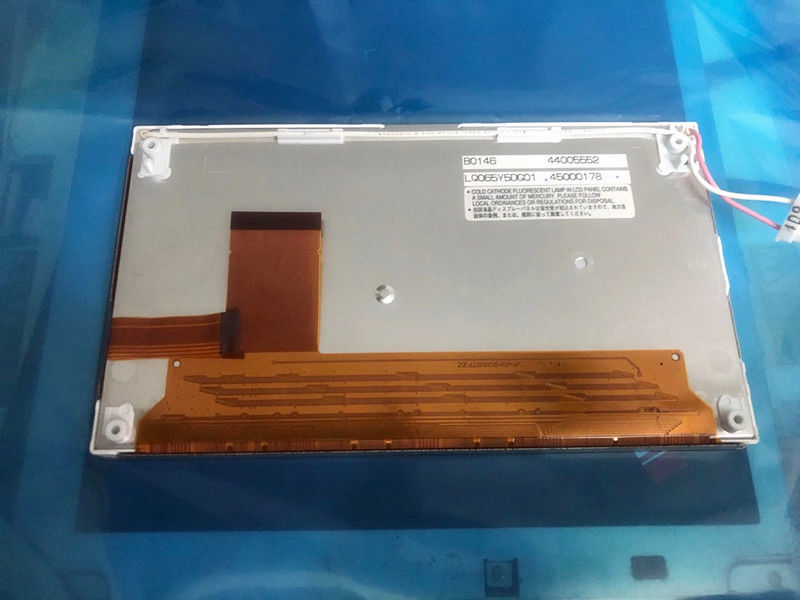

Product Details:
|
| Panel Model: | LQ065Y5DG01 | Panel Brand: | Sharp |
|---|---|---|---|
| Panel Size: | 6.5 | Brightness: | 380 Cd/m² (Typ.) |
| Resolution: | 800(RGB)×480, WVGA, 144PPI | Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 65 Pins FPC |
| Lamp Type: | 1 Pcs CCFL , 10K Hours , Without Driver | Environment: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C ; Vibration Level: 2.9G (28.4 M/s²) |
| Highlight: | CCFL Sharp TFT LCD Display,WLED LVDS TFT Touch Panel |
||
LQ065 Series LQ065Y5DG03 LQ065Y5DG01
| Basic Information : | Luminance | 380 cd/m² (Typ.) | Contrast Ratio | 100 : 1 (Min.) (Transmissive) |
|---|---|---|---|---|
| Good View at | 6 o'clock | Response Speed | 30/50 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 65/65/60/65 (Typ.)(CR≥5) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | - |
| Pixel Features : | Number of Pixel | 800(RGB)×480 [WVGA] | Arrangement | RGB Vertical Stripe |
|---|---|---|---|---|
| Dot Pitch(W×H) | 0.060×0.163 mm | Pixel Pitch(W×H) | 0.180×0.163 mm [144PPI] | |
| Physical Size : | Active Viewing | 144(W)×78.24(H) mm | Overall Dim. | 157.2(W)×89.7(H) mm |
| Bezel Opening | 149.3(W)×83.45(H) mm | Overall Depth | 8.4 (Typ.) mm | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 17:9 | Shape Style | ||
| Other Detail : | Mass | 185g (Max.) | Surface | Antiglare |
| Signal Electrical : | Input Current | 35/6/0.12/-0.03/0.03/-0.07mA (Typ.)(ISHA/IGHD/IDD/IEE/ICC/ISS) | Input Voltage | 5/3.3/15/-12/-14.4/-17.4V (Typ.)(VSHA/VGHD/VDD/VEE/VCC/VSS) | ||
|---|---|---|---|---|---|---|
| Consumption | - | Signal Interface | Parallel RGB (1 ch, 6-bit) | |||
| Interface Features : | Position | - | Physical Type | FPC | ||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| 1 pcs | 0.5 mm | 45 pins | ||||
| 1 pcs | 0.5 mm | 20 pins | ||||
| Lamp Features: | Lamp Shape | - | Lamp Type | CCFL | Position | Edge light type |
|---|---|---|---|---|---|---|
| Exchange | - | Amount | 1 pcs | Life | 10K(Min.) (Hours) | |
| Lamp Electrical : | Input Current | 4.0/4.5/5.5mA (Min./Typ./Max.) | Input Voltage | 710±70V | ||
| Frequency | 30/70KHz (Min./Max.) | Turn-on Voltage | 1750/1800V (Max.)(Ta=+25/-30℃) | |||
| Consumption | 3.2W (Typ.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | ||
| Interface Detail : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment |
| JST | BHR-02(8.0)VS-1N | 1 pcs | 8.0 mm | 2 pins | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
LQ065Y5DG01 supports display 800(RGB)×480 (WVGA) with aspect ratio of 17:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 144(W)×78.24(H) mm, outline size of 157.2(W)×89.7(H) mm, viewing area size of 149.3(W)×83.45(H) mm, with surface treament of Antiglare, net weight of 185g (Max.). As a TN, Normally White, Transmissive LCM product, LQ065Y5DG01 can provides 380 cd/m² display brightness 100:1 transimissive contrast ratio, 65/65/60/65 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/50 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
