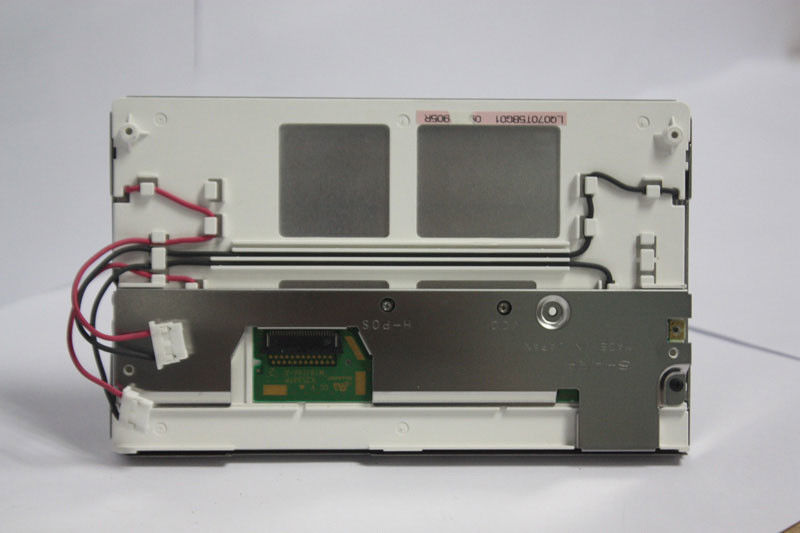

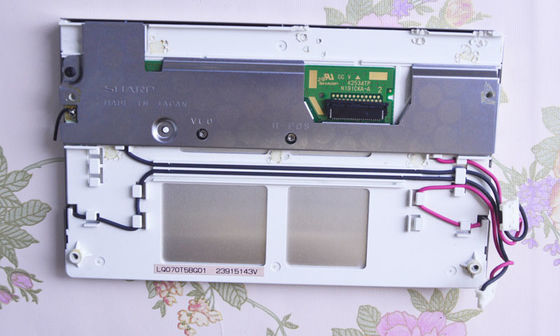

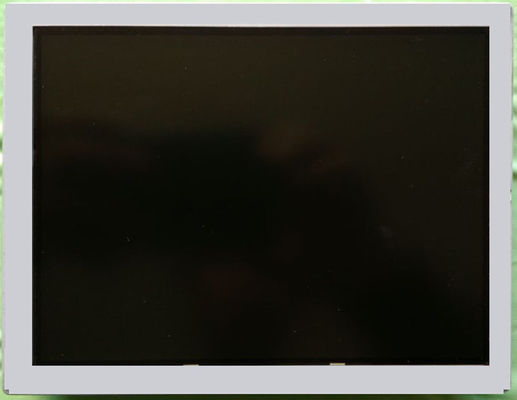

Product Details:
|
| Model Name: | LQ070T5BG01 | Manufacturer: | Sharp |
|---|---|---|---|
| Luminance: | 300 Cd/m² (Typ.) | Screen Size: | 7.0 Inch |
| Pixel Number: | 480(RGB)×234 75PPI | Signal Type: | Analog RGB + Composite Video (NTSC/PAL) , 24 Pins Connector |
| Backlight: | 2 Pcs CCFL , 10K Hours , No Driver | Max. Ratings: | Storage Temp.: -25 ~ 70 °C Operating Temp.: 0 ~ 65 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| High Light: | CCFL Sharp TFT LCD Display,WLED LVDS TFT Touch Panel |
||
LQ070 Series LQ070T5GG01C LQ070T5DR06 LQ070T5DR02 LQ070T5BG01
| Screen Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 480(RGB)×234 | RGB Vertical Stripe | 0.108×0.375 mm | 0.324×0.375 mm [75PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 155.52×87.75 mm | - | 173×106 mm | 14.7±0.5 mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 16:9 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 285±20g | - | Antiglare | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 300 cd/m² (Typ.) | TN, Normally White, Transmissive | 60:1 (Min.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 65/65/40/65 (Typ.)(CR≥5) | 30/50 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | Full color | X:0.313; Y:0.329 |
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 5.44W (Typ.) |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Direct light type | 10K(Min.) | 2 pcs | Straight | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 380±40V | 3.0/6.5/7.0mA (Min./Typ./Max.) | 5.0/5.9W (Typ.Max.) | ||||
| Operating Frequency | Startup Voltage | |||||
| 30/70KHz (Min./Max.) | 950/1100V (Max.)(Ta=+25/-10℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-02(8.0)VS-1N | 2 pcs | 2 pins | 8.0 mm | BLL-2PINS-HL | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 5.3/13/-16V (VSH/VGH/VGL) | 75/0/.1/2.3mA (ISH/IGH/IGL) | 443.6/558mW (Typ./Max.) | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Analog RGB + Composite Video (NTSC/PAL) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 24 pins | |||||
LQ070T5BG01 supports display 480(RGB)×234 with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 155.52(W)×87.75(H) mm, outline size of 173(W)×106(H)×15.2(D) mm, with surface treament of Antiglare, net weight of 285±20g. As a TN, Normally White, Transmissive LCM product, LQ070T5BG01 can provides 300 cd/m² display brightness 60:1 transimissive contrast ratio, 65/65/40/65 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/50 (Typ.)(Tr/Td) ms., thus presenting a palette of Full color colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Direct light type and have a working life time of 10K hours, external backlight driver is additionally needed.
