Product Details:
|
| Manufacturer: | Sharp | Model Name: | LQ070T5DR02 |
|---|---|---|---|
| Backlight: | 2 Pcs CCFL , 10K Hours , No Driver | Signal Type: | Parallel RGB (1 Ch, 6-bit) , 36 Pins Connector |
| Screen Size: | 7.0INCH | Luminance: | 400 Cd/m² (Typ.) |
| Pixel Number: | 480(RGB)×240 (WQVGA) 77PPI | Max. Ratings: | Storage Temp.: -40 ~ 85 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 M/s²) |
| Highlight: | CCFL Sharp TFT LCD Display,WLED LVDS TFT Touch Panel |
||
LQ070 Series LQ070T5GG01C LQ070T5DR06 LQ070T5DR02 LQ070T5BG01
| Basic Information : | Brand | SHARP | Model | LQ070T5DR02 |
|---|---|---|---|---|
| Type | LCM a-Si TFT-LCD | Used For | ||
| Screen Size | 7.0" | Alias | - | |
| Environment : | Storage Temp. | -40 ~~ 85 °C | Operating Temp. | -30 ~~ 85 °C |
| RoHS | - | Vibration | 2.9G (28.4 m/s²) |
| Pixel Features : | Resolution | 480(RGB)×240, WQVGA | Dot Pitch(mm) | 0.107×0.3625 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.321×0.3625 (H×V) [77PPI] | |
| Mechanical Size : | Active Area(mm) | 154.08(H) × 87(V) | Bezel Area(mm) | 159.1(H) × 91.9(V) |
| Outline Dim.(mm) | 170.1(H) × 103.4(V) | Depth(mm) | 15.2±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting holes (4-Φ2.05) | |||
| Other Spec : | Weight | 280g (Max.) | Treatment | Antiglare, Antireflection |
| Basic Information : | Luminance(cd/m²) | 400 (Typ.) | Contrast Ratio | 100:1 (Min.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/40/65 (Typ.)(CR≥5) | Display Mode | TN, Normally White, Transmissive | |
| Best View on | 6 o'clock | Response(ms) | 30/50 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | - |
| Signal Electrical : | Voltage Supply | 5/10/-10V (Typ.)(VSH/VGH/VGL) | Current Supply | 35/25/-22mA (Typ.)(ISH/IGH/IGL) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | VIL≤0.9V; 2.3V≤VIH | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | 36FLZ-RSM1-R-TB | 1 pcs | 36 pins | 0.5 mm | DRGB-36P1C6B-020A | |
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Bottom side) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 2 pcs | Life Time | 10K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 370±40V | Current Supply | 6.0±0.5mA | ||
| Frequency | 45/70KHz (Min./Max.) | Startup Voltage | 1300/1350V (Max.)(Ta=+25/-30℃) | |||
| Consumption | 4.5W (Typ.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHR-02(8.0)VS-1N | 2 pcs | 2 pins | 8.0 mm | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||

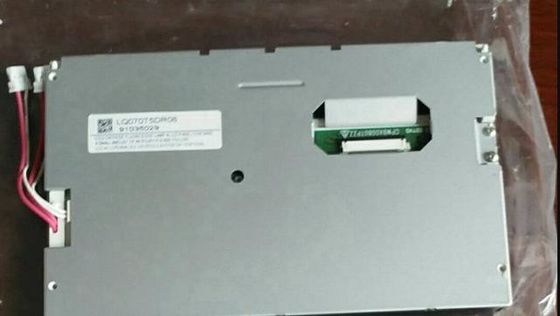

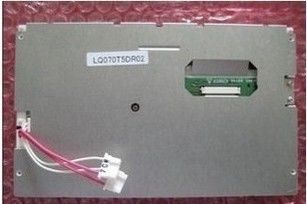

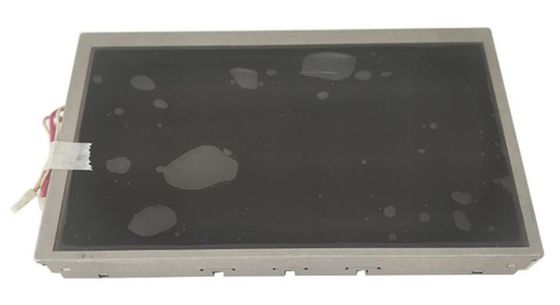

LQ070T5DR02 supports display 480(RGB)×240 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 154.08(W)×87(H) mm, outline size of 170.1(W)×103.4(H)×15.7(D) mm, viewing area size of 159.1(W)×91.9(H) mm, with surface treament of Antiglare, Antireflection, net weight of 280g (Max.). As a TN, Normally White, Transmissive LCM product, LQ070T5DR02 can provides 400 cd/m² display brightness 100:1 transimissive contrast ratio, 65/65/40/65 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/50 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 10K hours, external backlight driver is additionally needed.
