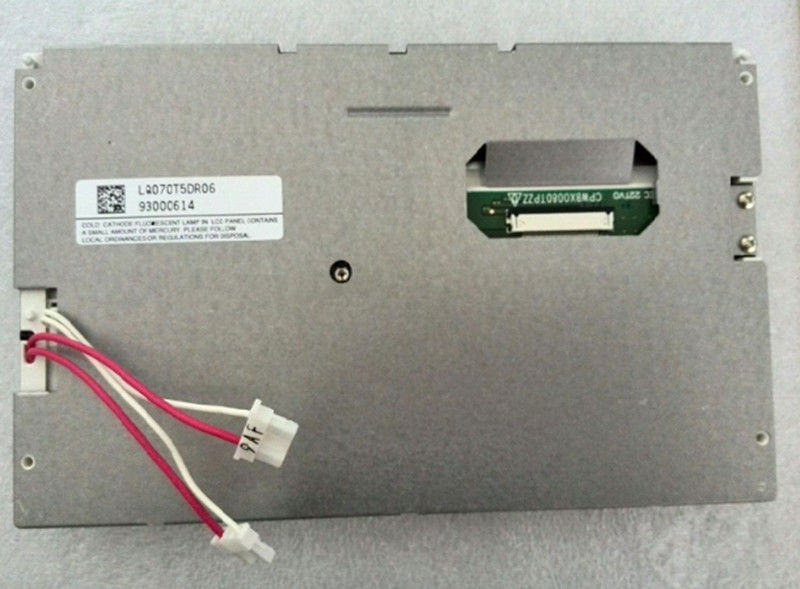

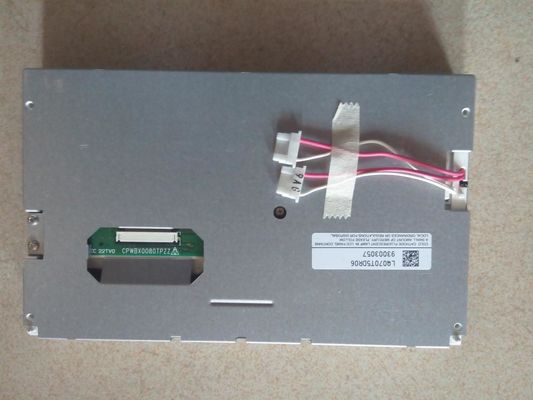

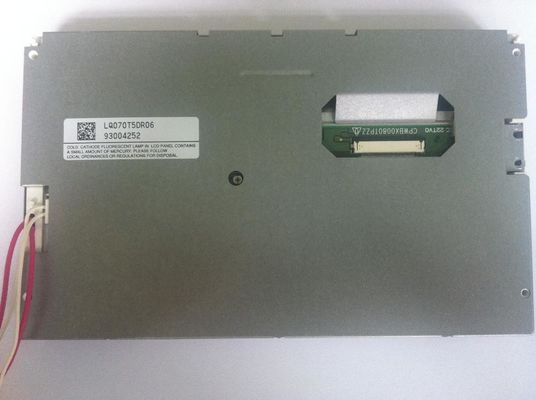

Product Details:
|
| Panel Brand: | Sharp | Panel Model: | LQ070T5DR06 |
|---|---|---|---|
| Brightness: | 400 Cd/m² (Typ.) | Panel Size: | 7.0INCH |
| Resolution: | 480(RGB)×240, WQVGA, 77PPI | Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 36 Pins Connector |
| Lamp Type: | 2 Pcs CCFL , 10K Hours , Without Driver | Environment: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C ; Vibration Level: 2.9G (28.4 M/s²) |
| Highlight: | CCFL Sharp TFT LCD Display,WLED LVDS TFT Touch Panel |
||
LQ070 Series LQ070T5GG01C LQ070T5DR06 LQ070T5DR02 LQ070T5BG01
| Pixel Features : | Pixel Format | 480(RGB)×240 [WQVGA] | Dot Pitch | 0.107×0.3625 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.321×0.3625 mm (H×V) [77PPI] | |
| Mechanical Size : | Display Area | 154.08×87 mm (H×V) | Bezel Area | 159.1×91.9 mm (H×V) |
| Outline Dim. | 170.1×103.4 mm (H×V) | Outline Depth | 15.2±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Rear mounting holes (4-Φ2.05) | |||
| Other Features : | Weight | 295g (Max.) | Surface | Antiglare, Antireflection |
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 100:1 (Min.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/40/65 (Typ.)(CR≥5) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 30/50 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | - |
| Back-light Features: | Lamp Shape | Straight | Lamp Type | CCFL | Life Time | 10K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 2 pcs | Position | Edge light type (Bottom side) | |
| Lamp Electrical : | Voltage Input | 370±40V | Current Input | 6.0±0.5mA | ||
| Frequency | 45/70KHz (Min./Max.) | Kick-off Voltage | 1300/1350V (Max.)(Ta=+25/-30℃) | |||
| Consumption | 4.5W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | BHR-02(8.0)VS-1N | 8.0 mm | 2 pins | 2 pcs | BLL-2PINS-HL | |
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | VIL≤0.9V; 2.3V≤VIH | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 5/10/-10V (Typ.)(VSH/VGH/VGL) | Current Input | 35/25/-22mA (Typ.)(ISH/IGH/IGL) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | 36FLZ-RSM1-R-TB | 0.5 mm | 36 pins | 1 pcs | DRGB-36P1C6B-020A | |
LQ070T5DR06 supports display 480(RGB)×240 (WQVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 154.08(W)×87(H) mm, outline size of 170.1(W)×103.4(H)×15.7(D) mm, viewing area size of 159.1(W)×91.9(H) mm, with surface treament of Antiglare, Antireflection, net weight of 295g (Max.). As a TN, Normally White, Transmissive LCM product, LQ070T5DR06 can provides 400 cd/m² display brightness 100:1 transimissive contrast ratio, 65/65/40/65 (Typ.)(CR≥5) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/50 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 10K hours, external backlight driver is additionally needed.
