Product Details:
|
| Panel Model: | LQ070Y3DG02 | Panel Brand: | Sharp |
|---|---|---|---|
| Resolution: | 800×480(RGB), WVGA, 133PPI | Panel Size: | 7.0INCH |
| Lamp Type: | 8S3P WLED , 10K Hours , Without Driver | Signal Interface: | Parallel RGB (1 Ch, 8-bit) , 51 Pins FPC |
| Brightness: | 280cd/m² | Environment: | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -30 ~ 70 °C |
| Highlight: | CCFL Sharp TFT LCD Display,WLED LVDS TFT Touch Panel |
||

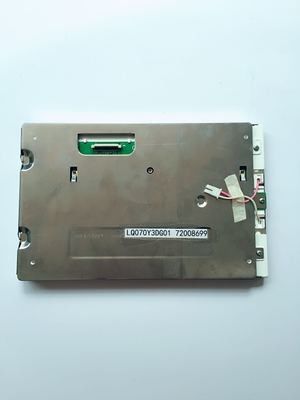

LQ070 Series LQ070Y3DG05 LQ070Y3DG03 LQ070Y3DG02 LQ070Y3DG01
| Screen Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 800×480(RGB), WVGA | RGB Horizontal Stripe | 0.1905×0.0635 mm | 0.1905×0.1905 mm [133PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 152.4×91.44 mm | - | 164.9×104 mm | 5.0/5.3 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 15:9 | Landscape type | ||
| Touch Panel : | Touch Points | Signal Type | Controller | Technology |
| - | - | Without touch controller | 4-wire Resistive Touch | |
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 160/175g (Typ./Max.) | - | Antiglare, Hard coating (3H) | ||
| Holes & Brackets : | Without | |||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 280 cd/m² (Typ.) | TN, Normally White, Transmissive | 450:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 65/65/50/60 (Typ.)(CR≥10) | 35 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| White Uniformity : | 1.10/1.30 (Typ./Max.)(5 points) | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 10K(Min.) | 8S3P | 3 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 25.6/28.0V (Typ./Max.) | 20mA (Typ.) | 1.54W (Typ.) | ||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | - | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 1.8/2.85V (Typ.)(VDDIO/VCI) | 10/45mA (Typ.)(IDDIO/IVCI) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VDDIO; 0.7VDDIO≤VIH≤VDDIO | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 8-bit) | FPC | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| 1 pcs | 51 pins | 0.3 mm | ||||

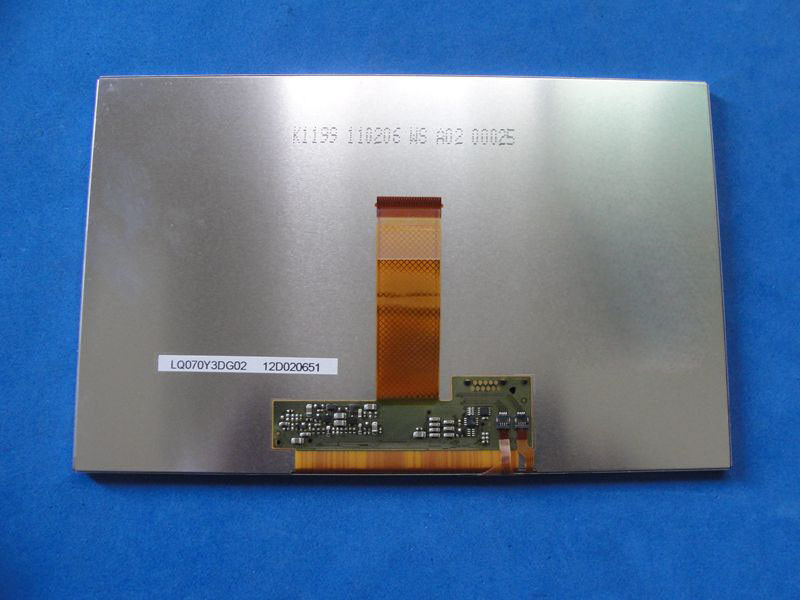

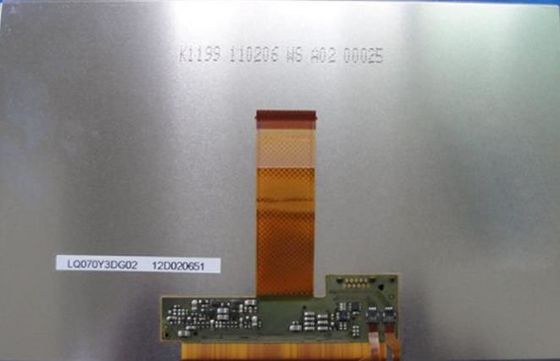

LQ070Y3DG02 supports display 800×480(RGB) (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 164.9(W)×104(H)×5.3(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 160/175g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, LQ070Y3DG02 can provides 280 cd/m² display brightness 450:1 transimissive contrast ratio, 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 48% (NTSC). This product adopted 8S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
