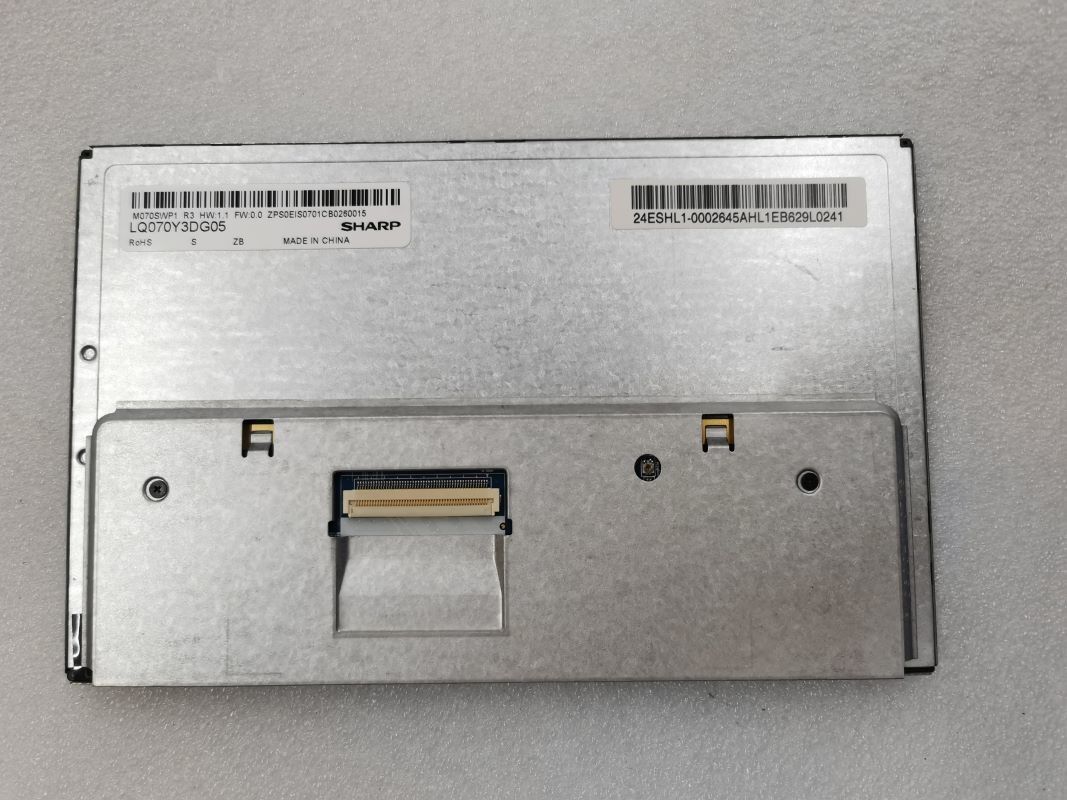

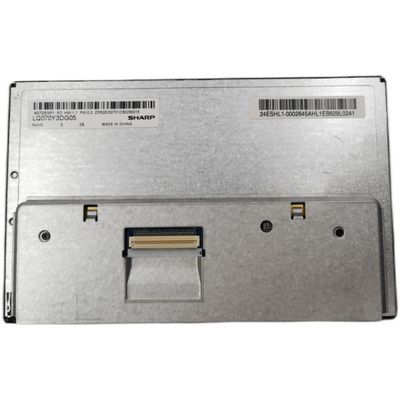

Product Details:
|
| Manufacturer: | Sharp | Model Name: | LQ070Y3DG05 |
|---|---|---|---|
| Screen Size: | 7.0 Inch | Luminance: | 350cd/m² |
| Pixel Number: | 800(RGB)×480 (WVGA) 134PPI | Signal Type: | Parallel RGB (1 Ch, 8-bit) , 50 Pins Connector |
| Backlight: | WLED , 20K Hours , With LED Driver | Max. Ratings: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Highlight: | CCFL Sharp TFT LCD Display,WLED LVDS TFT Touch Panel |
||
LQ070 Series LQ070Y3DG05 LQ070Y3DG03 LQ070Y3DG02 LQ070Y3DG01
| Basic Info : | Panel Brand | SHARP | Panel Model | LQ070Y3DG05  1 Compatible |
|---|---|---|---|---|
| Diagonal Size | 7.0" | Application | ||
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | M070SWP1 R3 | |
| Reliability : | Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 80 °C |
| RoHS State | Vibration Rating | 1.5G (14.7 m/s²) |
| Pixel Features : | Pixel Format | 800(RGB)×480 [WVGA] | Dot Pitch | 0.064×0.1805 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.192×0.1805 mm (H×V) [134PPI] | |
| Mechanical Size : | Display Area | 153.6×86.64 mm (H×V) | Bezel Area | 156.0×89.04 mm (H×V) |
| Outline Dim. | 165×104 mm (H×V) | Outline Depth | 5/8.2 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 16:9 (H:V) | Shape Style | ||
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 194g (Typ.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 350 cd/m² (Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 16 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6638K | White Uniformity | 1.43 (Max.)(5 points) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Back-light Features: | Lamp Shape | - | Lamp Type | WLED | Life Time | 20K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | - | Position | Edge light type | |
| Interface Features : | Type | Included in panel signal interface | Position | - | Lamp Driver | With LED Driver |
| Driver Electrical : | Voltage Input | 4.5/12.0/16.0V (Min./Typ./Max.) | Current Input | - | ||
| Consumption | 2.1W (Max.) | |||||
| Signal Systerm : | Parallel RGB (1 ch, 8-bit) | Logic Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 100/150mA (Typ./Max.) | ||
| Consumption | 0.5W (Max.) | |||||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| STARCONN | 089H50-000000-G2-R | 0.5 mm | 50 pins | 1 pcs | ||
LQ070Y3DG05 supports display 800(RGB)×480 (WVGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 153.6(W)×86.64(H) mm, outline size of 165(W)×104(H)×8.2(D) mm, viewing area size of 156.0(W)×89.04(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 194g (Typ.). As a TN, Normally White, Transmissive LCM product, LQ070Y3DG05 can provides 350 cd/m² display brightness 500:1 transimissive contrast ratio, 70/70/50/70 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 16 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 20K hours, With LED Driver.
