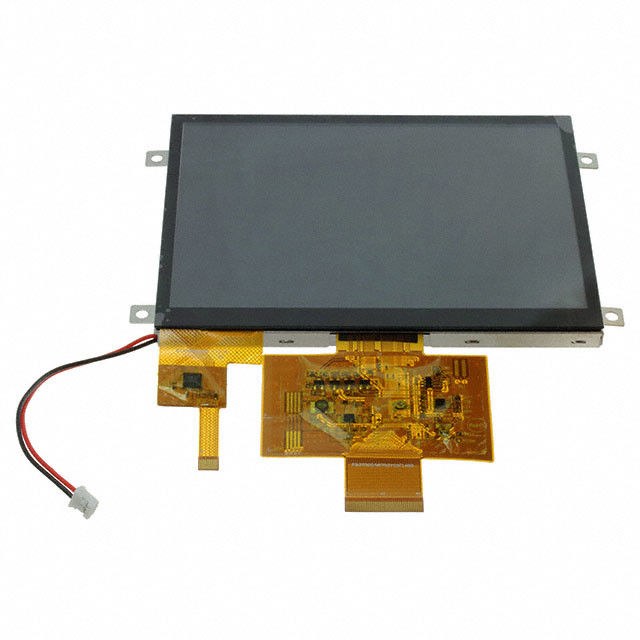

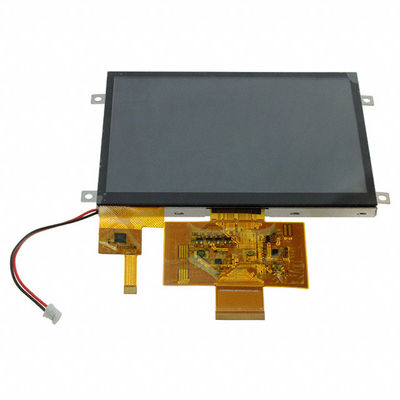

Product Details:
|
| Model: | LQ070Y3DG3B | Brand: | Sharp |
|---|---|---|---|
| Light Source: | WLED [8S3P] , 10K Hours , W/O Driver | Interface Type: | Parallel RGB (1 Ch, 8-bit) , 40 Pins FPC |
| Diagonal Size: | 7.0 Inch | Luminance: | 280 Cd/m² (Typ.) |
| Pixel Format: | 800×480(RGB) [WVGA] 133PPI | Environment: | Operating Temperature: -20 ~ 50 °C ; Storage Temperature: -20 ~ 70 °C |
| Highlight: | CCFL Sharp TFT LCD Display,WLED LVDS TFT Touch Panel |
||

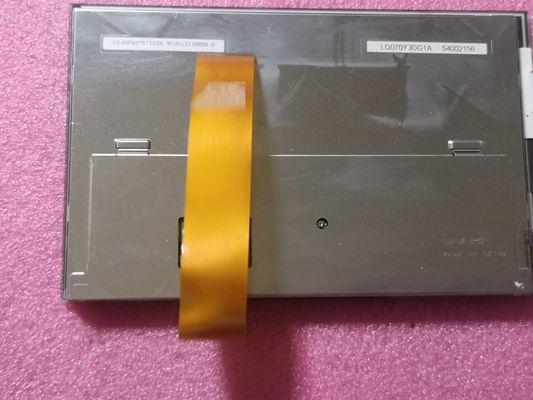

LQ070 Series LQ070Y3DG3B LQ070Y3DG3A LQ070Y3DG1A
| Pixel Features : | Pixel Format | 800×480(RGB) [WVGA] | Dot Pitch | 0.1905×0.0635 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Horizontal Stripe | Pixel Pitch | 0.1905×0.1905 mm (H×V) [133PPI] | |
| Mechanical Size : | Display Area | 152.4×91.44 mm (H×V) | Bezel Area | - |
| Outline Dim. | 163.2×104 mm (H×V) | Outline Depth | 5.0/7.4 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:9 (H:V) | Shape Style | ||
| Touch Screen : | Touch Points | - | TP Signal | - |
| TP Controller | Without touch controller | Touchscreen | 4-wire Resistive Touch | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | 170/185g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Basic Information : | Brightness | 280 cd/m² (Typ.) | Contrast Ratio | 300:1 (Min.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/50/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 35 (Typ.)(Tr+Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.340 | Color Numbers | 16.7M (8-bit) |
| Color Temperature | 6551K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 69% coverage |
| Adobe RGB | 52% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Power Consumption : | 2.0W (Typ.) |
| Back-light Features: | Lamp Shape | 3 strings | Lamp Type | WLED | Life Time | 10K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 8S3P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 25.6/28V (Typ./Max.) | Current Input | 20/25mA (Typ./Max.) | ||
| Consumption | 1.54W (Typ.) | |||||
| Interface Features : | Type | FPC | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 6 pins | 1 pcs | BLE-6PINS-ACACAC | |||
| Signal Systerm : | Parallel RGB (1 ch, 8-bit) | Logic Voltage | VIL≤0.3VCC; 0.7VCC≤VIH | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 140/185mA (Typ./Max.) | ||
| Consumption | 0.46W (Typ.) | |||||
| Interface Features : | Type | FPC | Position | - | ||
| FPC Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 40 pins | 1 pcs | DRGB-40P1C8B-050B | |||
LQ070Y3DG3B supports display 800×480(RGB) (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 163.2(W)×104(H)×7.4(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 170/185g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, LQ070Y3DG3B can provides 280 cd/m² display brightness 300:1 transimissive contrast ratio, 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 49% (NTSC). This product adopted 8S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
