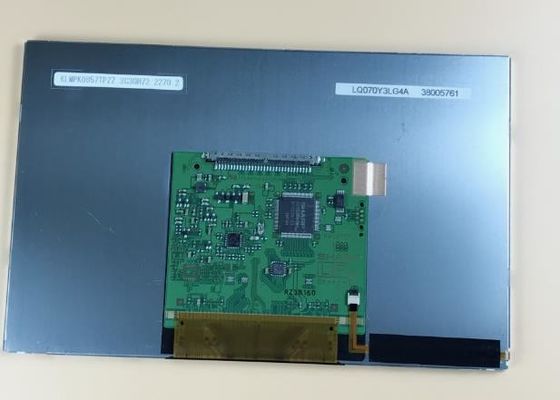

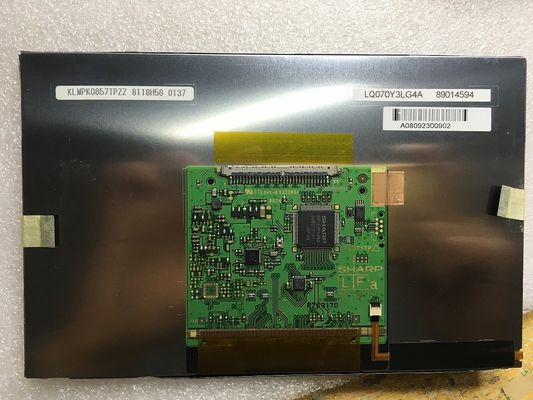

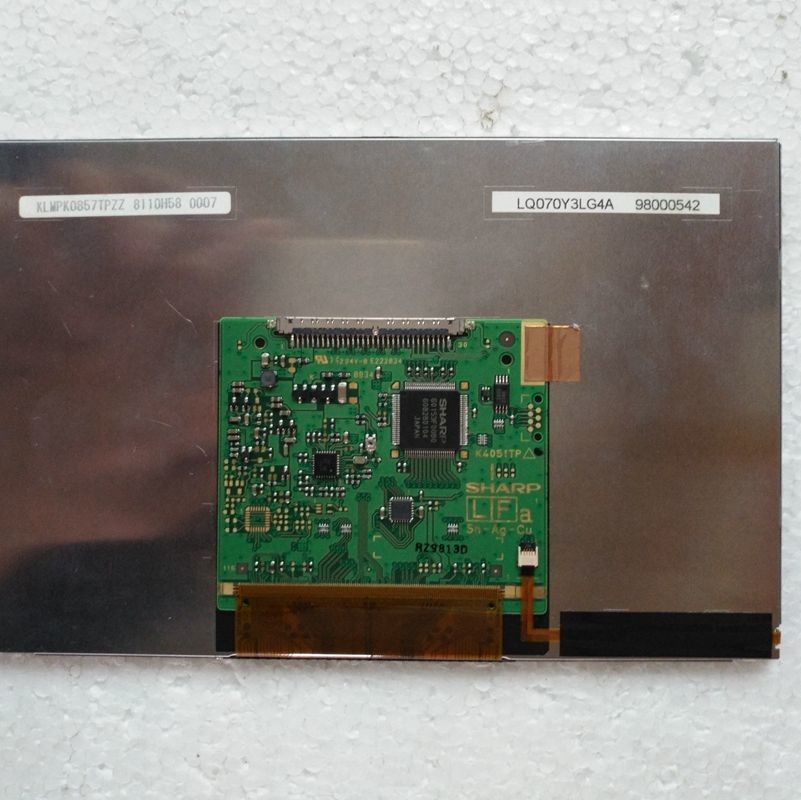

Product Details:
|
| Manufacturer: | SHARP | Model Name: | LQ070Y3LG4A |
|---|---|---|---|
| Pixel Number: | 800×480(RGB) (WVGA) 133PPI | Screen Size: | 7.0 Inch |
| Luminance: | 350 Cd/m² (Typ.) | Signal Type: | LVDS (1 Ch, 8-bit) , 30 Pins Connector |
| Backlight: | 8S3P WLED , 10K Hours , No Driver | Max. Ratings: | Storage Temp.: -20 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
| Highlight: | CCFL Sharp TFT LCD Display,WLED LVDS TFT Touch Panel |
||
LQ070 Series LQ070Y3LW01 LQ070Y3LG4A LQ070Y3LG05
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LQ070Y3LG4A | a-Si TFT-LCD , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -20 ~ 60 °C | -20 ~ 70 °C | - |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 350 (Typ.) | 65/65/50/60 (Typ.)(CR≥10) | 35 (Typ.)(Tr+Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 400 : 1 (Typ.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 7099K | 16.7M (8-bit) | X:0.302; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 49% | 69% | 51% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 51% | 36% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Panel Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800×480(RGB) [WVGA] | RGB Horizontal Stripe | 0.1905×0.1905 [133PPI] | 0.1905×0.0635 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 152.4(H) × 91.44(V) | 156.8(H) × 94.94(V) | 163.2(H) × 104(V) | 3.9/6.25 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 15:9 (H:V) | ||
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 135/140g (Typ./Max.) | - | Antiglare, Hard coating (2H) | ||
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 8S3P | 3 strings | 10K(Min.) | - | |
| WLED Electrical : | Voltage Supply | Current Supply | Power | |||
| 25.6/28V (Typ./Max.) | 15/20/25mA (Min./Typ./Max.) | 1.54W (Typ.) | ||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Included in panel signal interface | ||||
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.) | 160/200mA (Typ./Max.) | 0.53W (Typ.) | ||||
| Interface Features : | Position | Signal | Type | |||
| - | LVDS (1 ch, 8-bit) | Connector | ||||
| Connector Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JAE | FI-XB30SRL-HF11 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P1C8B-280A | |
LQ070Y3LG4A supports display 800×480(RGB) (WVGA) with aspect ratio of 15:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 152.4(W)×91.44(H) mm, outline size of 163.2(W)×104(H)×6.25(D) mm, viewing area size of 156.8(W)×94.94(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of 135/140g (Typ./Max.). As a TN, Normally White, Transmissive LCM product, LQ070Y3LG4A can provides 350 cd/m² display brightness 400:1 transimissive contrast ratio, 65/65/50/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 49% (NTSC). This product adopted 8S3P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
