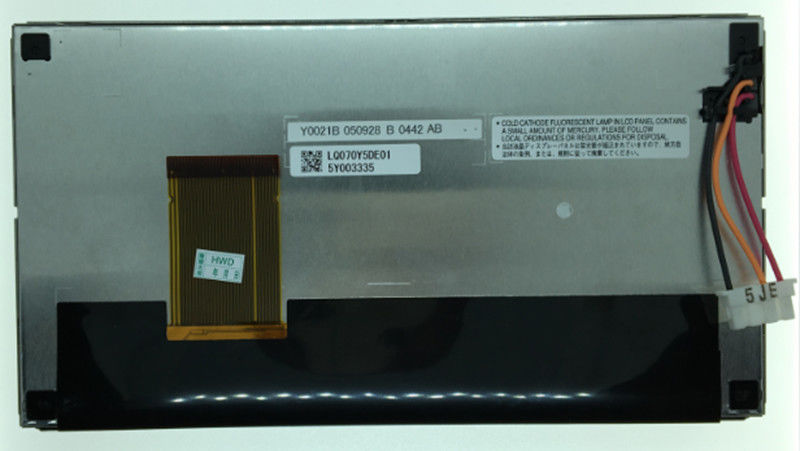

Product Details:
|
| Panel Model: | LQ070Y5DE01 | Panel Brand: | Sharp |
|---|---|---|---|
| Brightness: | 320 Cd/m² (Typ.) | Panel Size: | 7.0INCH |
| Lamp Type: | 1 Pcs CCFL , Without Driver | Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 50 Pins FPC |
| Resolution: | 800(RGB)×480, WVGA, 134PPI | Environment: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| High Light: | CCFL Sharp TFT LCD Display,WLED LVDS TFT Touch Panel |
||
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LQ070Y5DE01 | a-Si TFT-LCD , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -30 ~ 85 °C | -40 ~ 85 °C | 3.0G (29.4 m/s²) |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| 320 (Typ.) | 65/65/60/65 (Typ.)(CR≥10) | 30/50 (Typ.)(Tr/Td) | |
| Best View on | Display Mode | Contrast Ratio | |
| 6 o'clock | TN, Normally White, Transmissive | 100 : 1 (Min.) (Transmissive) | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| 6274K | 262K (6-bit) | X:0.315; Y:0.345 |
| Panel Size : | 7.0" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 800(RGB)×480 [WVGA] | RGB Vertical Stripe | 0.195×0.1725 [134PPI] | 0.065×0.1725 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 156(H) × 82.8(V) | 157.7(H) × 84.27(V) | 171.6(H) × 93.2(V) | 11.25/14.35 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 17:9 (H:V) | ||
| Mounting : | Without | |||
| Other Detail : | Weight | Panel Cover | Treatment | |
| 280g (Max.) | - | - | ||
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Vertical Frequency : | 60Hz |
| Lamp Features: | Type | Position | Quantity | Shape | Life(Hours) | Lamp Exchange |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | 1 pcs | U shape | - | - | |
| CCFL Electrical : | Voltage Supply | Current Supply | Power | |||
| 660±70V | 6.0±0.5mA | 7.92W (Typ.) | ||||
| Operating Frequency | Kick-off Voltage | |||||
| 30/100KHz (Min./Max.) | 1125/1280V (Max.)(Ta=+25/-30℃) | |||||
| Interface Features : | Position | Backlight Driver | Type | |||
| - | No | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| JST | BHR-04VS-1 | 4.0 mm | 4 pins | 1 pcs | BLL-4PINS-LNNH | |
| Panel Driving Electrical : | Voltage Supply | Current Supply | Power | |||
|---|---|---|---|---|---|---|
| 14/5.3/2.7V (Typ.)(VDD/VSHA/VSHD) | 0.20/40/8mA (Typ.)(IDD/ISHA/ISHD) | - | ||||
| Interface Features : | Position | Signal | Type | |||
| - | Parallel RGB (1 ch, 6-bit) | FPC | ||||
| FPC Detail : | Brand | Model | Pin Pitch | Pin Amount | Quantity | Configuration |
| 0.5 mm | 50 pins | 1 pcs | ||||
LQ070 Series LQ070Y5DG10 LQ070Y5DG09 LQ070Y5DG03 LQ070Y5DG02 LQ070Y5DE01
LQ070Y5DE01 supports display 800(RGB)×480 (WVGA) with aspect ratio of 17:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 156(W)×82.8(H) mm, outline size of 171.6(W)×93.2(H)×14.35(D) mm, viewing area size of 157.7(W)×84.27(H) mm, net weight of 280g (Max.). As a TN, Normally White, Transmissive LCM product, LQ070Y5DE01 can provides 320 cd/m² display brightness 100:1 transimissive contrast ratio, 65/65/60/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/50 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
