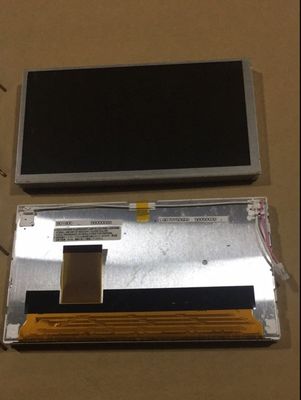

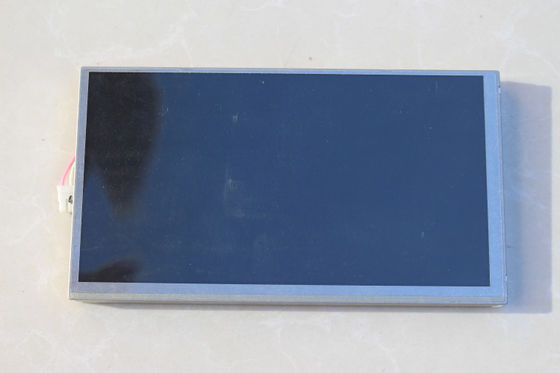

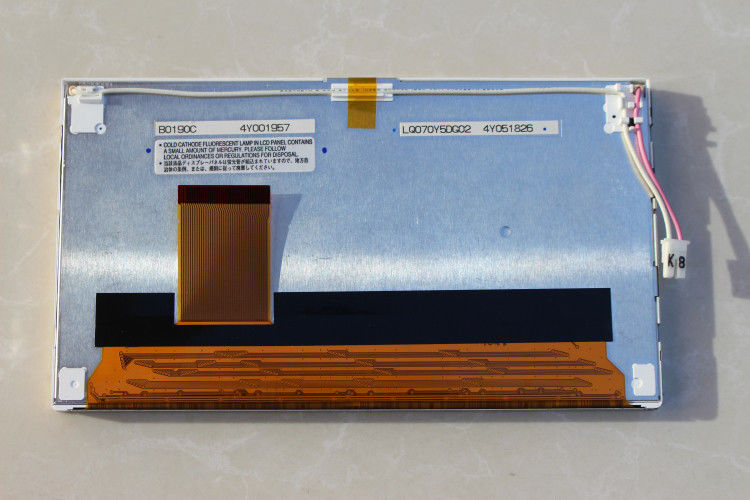

Product Details:
|
| Brand: | Sharp | Model: | LQ070Y5DG02 |
|---|---|---|---|
| Pixel Format: | 800(RGB)×480 [WVGA] 134PPI | Diagonal Size: | 7.0 Inch |
| Luminance: | 380 Cd/m² (Typ.) | Light Source: | CCFL [1 Pcs] , 10K Hours , W/O Driver |
| Interface Type: | Parallel RGB (1 Ch, 6-bit) , 50 Pins FPC | Environment: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| High Light: | CCFL Sharp TFT LCD Display,WLED LVDS TFT Touch Panel |
||
LQ070 Series LQ070Y5DG10 LQ070Y5DG09 LQ070Y5DG03 LQ070Y5DG02 LQ070Y5DE01
| Panel Size : | 7.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800(RGB)×480, WVGA | RGB Vertical Stripe | 0.065×0.1735 mm | 0.195×0.1735 mm [134PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 156×82.8 mm | 157.7×84.75 mm | 168×94 mm | 8.85/11.75 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 17:9 (W : H) | Landscape type | ||
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 185g (Max.) | Antiglare | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 380 cd/m² (Typ.) | TN, Normally White, Transmissive | 100:1 (Min.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 65/65/60/65 (Typ.)(CR≥10) | 6 o'clock | 30/50 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 |
| Power Consumption : | 4.5W (Typ.) |
|---|---|
| Frame Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 40/8/0.2/-0.2/0.05/-0.10mA (Typ.)(ISHA/ISHD/IDD/IEE/ICC/ISS) | 5.3/2.7/15/-12.0/-17.4V (Typ.)(VSHA/VSHD/VDD/VEEDC/VSS) | - | ||||
| Voltage for Display Signals : | 0≤VIL≤0.2VSHD; 0.8VSHD≤VIH≤VSHD | |||||
| Interface Features : | Position | Type | Interface | |||
| - | FPC | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 50 pins | |||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type | U shape | 1 pcs | 10K(Min.) | - | |
| CCFL Electrical : | Current Input | Voltage Input | Consumption | |||
| 6.0±0.5mA | 640/720/800V (Min./Typ./Max.) | 4.32W (Typ.) | ||||
| Turn-on Voltage | Lamp Frequency | |||||
| 2100/2200V (Max.)(Ta=+25/-30℃) | 30/100KHz (Min./Max.) | |||||
| Interface Features : | Position | Type | CCFL Driver | |||
| - | Connector | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | BHSR-02VS-1 | 1 pcs | 3.5 mm | 2 pins | BLL-2PINS-HL | |
LQ070Y5DG02 supports display 800(RGB)×480 (WVGA) with aspect ratio of 17:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 156(W)×82.8(H) mm, outline size of 168(W)×94(H)×11.75(D) mm, viewing area size of 157.7(W)×84.75(H) mm, with surface treament of Antiglare, net weight of 185g (Max.). As a TN, Normally White, Transmissive LCM product, LQ070Y5DG02 can provides 380 cd/m² display brightness 100:1 transimissive contrast ratio, 65/65/60/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 30/50 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
