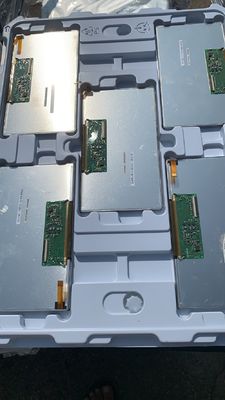

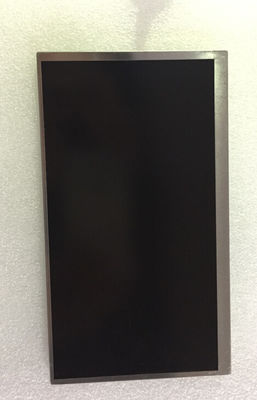

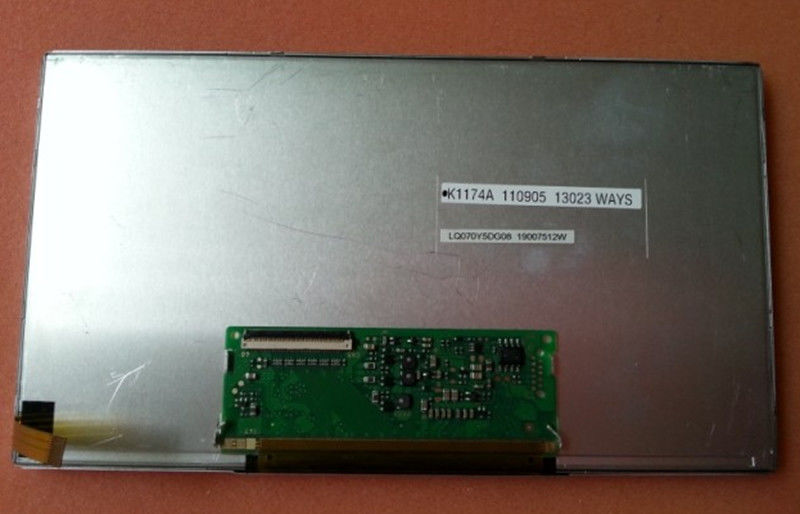

Product Details:
|
| Model: | LQ070Y5DG09 | Brand: | Sharp |
|---|---|---|---|
| Luminance: | 600 Cd/m² (Typ.) | Diagonal Size: | 7.0 Inch |
| Pixel Format: | 800×480(RGB) [WVGA] 134PPI | Interface Type: | Parallel RGB (1 Ch, 6-bit) , 40 Pins Connector |
| Light Source: | WLED [6S4P] , 10K Hours , W/O Driver | Environment: | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| High Light: | CCFL Sharp TFT LCD Display,WLED LVDS TFT Touch Panel |
||
LQ070 Series LQ070Y5DG10 LQ070Y5DG09 LQ070Y5DG03 LQ070Y5DG02
| Basic Information : | Brand | Model | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LQ070Y5DG09 | a-Si TFT-LCD , LCM | - | |
| Reliability : | RoHS | Operating Temperature | Storage Temperature | Vibration Resistance |
| -30 ~ 85 °C | -40 ~ 85 °C | 3.0G (29.4 m/s²) |
| Panel Size : | 7.0 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 800×480(RGB), WVGA | RGB Horizontal Stripe | 0.1955×0.057 mm | 0.1955×0.1955 mm [134PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 156.4×82.08 mm | 158.4×84.08 mm | 166×93.2 mm | 6.0/9.5 (Typ./Max.) mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 17:9 (W : H) | Landscape type | ||
| Fixation : | Without | |||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 160g (Max.) | - | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 600 cd/m² (Typ.) | TN, Normally White, Transmissive | 150:1 (Typ.) (Transmissive) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| 65/65/50/65 (Typ.)(CR≥10) | 6 o'clock | 20/30 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 6747K | 262K (6-bit) | X:0.308; Y:0.330 |
| Power Consumption : | 2.587W |
|---|---|
| Frame Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Signal Electrical : | Current Input | Voltage Input | Consumption | |||
|---|---|---|---|---|---|---|
| 63/150mA (Typ./Max.) | 3.3V (Typ.) | 0.21W (Typ.) | ||||
| Voltage for Display Signals : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||
| Interface Features : | Position | Type | Interface | |||
| - | Connector | Parallel RGB (1 ch, 6-bit) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| JST | 40FHY-RSM1-GAN-TF | 1 pcs | 0.5 mm | 40 pins | ||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 4 strings | 6S4P | 10K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 30/35mA (Typ./Max.) | 18.0/19.8/21.5V (Min./Typ./Max.) | 2.46W (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | FPC | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 10 pins | BLE-10PINS-CCCCNAANNN | |||
LQ070Y5DG09 supports display 800×480(RGB) (WVGA) with aspect ratio of 17:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 156.4(W)×82.08(H) mm, outline size of 166(W)×93.2(H)×9.5(D) mm, viewing area size of 158.4(W)×84.08(H) mm, net weight of 160g (Max.). As a TN, Normally White, Transmissive LCM product, LQ070Y5DG09 can provides 600 cd/m² display brightness 150:1 transimissive contrast ratio, 65/65/50/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 20/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 6S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
