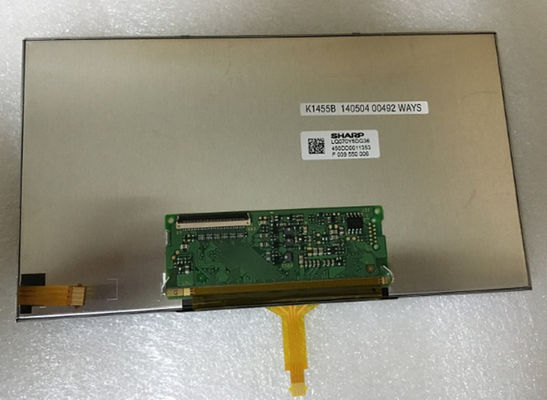

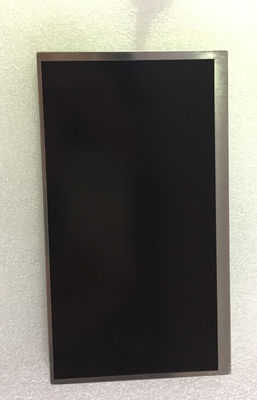

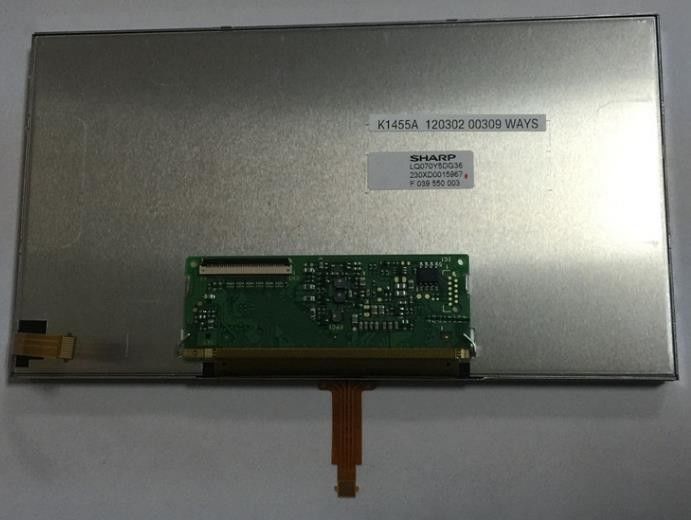

Product Details:
|
| Panel Model: | LQ070Y5DG36 | Panel Brand: | Sharp |
|---|---|---|---|
| Brightness: | 485 Cd/m² (Typ.) | Panel Size: | 7INCH |
| Lamp Type: | 6S4P WLED , 10K Hours , Without Driver | Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 40 Pins Connector |
| Resolution: | 800×480(RGB), WVGA, 134PPI | Environment: | Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| High Light: | CCFL Sharp TFT LCD Display,WLED LVDS TFT Touch Panel |
||
LQ070 Series LQ070Y5DG36 LQ070Y5DG30 LQ070Y5DG13 LQ070Y5DG12
| Pixel Features : | Pixel Format | 800×480(RGB) [WVGA] | Dot Pitch | 0.1955×0.057 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Horizontal Stripe | Pixel Pitch | 0.1955×0.1955 mm (H×V) [134PPI] | |
| Mechanical Size : | Display Area | 156.4×82.08 mm (H×V) | Bezel Area | - |
| Outline Dim. | 165.2×92.4 mm (H×V) | Outline Depth | 10.56±0.5 mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 17:9 (H:V) | Shape Style | ||
| Touch Screen : | Touch Points | - | TP Signal | - |
| TP Controller | Without touch controller | Touchscreen | 4-wire Resistive Touch | |
| Holes & Brackets : | Without | |||
| Other Features : | Weight | TBD | Surface | - |
| Basic Information : | Brightness | 485 cd/m² (Typ.) | Contrast Ratio | 150:1 (Min.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/50/65 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | - | Response Time | 20/30 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.308; Wy:0.330 | Color Numbers | 262K (6-bit) |
| Color Temperature | 6747K | White Uniformity | - |
| Frame Frequency : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Time Controller (T-CON) : | Embedded T-CON |
| Back-light Features: | Lamp Shape | 4 strings | Lamp Type | WLED | Life Time | 10K(Min.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6S4P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 20.5/22.2V (Typ./Max.) | Current Input | 30/35mA (Typ./Max.) | ||
| Consumption | 2.46W (Typ.) | |||||
| Interface Features : | Type | FPC | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| 0.5 mm | 10 pins | 1 pcs | ||||
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | - | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | 40FHY-RSM1-GAN-TF | 0.5 mm | 40 pins | 1 pcs | ||
LQ070Y5DG36 supports display 800×480(RGB) (WVGA) with aspect ratio of 17:9 (W:H), whose pixels are arranged in RGB Horizontal Stripe. As for mechanical detail, it features active area of 156.4(W)×82.08(H) mm, outline size of 165.2(W)×92.4(H)×11.06(D) mm, net weight of TBD. As a TN, Normally White, Transmissive LCM product, LQ070Y5DG36 can provides 485 cd/m² display brightness 150:1 transimissive contrast ratio, 65/65/50/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle , and response time of 20/30 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 6S4P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
