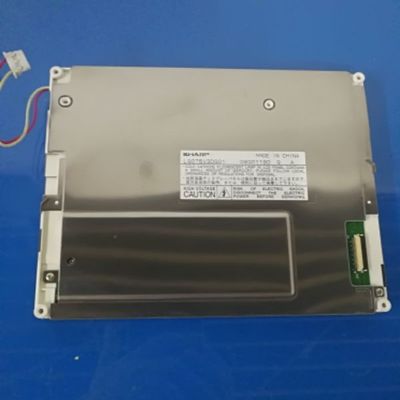

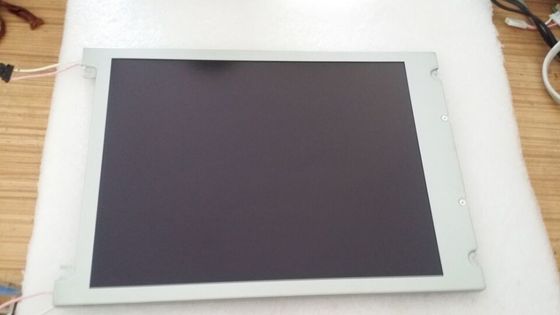

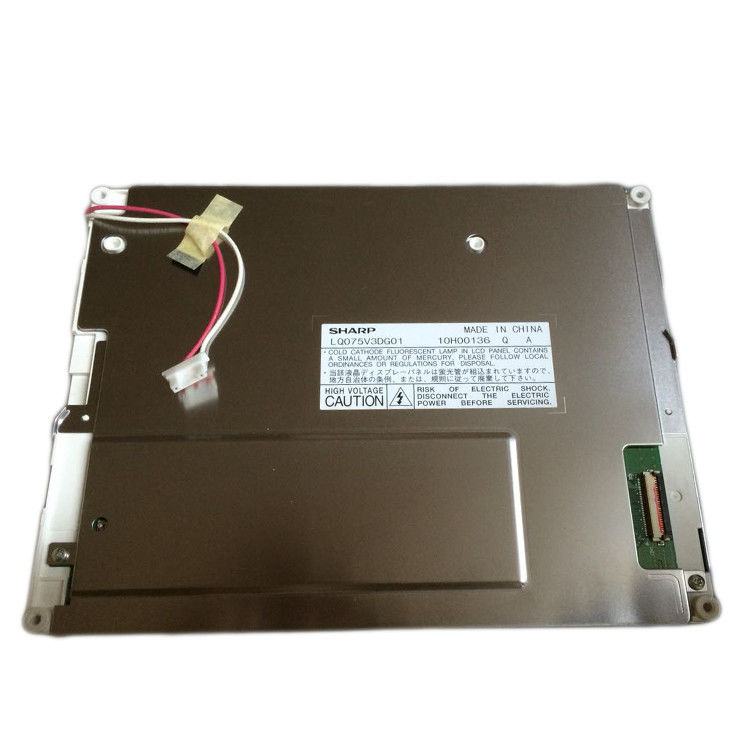

Product Details:
|
| Model Name: | LQ075V3DG01 | Manufacturer: | Sharp |
|---|---|---|---|
| Luminance: | 400 Cd/m² (Typ.) | Screen Size: | 7.5 Inch |
| Signal Type: | Parallel RGB (1 Ch, 6-bit) , 33 Pins Connector | Backlight: | 1 Pcs CCFL , 50K Hours , No Driver |
| Pixel Number: | 640(RGB)×480 (VGA) 107PPI | Max. Ratings: | Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| High Light: | CCFL Sharp TFT LCD Display,WLED LVDS TFT Touch Panel |
||
LQ075 Series LQ075V3DG03 LQ075V3DG01
| Screen Size : | 7.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 640(RGB)×480, VGA | RGB Vertical Stripe | 0.079×0.237 mm | 0.237×0.237 mm [107PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 151.68×113.76 mm | 156.3×118.4 mm | 179×139.5 mm | 12.7 (Typ.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 4:3 | Landscape type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 365g (Max.) | - | Antiglare | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 400 cd/m² (Typ.) | TN, Normally White, Transmissive | 600:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| 6 o'clock | 70/70/60/65 (Typ.)(CR≥10) | 5/21 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 262K (6-bit) | X:0.313; Y:0.329 |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| CCFL | Edge light type (Top side) | 50K(Typ.) | 1 pcs | U shape | - | |
| CCFL Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 850±85V | 6.0±0.5mA | |||||
| Operating Frequency | Startup Voltage | |||||
| 50/80KHz (Min./Max.) | 1500/2250V (Max.)(Ta=+25/-30℃) | |||||
| Interface Features : | CCFL Driver State | Physical Type | Interface Position | |||
| No | Connector | - | ||||
| Interface Detail | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| JST | BHR-02(8.0)VS-1N | 1 pcs | 2 pins | 8.0 mm | BLL-2PINS-HL | |
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 3.3V (Typ.)(VCC) | 185mA (Typ.)(ICC) | - | ||||
| Voltage for Display Signals : | VIL≤0.8V; 2.1V≤VIH | |||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| Parallel RGB (1 ch, 6-bit) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| IRISO | IMSA-9637S-33Y902 | 1 pcs | 33 pins | 0.5 mm | DRGB-33P1C6B-020A | |
LQ075V3DG01 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 151.68(W)×113.76(H) mm, outline size of 179(W)×139.5(H) mm, viewing area size of 156.3(W)×118.4(H) mm, with surface treament of Antiglare, net weight of 365g (Max.). As a TN, Normally White, Transmissive LCM product, LQ075V3DG01 can provides 400 cd/m² display brightness 600:1 transimissive contrast ratio, 70/70/60/65 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 5/21 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, external backlight driver is additionally needed.
