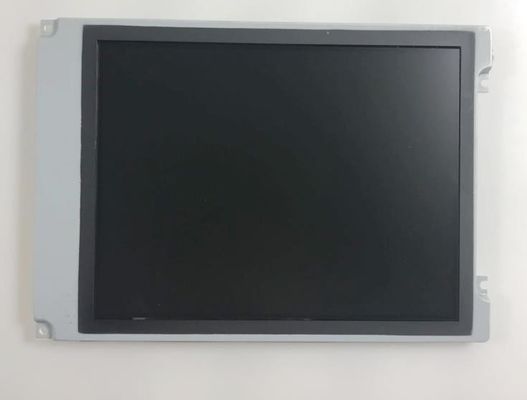

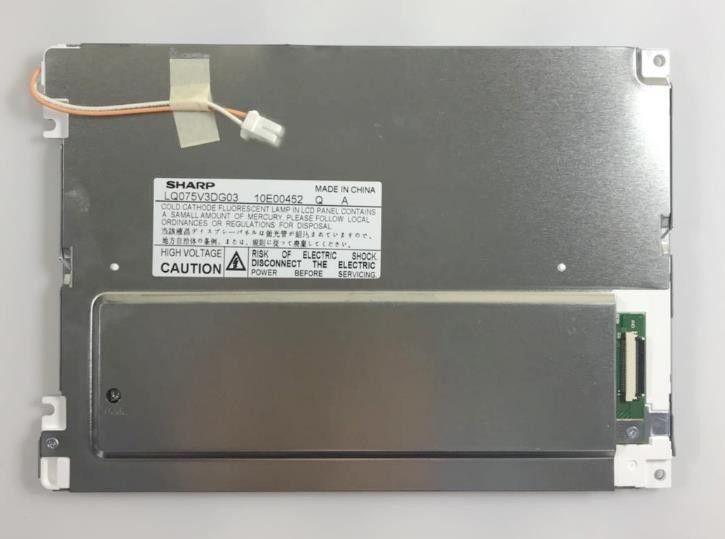

Product Details:
|
| Brand: | Sharp | Model: | LQ075V3DG03 |
|---|---|---|---|
| Pixel Format: | 640(RGB)×480 [VGA] 107PPI | Diagonal Size: | 7.5 Inch |
| Interface Type: | CMOS (1 Ch, 6-bit) | Configuration: | RGB Vertical Stripe |
| Operating Mode: | TN, Normally White, Transmissive | Environment: | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
| High Light: | CCFL Sharp TFT LCD Display,WLED LVDS TFT Touch Panel |
||

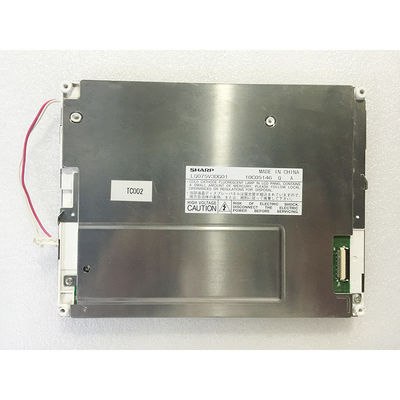

LQ075 Series LQ075V3DG03 LQ075V3DG01
| Basic Information : | Manufacturer | Panel Model | Panel Type | Alias |
|---|---|---|---|---|
| SHARP | LQ075V3DG03 | a-Si TFT-LCD , LCM | - | |
| Environment : | RoHS State | Operating Temp. | Storage Temp. | Vibration Level |
| -30 ~ 80 °C | -30 ~ 80 °C | - |
| Basic Information : | Luminance (cd/m²) | Viewing Angle (L/R/U/D) | Response Time (ms) |
|---|---|---|---|
| - | - | - | |
| Best View on | Display Mode | Contrast Ratio | |
| - | TN, Normally White, Transmissive | - | |
| Dispaly Color : | Color Temperature | Display Colors | White Coordinate |
| - | 262K (6-bit) | - |
| Panel Size : | 7.5" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Format | Pixel Configuration | Pixel Pitch (mm) | Dot Pitch (mm) |
| 640(RGB)×480 [VGA] | RGB Vertical Stripe | 0.237×0.237 [107PPI] | 0.079×0.237 | |
| Mechanical Size : | Active Area (mm) | Bezel Area (mm) | Outline Dimension (mm) | Outline Depth (mm) |
| 151.68(H) × 113.76(V) | - | - | - | |
| Outline Features : | Form Factor | Orientation | Aspect Ratio | Shape Style |
| Flat Rectangle | Landscape type | 4:3 (H:V) | ||
LQ075V3DG03 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 151.68(W)×113.76(H) mm. As a TN, Normally White, Transmissive LCM product, LQ075V3DG03 can provides . Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors.
Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.
Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
