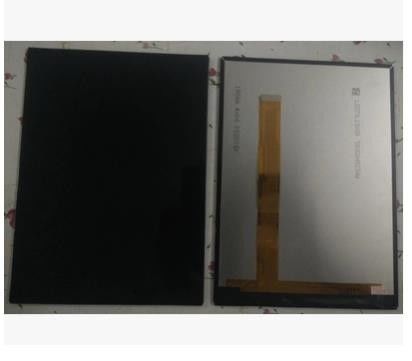

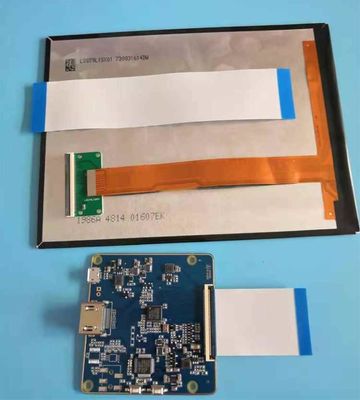

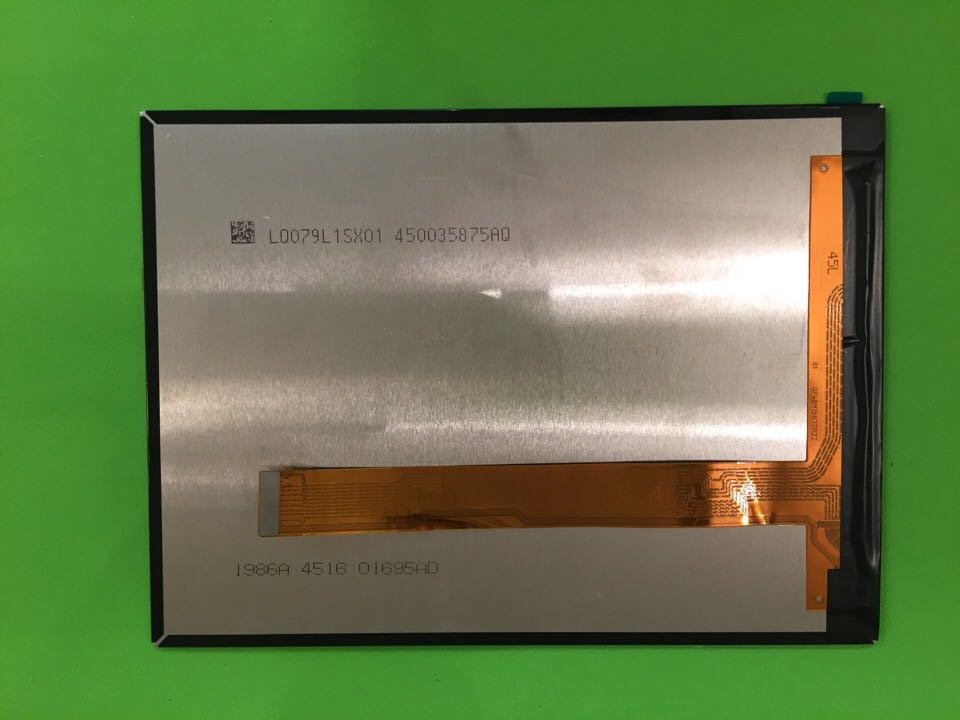

Product Details:
|

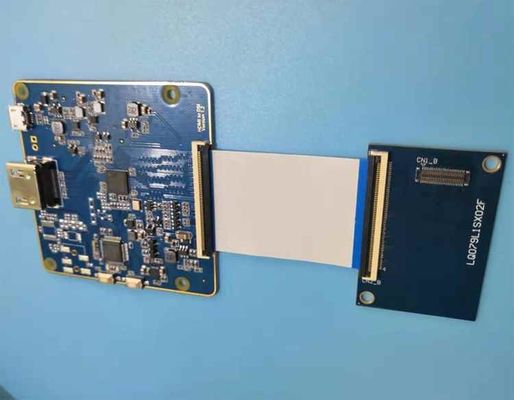

| Model: | LQ079L1SX01 | Brand: | Sharp |
|---|---|---|---|
| Pixel Format: | 1536(RGB)×2048 [QXGA] 325PPI | Diagonal Size: | 7.9 Inch |
| Luminance: | 460 Cd/m² (Typ.) | Light Source: | WLED [6S4P] , W/O Driver |
| Interface Type: | MIPI (2 Ch, 4 Data Lanes) , 50 Pins Connector | Environment: | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| High Light: | CCFL Sharp TFT LCD Display,WLED LVDS TFT Touch Panel |
||
| Basic Information : | Brand Name | Model Name | Type | Model Alias |
|---|---|---|---|---|
| SHARP | LQ079L1SX01 | Oxide TFT-LCD , LCM | - | |
| Maximum Ratings : | RoHS | Operating Temperature | Storage Temperature | Vibration Level |
| -20 ~ 60 °C | -30 ~ 70 °C | - |
| Screen Size : | 7.9" | |||
|---|---|---|---|---|
| Pixel Features : | Pixel Number | Pixel Format | Dot Pitch (H×V) | Pixel Pitch (H×V) |
| 1536(RGB)×2048, QXGA | RGB Vertical Stripe | 0.026×0.078 mm | 0.078×0.078 mm [325PPI] | |
| Mechanical Size : | Display Area (H×V) | Bezel Opening (H×V) | Overall Dimension (H×V) | Overall Depth |
| 119.808×159.744 mm | - | 125.55×171.3 mm | 1.95/3.15 (Typ./Max.) mm | |
| Outline Features : | Form Shape | Aspect Ratio (H:V) | Orientation | Shape Style |
| Flat Rectangle | 3:4 | Portrait type | ||
| Other Spec : | Mass | Panel Cover | Surface Treatment | |
| 65.0g (Typ.) | - | - | ||
| Basic Information : | Luminance | Work Mode | Contrast Ratio |
|---|---|---|---|
| 460 cd/m² (Typ.) | IPS, Normally Black, Transmissive | 1000:1 (Typ.) (Transmissive) | |
| Good View at | Viewing Angle | Response Time | |
| Symmetry | 85/85/85/85 (Typ.)(CR≥10) | 35 (Typ.)(Tr+Td) (ms) | |
| Dispaly Color : | Color Temperature: | Support Color | Color Coordinate |
| 6485K | 16.7M (8-bit) | X:0.313; Y:0.329 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 67% | 92% | 71% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 70% | 50% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| White Uniformity : | 1.11/1.25 (Typ./Max.)(9 points) | ||
| Refresh Rate : | 60Hz |
|---|---|
| Reverse Scan : | No |
| Driver IC List: | COG Built-in NT35523 + NT35523 |
| Back-light Features: | Type | Position | Life(Hours) | Amount | Shape | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | - | 6S4P | 4 strings | - | |
| WLED Electrical : | Input Voltage | Input Current | Power Consumption | |||
| 20mA (Typ.) | ||||||
| Interface Features : | WLED Driver State | Physical Type | Interface Position | |||
| No | Included in panel signal interface | - | ||||
| Signal Electrical : | Input Voltage | Input Current | Power Consumption | |||
|---|---|---|---|---|---|---|
| 1.8/5.6/-5.6V (Typ.)(IOVCC/VSP/VSN) | 40/15.0/15.5mA (Typ.)(IOICC/ISP/ISN) | - | ||||
| Interface Features : | Signal Type | Physical Type | Interface Position | |||
| MIPI (2 ch, 4 data lanes) | Connector | - | ||||
| Interface Detail : | Brand Name | Model Name | Amount | Pins | Pin Pitch | Pin Configuration |
| Panasonic | AXE450124 | 1 pcs | 50 pins | 0.4 mm | ||
LQ079L1SX01 supports display 1536(RGB)×2048 (QXGA) with aspect ratio of 3:4 (W:H), whose pixels are arranged in RGB Vertical Stripe, according to calculation of Panelook it's pixel density is 325 PPI. As for mechanical detail, it features active area of 119.808(W)×159.744(H) mm, outline size of 125.55(W)×171.3(H)×3.15(D) mm, net weight of 65.0g (Typ.). As a IPS, Normally Black, Transmissive LCM product, LQ079L1SX01 can provides 460 cd/m² display brightness 1000:1 transimissive contrast ratio, 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 70% (NTSC). This product adopted 6S4P WLED as it's backlight systerm which was placed as Edge light type, external backlight driver is additionally needed.
