8" LCM 800×480RGB  625CD/M2 LQ080Y5DG04 Sharp TFT LCD Display

8"  LCM  800×480RGB 	625CD/M2  LQ080Y5DG04  Sharp	TFT LCD Display
8"  LCM  800×480RGB 	625CD/M2  LQ080Y5DG04  Sharp	TFT LCD Display 8"  LCM  800×480RGB 	625CD/M2  LQ080Y5DG04  Sharp	TFT LCD Display 8"  LCM  800×480RGB 	625CD/M2  LQ080Y5DG04  Sharp	TFT LCD Display 8"  LCM  800×480RGB 	625CD/M2  LQ080Y5DG04  Sharp	TFT LCD Display

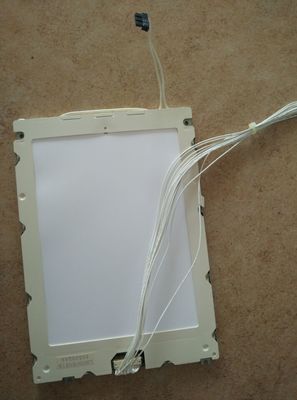

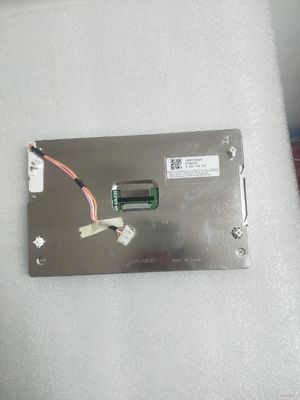

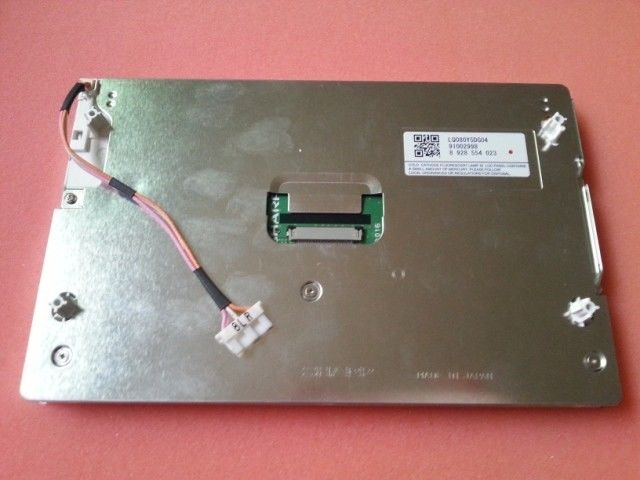

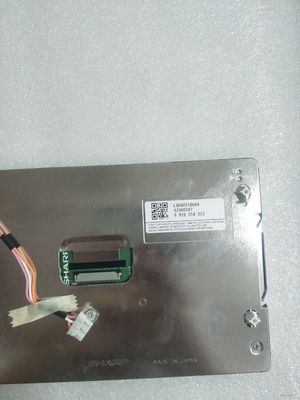

Large Image :  8" LCM 800×480RGB  625CD/M2 LQ080Y5DG04 Sharp TFT LCD Display

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ080Y5DG04
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 10 pcs / box 319×484×319 mm 6 Kgs
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 500PCS

8" LCM 800×480RGB  625CD/M2 LQ080Y5DG04 Sharp TFT LCD Display

Description
Panel Brand: Sharp Panel Model: LQ080Y5DG04
Signal Interface: Parallel RGB (1 Ch, 6-bit) + SPI , 40 Pins Connector Lamp Type: 2 Pcs CCFL , 15K Hours , Without Driver
Panel Size: 8.0INCH Brightness: 625 Cd/m² (Typ.)
Resolution: 800(RGB)×480, WVGA, 116PPI Environment: Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -40 ~ 85 °C ; Vibration Level: 2.9G (28.4 M/s²)
High Light:

CCFL Sharp TFT LCD Display

,

WLED LVDS TFT Touch Panel

LQ080 Series LQ080Y5DR02 LQ080Y5DG04 LQ080Y5CGQ1



Sharp LQ080Y5DG04 Optical Details

Basic Information : Luminance 625 cd/m² (Typ.) Contrast Ratio 400 : 1 (Typ.) (Transmissive)
Good View at 6 o'clock Response Speed 10/15 (Typ.)(Tr/Td) (ms)
Viewing Angle 65/65/40/60 (Typ.)(CR≥10)  Operating Mode TN, Normally White, Transmissive
Color Performance : Chromaticity Wx:0.315; Wy:0.315 Support Color 262K (6-bit)
Color Temperature 6492K White Uniformity -





Sharp LQ080Y5DG04 Mechanical Details

Pixel Features : Number of Pixel 800(RGB)×480 [WVGA] Arrangement RGB Vertical Stripe
Dot Pitch(W×H) 0.0725×0.2175 mm Pixel Pitch(W×H) 0.2175×0.2175 mm [116PPI]
Physical Size : Active Viewing 174(W)×104.4(H) mm Overall Dim. 190(W)×120(H) mm
Bezel Opening - Overall Depth 13.0 (Typ.) mm
Outline Features : Form Shape Flat Rectangle Orientation Landscape type
Aspect Ratio(W:H) 15:9 Shape Style
Fixation : Rear mounting Pole (4 pcs)
Other Detail : Mass 392g (Typ.) Surface -





Sharp LQ080Y5DG04 Interface Details

Signal Electrical : Input Current 450/500mA (Typ./Max.) Input Voltage 3.3V (Typ.)
Consumption - Signal Interface Parallel RGB (1 ch, 6-bit) + SPI
Interface Features : Position - Physical Type Connector
Signal Interface : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JST 40FLZ-SM1-R-TB 1 pcs 0.5 mm 40 pins





Sharp LQ080Y5DG04 Lightting Details

Lamp Features: Lamp Shape Straight Lamp Type CCFL Position Edge light type (Top side)
Exchange - Amount 2 pcs Life 15K(Min.) (Hours)
Lamp Electrical : Input Current 5.0±0.5mA Input Voltage 450±50V
Frequency 45/70KHz (Min./Max.) Turn-on Voltage 1750/1800V (Max.)(Ta=+25/0℃)
Consumption 4.5W (Typ.)
Interface Features : Position - Physical Type Connector
Interface Detail : Brand Model Amount Pin Pitch Pin Amount Pin Assignment
JST BHR-03(6.0)VS-1N 1 pcs 6.0 mm 3 pins BLL-3PINS-HLH
Backlight Driver : No



FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
