LQ084S3LG02 Sharp 8.4" LCM 800×600RGB  350cd/m² INDUSTRIAL LCD DISPLAY

LQ084S3LG02	Sharp  8.4"  LCM  800×600RGB  350cd/m²  INDUSTRIAL LCD DISPLAY
LQ084S3LG02	Sharp  8.4"  LCM  800×600RGB  350cd/m²  INDUSTRIAL LCD DISPLAY LQ084S3LG02	Sharp  8.4"  LCM  800×600RGB  350cd/m²  INDUSTRIAL LCD DISPLAY LQ084S3LG02	Sharp  8.4"  LCM  800×600RGB  350cd/m²  INDUSTRIAL LCD DISPLAY LQ084S3LG02	Sharp  8.4"  LCM  800×600RGB  350cd/m²  INDUSTRIAL LCD DISPLAY

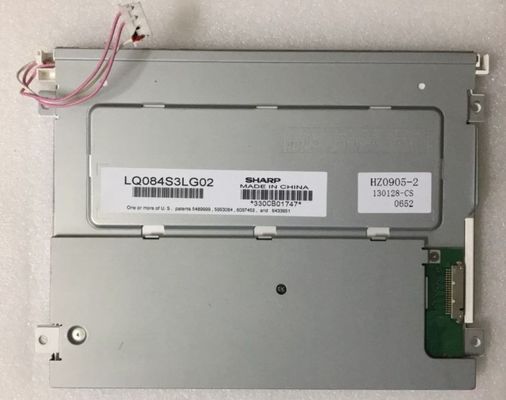

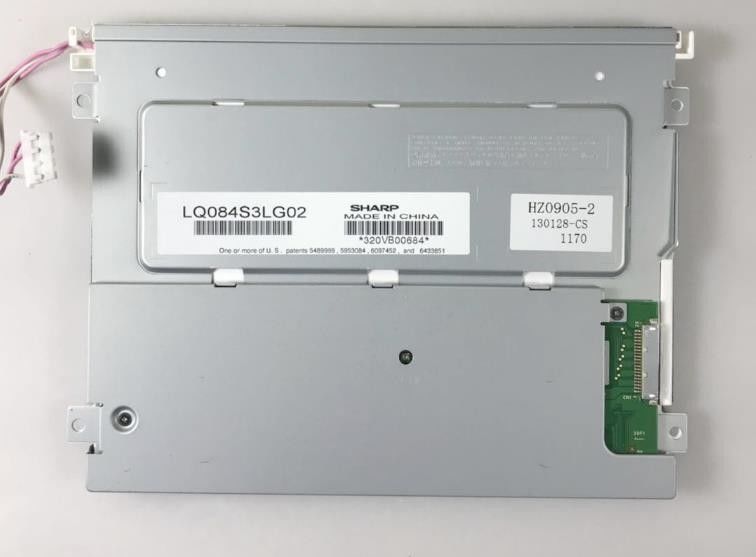

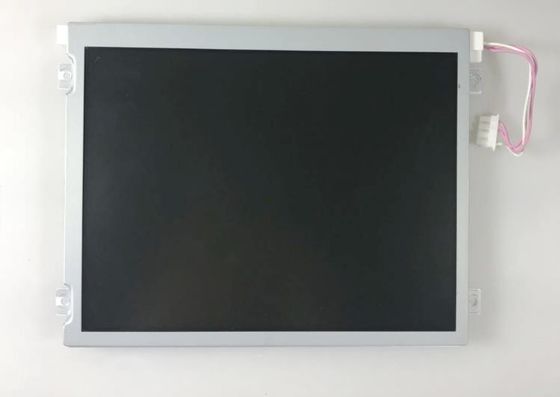

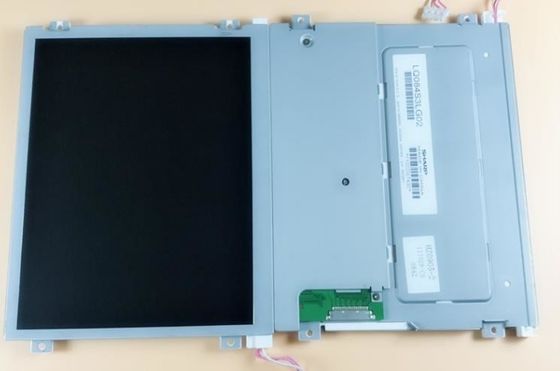

Large Image :  LQ084S3LG02 Sharp 8.4" LCM 800×600RGB  350cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ084S3LG02
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 10 pcs / box 6.0 Kgs 408×203×244 mm (L×W×H)
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 500PCS

LQ084S3LG02 Sharp 8.4" LCM 800×600RGB  350cd/m² INDUSTRIAL LCD DISPLAY

Description
Panel Model: LQ084S3LG02 Panel Brand: Sharp
Brightness: 350 Cd/m² (Typ.) Panel Size: 8.4INCH
Lamp Type: 2 Pcs CCFL Signal Interface: LVDS (1 Ch, 6/8-bit) , 20 Pins Connector
Resolution: 800(RGB)×600, SVGA, 119PPI Environment: Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²)
High Light:

CCFL LVDS Industrial LCD Panel

,

CCFL NEC TFT Panel

LQ084 Series LQ084S3LG12 LQ084S3LG11 LQ084S3LG03 LQ084S3LG02 LQ084S3LG01



Sharp LQ084S3LG02 Mechanical Features

Screen Size : 8.4"
Pixel Features : Pixel Number Pixel Format Dot Pitch (H×V) Pixel Pitch (H×V)
800(RGB)×600, SVGA RGB Vertical Stripe 0.071×0.213 mm 0.213×0.213 mm [119PPI]
Mechanical Size : Display Area (H×V) Bezel Opening (H×V) Overall Dimension (H×V) Overall Depth
170.4×127.8 mm 173.4×130.8 mm 199.5×149.5 mm 12.0 (Max.) mm
Outline Features : Form Shape Aspect Ratio (H:V) Orientation Shape Style
Flat Rectangle 4:3 Landscape type
Other Spec : Mass Panel Cover Surface Treatment
450g (Max.) - Antiglare, Hard coating (2H)





Sharp LQ084S3LG02 Optical Features

Basic Information : Luminance Work Mode Contrast Ratio
350 cd/m² (Typ.) TN, Normally White, Transmissive 450:1 (Typ.) (Transmissive)
Good View at Viewing Angle Response Time
12 o'clock 65/65/60/55 (Typ.)(CR≥10) 35 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature: Support Color Color Coordinate
6485K 262K/16.2M (6-bit / 6-bit + FRC) X:0.313; Y:0.329
White Uniformity : 1.33 (Max.)(9 points)





Sharp LQ084S3LG02 Backlight Features

Back-light Features: Type Position Life(Hours) Amount  Shape Replacement
CCFL Edge light type (Top side) - 2 pcs Straight -
CCFL Electrical : Input Voltage Input Current Power Consumption
380V (Typ.) 3.0/6.0/6.5mA (Min./Typ./Max.) 4.6W (Typ.)
Operating Frequency Startup Voltage
45/100KHz (Min./Max.) 890/1000V (Max.)(Ta=+25/-30℃)
Interface Features : CCFL Driver State Physical Type Interface Position
- Connector -
Interface Detail Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
JST BHR-04VS-1 1 pcs 4 pins 4.0 mm BLL-4PINS-HHNL





Sharp LQ084S3LG02 Interface Features

Signal Electrical : Input Voltage Input Current Power Consumption
3.3V (Typ.) 300/380mA (Typ./Max.) -
Interface Features : Signal Type Physical Type Interface Position
LVDS (1 ch, 6/8-bit) Connector -
Interface Detail : Brand Name Model Name Amount Pins Pin Pitch Pin Configuration
HRS DF19G-20P-1H 1 pcs 20 pins 1.0 mm LVDS-20P1C8B-010F



FAQ:

Q1: What's the quality of your LCD Panel?
A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.

Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.

Q3: How long is the lead time?
A: The lead time is about 1-3 working days after receipt of payment.

Q4: How can I get the quotation?
A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
