LQ084S3LG12 Sharp 8.4" LCM 800×600RGB  400cd/m² INDUSTRIAL LCD DISPLAY

LQ084S3LG12	Sharp  8.4"  LCM  800×600RGB  400cd/m²  INDUSTRIAL LCD DISPLAY
LQ084S3LG12	Sharp  8.4"  LCM  800×600RGB  400cd/m²  INDUSTRIAL LCD DISPLAY LQ084S3LG12	Sharp  8.4"  LCM  800×600RGB  400cd/m²  INDUSTRIAL LCD DISPLAY

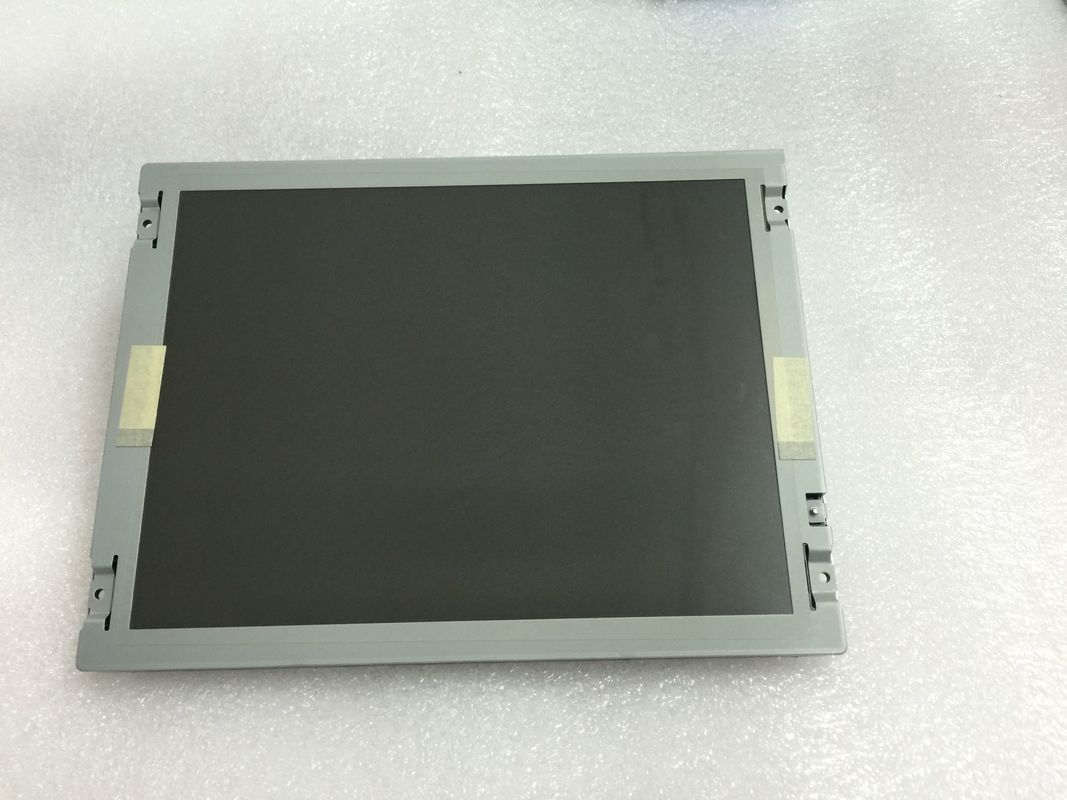

Large Image :  LQ084S3LG12 Sharp 8.4" LCM 800×600RGB  400cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ084S3LG12
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: STANDARD PACKING
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 100PCS

LQ084S3LG12 Sharp 8.4" LCM 800×600RGB  400cd/m² INDUSTRIAL LCD DISPLAY

Description
Brand: Sharp Model: LQ084S3LG12
Diagonal Size: 8.4 Inch Light Source: WLED , 70K Hours , With LED Driver
Interface Type: LVDS (1 Ch, 6/8-bit) , 20 Pins Connector Pixel Format: 800(RGB)×600 [SVGA] 119PPI
Luminance: 400cd/m² Environment: Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C
High Light:

CCFL LVDS Industrial LCD Panel

,

CCFL NEC TFT Panel

LQ084 Series LQ084S3LG12 LQ084S3LG11 LQ084S3LG03 LQ084S3LG02 LQ084S3LG01



Sharp LQ084S3LG12 Mechanical Features

Panel Size : 8.4 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
800(RGB)×600, SVGA RGB Vertical Stripe 0.071×0.213 mm 0.213×0.213 mm [119PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
170.4×127.8 mm 173.4×130.8 mm 200×152 mm 9.8 (Max.) mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 4:3 (W : H) Landscape type
Fixation : Face mounting holes (4-Φ2.8) on left, right bezel
Other Features : Panel Cover Weight Surface
- TBD Antiglare, Hard coating (2H)





Sharp LQ084S3LG12 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
400 cd/m² (Typ.) TN, Normally White, Transmissive 600:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
80/80/80/80 (Typ.)(CR≥10) 6 o'clock 35 (Typ.)(Tr+Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
6485K 262K/16.7M (6-bit / 8-bit) X:0.313; Y:0.329
Luminance Variation : 1.33 (Max.)(5 points)





Sharp LQ084S3LG12 Interface Features

Signal Electrical : Current Input Voltage Input Consumption
300mA (Typ.) 3.3V (Typ.) -
Interface Features : Position Type Interface
- Connector LVDS (1 ch, 6/8-bit)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
JAE FI-SE20P-HFE 1 pcs 1.25 mm 20 pins





Sharp LQ084S3LG12 Backlight Features

Backlight Features: Type Position Shape Amount  Life(Hours) Replacement
WLED Edge light type - - 70K(Typ.) -
Interface Features : Position Type WLED Driver
- Connector With LED Driver
Interface Detail Brand Model Amount Pin Pitch Pins Pin Assignment
molex 53261-0871 1 pcs 1.25 mm 8 pins
Driver Electrical : Current Input Voltage Input Consumption
375mA (Typ.) 11.2/12.0/12.6V (Min./Typ./Max.) -





LQ084S3LG12 supports display 800(RGB)×600 (SVGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.4(W)×127.8(H) mm, outline size of 200(W)×152(H)×9.8(D) mm, viewing area size of 173.4(W)×130.8(H) mm, with surface treament of Antiglare, Hard coating (2H), net weight of TBD. As a TN, Normally White, Transmissive LCM product, LQ084S3LG12 can provides 400 cd/m² display brightness 600:1 transimissive contrast ratio, 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 35 (Typ.)(Tr+Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit / 8-bit gray scale signal for each dot, thus presenting a palette of 262K/16.7M colors. This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver.
