LQ084V1DG21 Sharp 8.4" LCM 640×480RGB  300cd/m² INDUSTRIAL LCD DISPLAY

LQ084V1DG21  Sharp  8.4"  LCM  640×480RGB  300cd/m²  INDUSTRIAL LCD DISPLAY
LQ084V1DG21  Sharp  8.4"  LCM  640×480RGB  300cd/m²  INDUSTRIAL LCD DISPLAY LQ084V1DG21  Sharp  8.4"  LCM  640×480RGB  300cd/m²  INDUSTRIAL LCD DISPLAY LQ084V1DG21  Sharp  8.4"  LCM  640×480RGB  300cd/m²  INDUSTRIAL LCD DISPLAY LQ084V1DG21  Sharp  8.4"  LCM  640×480RGB  300cd/m²  INDUSTRIAL LCD DISPLAY

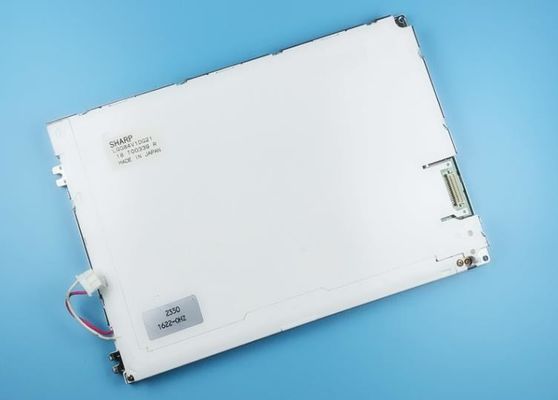

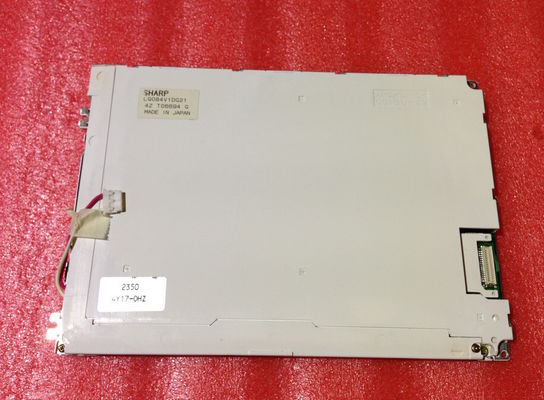

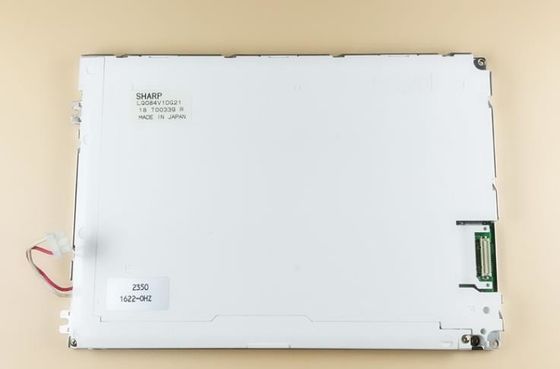

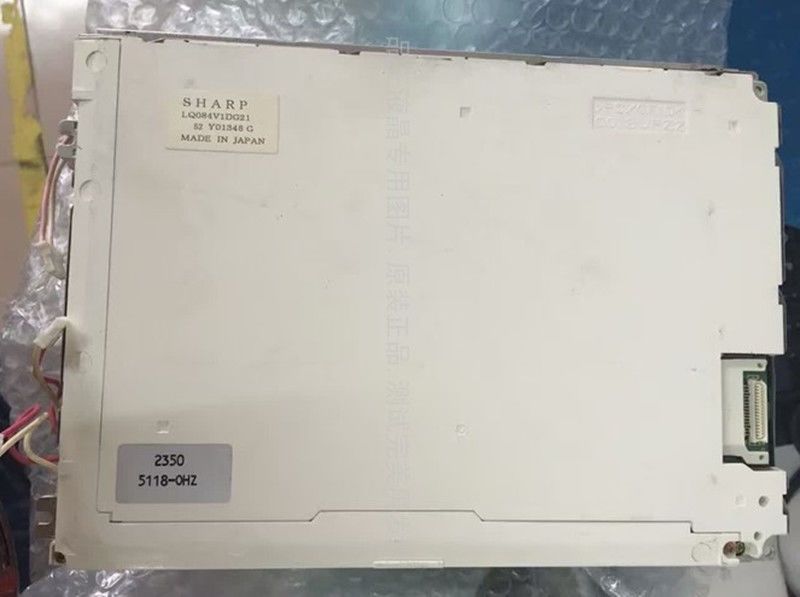

Large Image :  LQ084V1DG21 Sharp 8.4" LCM 640×480RGB  300cd/m² INDUSTRIAL LCD DISPLAY

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ084V1DG21
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 20 pcs / box 10.5 Kgs 483×275×330 mm (L×W×H)
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 500PCS

LQ084V1DG21 Sharp 8.4" LCM 640×480RGB  300cd/m² INDUSTRIAL LCD DISPLAY

Description
Model: LQ084V1DG21 Brand: Sharp
Light Source: CCFL [1 Pcs] , 50K Hours , W/O Driver Interface Type: Parallel RGB (1 Ch, 6-bit) 31 Pins Connector
Diagonal Size: 8.4 Inch Luminance: 300 Cd/m² (Typ.)
Pixel Format: 640(RGB)×480 [VGA] 94PPI Environment: Operating Temperature: 0 ~ 60 °C ; Storage Temperature: -25 ~ 70 °C
High Light:

CCFL LVDS Industrial LCD Panel

,

CCFL NEC TFT Panel

LQ084 Series LQ084V1DG22 LQ084V1DG21E LQ084V1DG21



Sharp LQ084V1DG21 Mechanical Details

Pixel Features : Resolution 640(RGB)×480, VGA Dot Pitch(mm) 0.089×0.270 (H×V)
Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.267×0.270 (H×V) [94PPI]
Mechanical Size : Active Area(mm) 170.88(H) × 129.6(V) Bezel Area(mm) 175.9(H) × 134.6(V)
Outline Dim.(mm) 216(H) × 152.4(V) Depth(mm) 12.0±0.5
Outline Features : Form Style Flat Rectangle Outline Shape
Aspect Ratio 4:3 (H:V) Orientation Landscape type
Mounting : Face mounting holes (4 pcs)
Other Spec : Weight 410±20g Treatment Antiglare (Haze 28%), Hard coating (3H), Antireflection





Sharp LQ084V1DG21 Optical Details

Basic Information : Luminance(cd/m²) 300 (Typ.) Contrast Ratio 250:1 (Typ.) (Transmissive)
Viewing Angle 55/55/55/40 (Typ.)(CR≥10)  Display Mode TN, Normally White, Transmissive
Best View on 12 o'clock Response(ms) 20/40 (Typ.)(Tr/Td)
Color Performance : White Coordinate X:0.313; Y:0.329 Display Colors 262K (6-bit)
Color Temperature 6485K White Uniformity 1.45 (Max.)(5 points)





Sharp LQ084V1DG21 Interface Details

Signal Electrical : Voltage Supply 3.3/5.0V (Typ.)(VCC) Current Supply 410mA (Typ. VCC=3.3V)(ICC)
Signal Type : Parallel RGB (1 ch, 6-bit) Signal Voltage VIL≤0.3VCC; 0.7VCC≤VIH
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
HRS DF9BA-31P-1V 1 pcs 31 pins 1.0 mm DRGB-31P1C6B-010K





Sharp LQ084V1DG21 Backlight Details

Backlight Features: Shape - Type CCFL Position Edge light type (Bottom side)
Replacement Replaceable (LQ0DDB0004) Quantity 1 pcs Life Time 50K(Typ.) (Hours)
Lamp Electrical : Voltage Supply   Current Supply 2.0/6.0/6.5mA (Min./Typ./Max.)
Frequency 20/45/70KHz (Min./Typ./Max.) Startup Voltage 1300/1500V (Max.)(Ta=+25/0℃)
Consumption 4.1W (Typ.)
Interface Features : Position - Type Connector
Interface Detail : Brand Model Quantity Pins Pitch Pin Configuration
JST BHR-03VS-1 1 pcs 3 pins 4.0 mm BLL-3PINS-HNL
Backlight Driver : No



LQ084V1DG21 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.88(W)×129.6(H) mm, outline size of 216(W)×152.4(H)×12.5(D) mm, viewing area size of 175.9(W)×134.6(H) mm, with surface treament of Antiglare (Haze 28%), Hard coating (3H), Antireflection, net weight of 410±20g. As a TN, Normally White, Transmissive LCM product, LQ084V1DG21 can provides 300 cd/m² display brightness 250:1 transimissive contrast ratio, 55/55/55/40 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 20/40 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 50K hours, external backlight driver is additionally needed.
