8.4" LCM 640×480RGB  300cd/m² LQ084V1DG22 Sharp TFT LCD Display

8.4"	LCM	640×480RGB 	300cd/m²  LQ084V1DG22 Sharp  TFT LCD Display
8.4"	LCM	640×480RGB 	300cd/m²  LQ084V1DG22 Sharp  TFT LCD Display 8.4"	LCM	640×480RGB 	300cd/m²  LQ084V1DG22 Sharp  TFT LCD Display 8.4"	LCM	640×480RGB 	300cd/m²  LQ084V1DG22 Sharp  TFT LCD Display 8.4"	LCM	640×480RGB 	300cd/m²  LQ084V1DG22 Sharp  TFT LCD Display

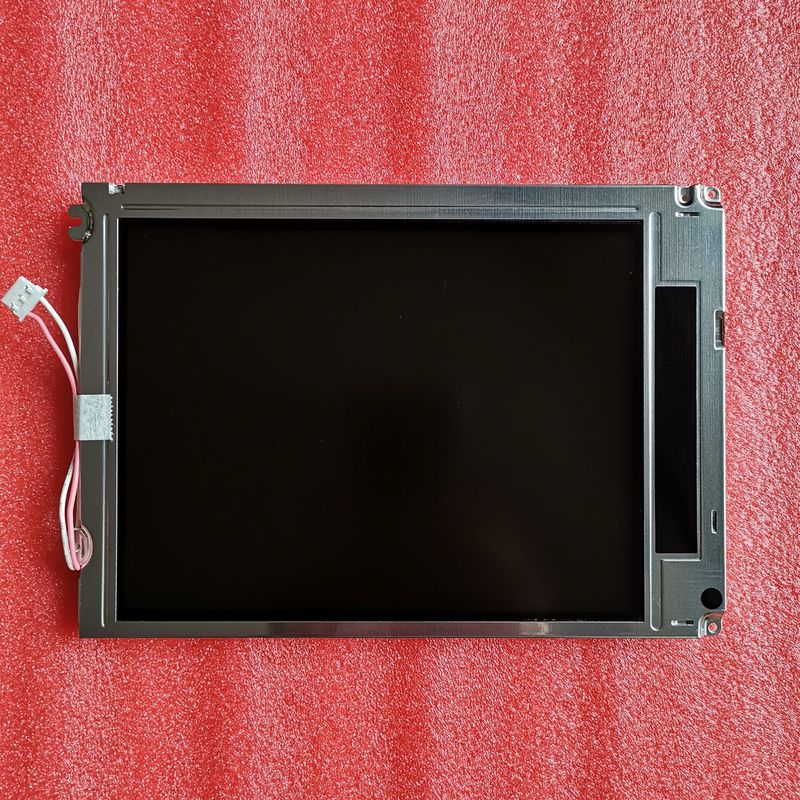

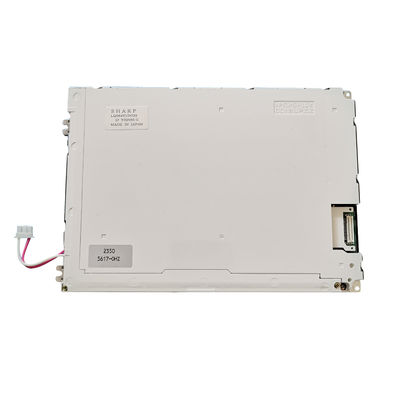

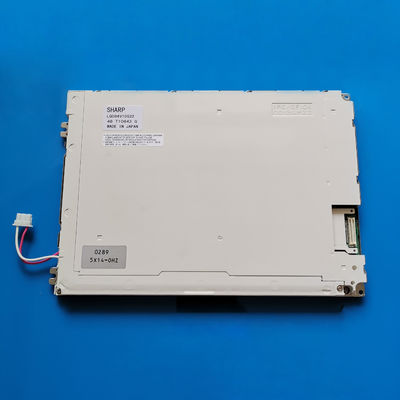

Large Image :  8.4" LCM 640×480RGB  300cd/m² LQ084V1DG22 Sharp TFT LCD Display

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ084V1DG22
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 20 pcs / box 10.5 Kgs 483×275×330 mm (L×W×H)
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 100PCS

8.4" LCM 640×480RGB  300cd/m² LQ084V1DG22 Sharp TFT LCD Display

Description
Panel Brand: Sharp Panel Model: LQ084V1DG22
Lamp Type: 1 Pcs CCFL , 50K Hours Signal Interface: Parallel RGB (1 Ch, 6-bit) , 31 Pins Connector
Brightness: 300 Cd/m² (Typ.) Panel Size: 8.4INCH
Resolution: 640(RGB)×480, VGA, 94PPI Environment: Operating Temp.: 0 ~ 55 °C ; Storage Temp.: -25 ~ 70 °C
High Light:

CCFL LVDS Industrial LCD Panel

,

CCFL NEC TFT Panel

LQ084 Series LQ084V1DG22 LQ084V1DG21E LQ084V1DG21





Sharp LQ084V1DG22 Mechanical Features

Panel Size : 8.4 inch
Pixel Features : Resolution Pixel Arrangement Dot Pitch (W×H) Pixel Pitch (W×H)
640(RGB)×480, VGA RGB Vertical Stripe 0.089×0.270 mm 0.267×0.270 mm [94PPI]
Mechanical Size : Active Area (W×H) Bezel Area (W×H) Outline Dimension (W×H) Outline Depth
170.88×129.6 mm 175.9×134.6 mm 216×152.4 mm 12.0 (Typ.) mm
Outline Features : Form Style Aspect Ratio Orientation Shape Style
Flat Rectangle 4:3 (W : H) Landscape type
Fixation : Face mounting holes (4 pcs)
Other Features : Panel Cover Weight Surface
- 410±20g Antiglare (Haze 28%), Hard coating (3H)





Sharp LQ084V1DG22 Optical Features

Basic Information : Brightness Operating Mode Contrast Ratio
300 cd/m² (Typ.) TN, Normally White, Transmissive 250:1 (Typ.) (Transmissive)
Viewing Angle(L/R/U/D) Viewing Direction Response Speed
55/55/55/40 (Typ.)(CR≥10) 12 o'clock 20/40 (Typ.)(Tr/Td) (ms)
Dispaly Color : Color Temperature Color Amount White color Chromaticity
6172K 262K (6-bit) X:0.319; Y:0.329
Luminance Variation : 1.45 (Max.)(5 points)





Sharp LQ084V1DG22 Interface Features

Signal Electrical : Current Input Voltage Input Consumption
410/460mA (Typ./Max. VCC=3.3V)(ICC) 3.3/5.0V (Typ.)(VCC) -
Voltage for Display Signals : VIL≤0.3VCC; 0.7VCC≤VIH
Interface Features : Position Type Interface
- Connector Parallel RGB (1 ch, 6-bit)
Signal Interface : Brand Model Amount Pin Pitch Pins Pin Assignment
HRS DF9BA-31P-1V 1 pcs 1.0 mm 31 pins DRGB-31P1C6B-010K





Sharp LQ084V1DG22 Backlight Features

Backlight Features: Type Position Shape Amount  Life(Hours) Replacement
CCFL - - 1 pcs 50K(Typ.) -
CCFL Electrical : Current Input Voltage Input Consumption
2.0/6.0/6.5mA (Min./Typ./Max.)   4.1W (Typ.)
Turn-on Voltage Lamp Frequency
1300/1500V (Max.)(Ta=+25/0℃) 20/45/70KHz (Min./Typ./Max.)
Interface Features : Position Type CCFL Driver
- Connector
Interface Detail Brand Model Amount Pin Pitch Pins Pin Assignment
JST BHR-03VS-1 1 pcs 4.0 mm 3 pins BLL-3PINS-HNL





LQ084V1DG22 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.88(W)×129.6(H) mm, outline size of 216(W)×152.4(H) mm, viewing area size of 175.9(W)×134.6(H) mm, with surface treament of Antiglare (Haze 28%), Hard coating (3H), net weight of 410±20g. As a TN, Normally White, Transmissive LCM product, LQ084V1DG22 can provides 300 cd/m² display brightness 250:1 transimissive contrast ratio, 55/55/55/40 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 12 o'clock , and response time of 20/40 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 1 pcs CCFL as it's backlight systerm and have a working life time of 50K hours.



8.4"	LCM	640×480RGB 	300cd/m²  LQ084V1DG22 Sharp  TFT LCD Display 0
