8.4" LCM 640×480RGB  400cd/m² LQ084V3DG01 Sharp TFT LCD Display

8.4"	LCM	640×480RGB 	400cd/m²  LQ084V3DG01  Sharp	TFT LCD Display
8.4"	LCM	640×480RGB 	400cd/m²  LQ084V3DG01  Sharp	TFT LCD Display 8.4"	LCM	640×480RGB 	400cd/m²  LQ084V3DG01  Sharp	TFT LCD Display 8.4"	LCM	640×480RGB 	400cd/m²  LQ084V3DG01  Sharp	TFT LCD Display

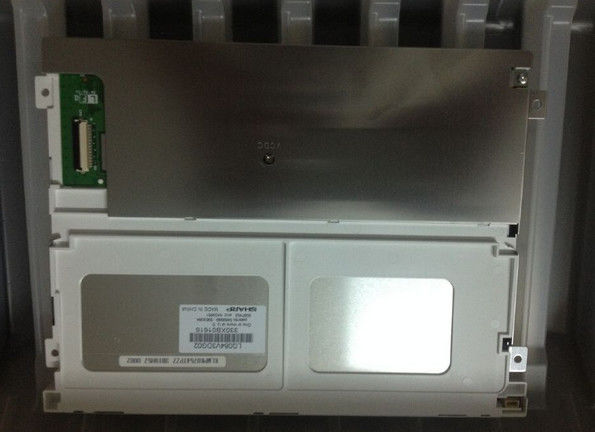

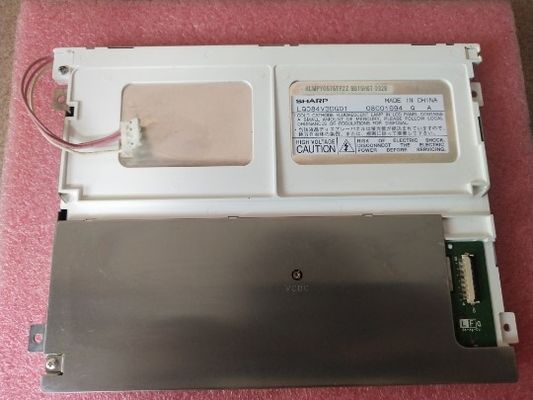

Large Image :  8.4" LCM 640×480RGB  400cd/m² LQ084V3DG01 Sharp TFT LCD Display

Product Details:
Place of Origin: JAPAN
Brand Name: SHARP
Certification: ISO9001
Model Number: LQ084V3DG01
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 10 pcs / box 6 Kgs 408×203×244 mm (L×W×H)
Delivery Time: 1-2 DAYS
Payment Terms: TT/PAYPAL/WESTERN UNION/ESCROW
Supply Ability: 200PCS

8.4" LCM 640×480RGB  400cd/m² LQ084V3DG01 Sharp TFT LCD Display

Description
Model Name: LQ084V3DG01 Manufacturer: Sharp
Pixel Number: 640(RGB)×480 (VGA) 95PPI Screen Size: 8.4 Inch
Luminance: 400 Cd/m² (Typ.) Backlight: 2 Pcs CCFL , 50K Hours , No Driver
Signal Type: Parallel RGB (1 Ch, 6-bit) , 33 Pins Connector Max. Ratings: Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²)
High Light:

CCFL LVDS Industrial LCD Panel

,

CCFL NEC TFT Panel

LQ084 Series LQ084V3DG02 LQ084V3DG01





Sharp LQ084V3DG01 Optical Features

Basic Information : Luminance (cd/m²) Viewing Angle (L/R/U/D) Response Time (ms)
400 (Typ.) 65/65/55/60 (Typ.)(CR≥10) 5/21 (Typ.)(Tr/Td)
Best View on Display Mode Contrast Ratio
6 o'clock TN, Normally White, Transmissive 600 : 1 (Typ.) (Transmissive)
Dispaly Color : Color Temperature Display Colors White Coordinate
6485K 262K (6-bit) X:0.313; Y:0.329





Sharp LQ084V3DG01 Mechanical Features

Panel Size : 8.4"
Pixel Features : Pixel Format Pixel Configuration Pixel Pitch (mm) Dot Pitch (mm)
640(RGB)×480 [VGA] RGB Vertical Stripe 0.267×0.267 [95PPI] 0.089×0.267
Mechanical Size : Active Area (mm) Bezel Area (mm) Outline Dimension (mm) Outline Depth (mm)
170.88(H) × 128.16(V) 175.5(H) × 133.0(V) 199.5(H) × 149.5(V) 11.6 (Typ.) mm
Outline Features : Form Factor Orientation Aspect Ratio Shape Style
Flat Rectangle Landscape type 4:3 (H:V)
Mounting : Face mounting holes
Other Detail : Weight Panel Cover Treatment
400g (Max.) - Antiglare





Sharp LQ084V3DG01 Backlight Features

Lamp Features: Type Position Quantity  Shape Life(Hours) Lamp Exchange
CCFL Edge light type (Top side) 2 pcs Straight 50K(Typ.) Replaceable (LQ0DDB0004)
CCFL Electrical : Voltage Supply Current Supply Power
420±40V 3.0/6.0/6.5mA (Min./Typ./Max.) 5.0W (Typ.)
Operating Frequency Kick-off Voltage
50/80KHz (Min./Max.) 890/1070V (Max.)(Ta=+25/-30℃)
Interface Features : Position Backlight Driver Type
- No Connector
Interface Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
JST BHR-04VS-1 4.0 mm 4 pins 1 pcs BLL-4PINS-HHNL





Sharp LQ084V3DG01 Interface Features

Panel Driving Electrical : Voltage Supply Current Supply Power
3.3V (Typ.)(VCC) 200mA (Typ.)(ICC) -
Voltage for Display Signals : VIL≤0.8V; 2.1V≤VIH
Interface Features : Position Signal Type
- Parallel RGB (1 ch, 6-bit) Connector
Connector Detail : Brand Model Pin Pitch Pin Amount Quantity Configuration
IRISO IMSA-9637S-33Y902 0.5 mm 33 pins 1 pcs DRGB-33P1C6B-020A





LQ084V3DG01 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.88(W)×128.16(H) mm, outline size of 199.5(W)×149.5(H) mm, viewing area size of 175.5(W)×133.0(H) mm, with surface treament of Antiglare, net weight of 400g (Max.). As a TN, Normally White, Transmissive LCM product, LQ084V3DG01 can provides 400 cd/m² display brightness 600:1 transimissive contrast ratio, 65/65/55/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 5/21 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 2 pcs CCFL as it's backlight systerm which was placed as Edge light type (Top side) and have a working life time of 50K hours, external backlight driver is additionally needed.
