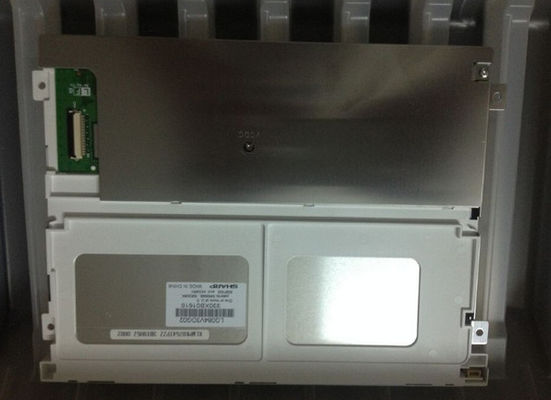

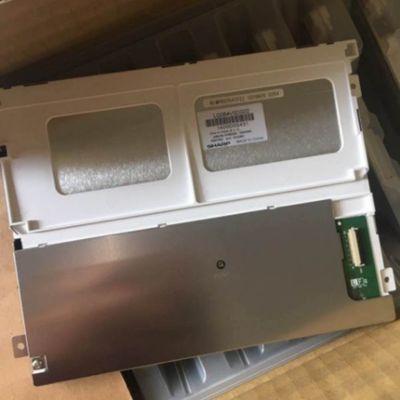

Product Details:
|
| Panel Model: | LQ084V3DG02 | Panel Brand: | Sharp |
|---|---|---|---|
| Brightness: | 400 Cd/m² (Typ.) | Panel Size: | 8.4INCH |
| Signal Interface: | Parallel RGB (1 Ch, 6-bit) , 33 Pins Connector | Lamp Type: | 6S2P WLED , 50K Hours , Without Driver |
| Resolution: | 640(RGB)×480, VGA, 95PPI | Environment: | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C ; Vibration Level: 2.0G (19.6 M/s²) |
| High Light: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
LQ084 Series LQ084V3DG02 LQ084V3DG01
| Pixel Features : | Pixel Format | 640(RGB)×480 [VGA] | Dot Pitch | 0.089×0.267 mm (H×V) |
|---|---|---|---|---|
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.267×0.267 mm (H×V) [95PPI] | |
| Mechanical Size : | Display Area | 170.88×128.16 mm (H×V) | Bezel Area | 175.5×133.0 mm (H×V) |
| Outline Dim. | 199.5×149.5 mm (H×V) | Outline Depth | 11.6 (Typ.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Face mounting holes (4-Φ3.2) | |||
| Other Features : | Weight | 400g (Max.) | Surface | Antiglare |
| Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
|---|---|---|---|---|
| Viewing Angle | 65/65/55/60 (Typ.)(CR≥10) | Optical Mode | TN, Normally White, Transmissive | |
| Viewing Direction | 6 o'clock | Response Time | 5/21 (Typ.)(Tr/Td) (ms) | |
| Color Performance : | Chromaticity | Wx:0.292; Wy:0.316 | Color Numbers | 262K (6-bit) |
| Color Temperature | 7970K | White Uniformity | - |
| Reverse Scan : | Yes (U/D, L/R) |
|---|---|
| Power Consumption : | 4.62W |
| Back-light Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Life Time | 50K(Typ.) (Hours) |
|---|---|---|---|---|---|---|
| Replacement | - | Amount | 6S2P | Position | Edge light type | |
| Lamp Electrical : | Voltage Input | 19.8V (Typ.) | Current Input | 100/105mA (Typ./Max.) | ||
| Consumption | 3.96W (Typ.) | |||||
| Interface Features : | Type | Connector | Position | - | Lamp Driver | No |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| JST | SM04B-SRSS-TB(LF)(SN) | 1.0 mm | 4 pins | 1 pcs | BLE-4PINS-AACC | |
| Signal Systerm : | Parallel RGB (1 ch, 6-bit) | Logic Voltage | VIL≤0.8V; 2.1V≤VIH | |||
|---|---|---|---|---|---|---|
| Signal Electrical : | Voltage Input | 3.3V (Typ.)(VCC) | Current Input | 200/360mA (Typ./Max.)(ICC) | ||
| Interface Features : | Type | Connector | Position | - | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| IRISO | IMSA-9637S-33Y902 | 0.5 mm | 33 pins | 1 pcs | DRGB-33P1C6B-020A | |
LQ084V3DG02 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 170.88(W)×128.16(H) mm, outline size of 199.5(W)×149.5(H) mm, viewing area size of 175.5(W)×133.0(H) mm, with surface treament of Antiglare, net weight of 400g (Max.). As a TN, Normally White, Transmissive LCM product, LQ084V3DG02 can provides 400 cd/m² display brightness 600:1 transimissive contrast ratio, 65/65/55/60 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on 6 o'clock , and response time of 5/21 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors. This product adopted 6S2P WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 50K hours, external backlight driver is additionally needed.
