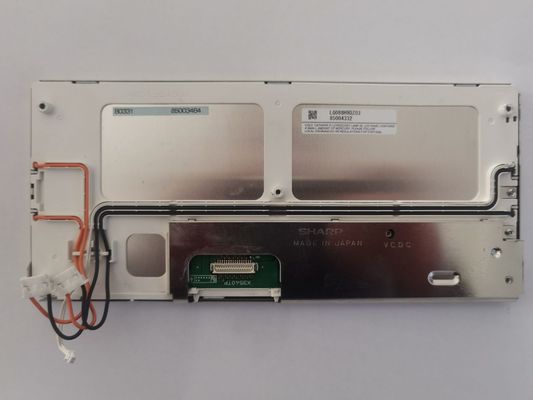

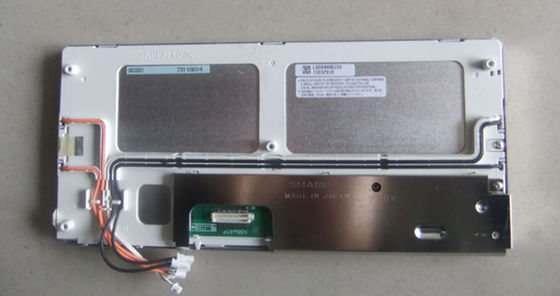

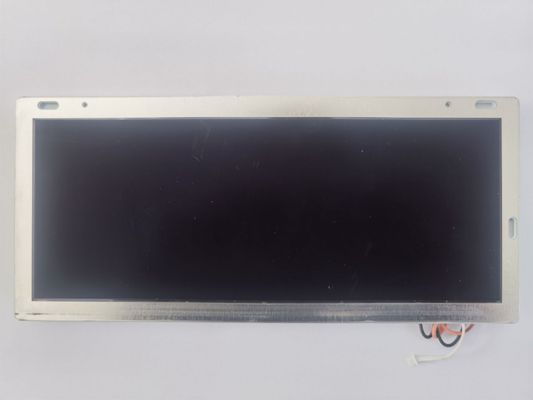

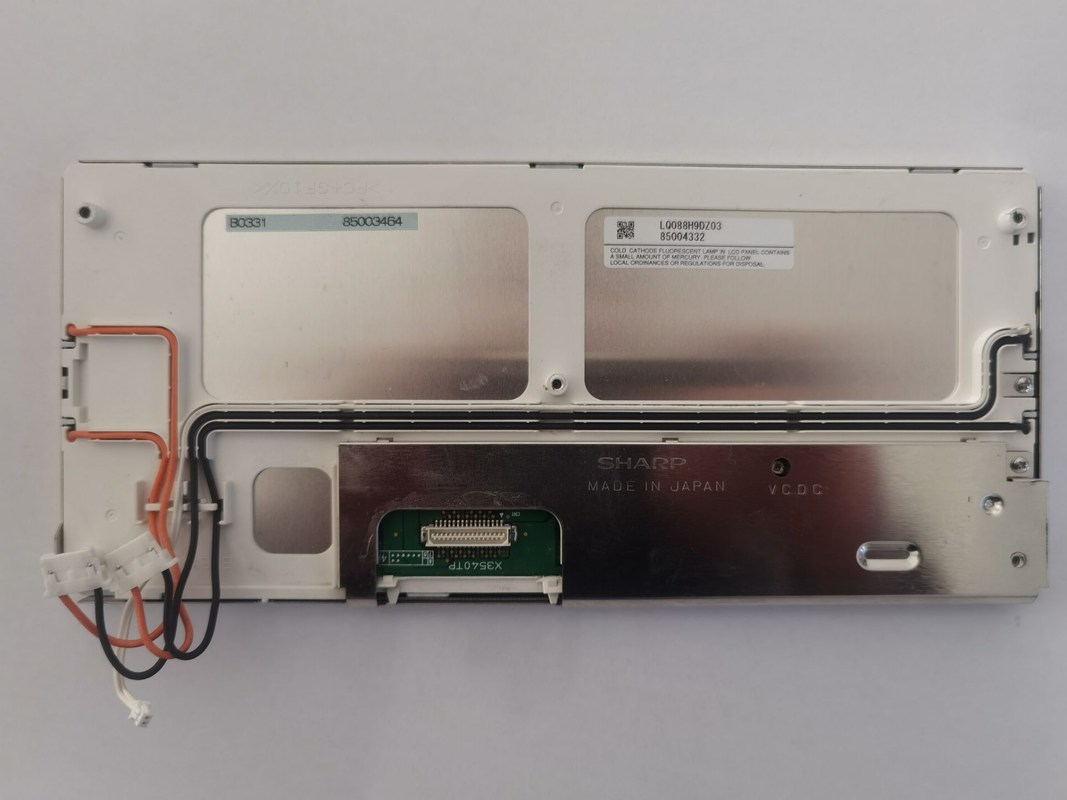

Product Details:
|
| Model Name: | LQ088H9DZ01 | Screen Size: | 8.8INCH |
|---|---|---|---|
| Luminance: | 250 Cd/m² (Typ.) | Pixel Number: | 640(RGB)×240 (HVGA) 77PPI |
| Backlight: | 2 Pcs CCFL , 10K Hours , No Driver | Signal Type: | Parallel RGB (1 Ch, 6-bit) , 31 Pins Connector |
| Viewing Angle: | 60/60/60/60 | Max. Ratings: | Storage Temp.: -40 ~ 95 °C Operating Temp.: -40 ~ 85 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| Highlight: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
LQ088 Series LQ088H9DZ03 LQ088H9DZ01 LQ088H9DR01U LQ088H9DR01R
| Pixel Features : | Resolution | 640(RGB)×240, HVGA | Dot Pitch(mm) | 0.109×0.327 (H×V) |
|---|---|---|---|---|
| Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.327×0.327 (H×V) [77PPI] | |
| Mechanical Size : | Active Area(mm) | 209.28(H) × 78.48(V) | Bezel Area(mm) | 214.6(H) × 83.9(V) |
| Outline Dim.(mm) | 231.6(H) × 103.3(V) | Depth(mm) | 14.4 (Typ.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 8:3 (H:V) | Orientation | Landscape type | |
| Mounting : | Rear mounting holes (4-Ф2.2) | |||
| Other Spec : | Weight | 370g (Max.) | Treatment | Antiglare |
| Basic Information : | Luminance(cd/m²) | 250 (Typ.) | Contrast Ratio | 150:1 (Min.) (Transmissive) 8:1 (Typ.) (Reflective) |
|---|---|---|---|---|
| Viewing Angle | 60/60/60/60 (Typ.)(CR≥10) | Display Mode | TN, Normally White, Transflective | |
| Best View on | - | Response(ms) | 30/20 (Typ.)(Tr/Td) | |
| Color Performance : | White Coordinate | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
| Color Temperature | 6485K | White Uniformity | - | |
| 1931 Color Gamlt : | NTSC Ratio | 46% | sRGB | 63% coverage |
| Adobe RGB | 48% coverage | DCI-P3 | 48% coverage | |
| Rec.2020 | 34% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
| 3D Type | - | Reflectance | 4.4/5.5% (Min./Typ.) |
| Signal Electrical : | Voltage Supply | 5/10/-10V (Typ.)(VSH/VGH/VGL) | Current Supply | 40/25/-20mA (Typ.)(ISH/IGH/IGL) | ||
|---|---|---|---|---|---|---|
| Signal Type : | Parallel RGB (1 ch, 6-bit) | Signal Voltage | VIL≤0.9V; 2.3V≤VIH | |||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| HRS | DF9MA-31P-1V | 1 pcs | 31 pins | 1.0 mm | DRGB-31P1C6B-100A | |
| Backlight Features: | Shape | Straight | Type | CCFL | Position | Edge light type (Top and Bottom) |
|---|---|---|---|---|---|---|
| Replacement | - | Quantity | 2 pcs | Life Time | 10K(Min.) (Hours) | |
| Lamp Electrical : | Voltage Supply | 590±60V | Current Supply | 4.0/5.0/5.5mA (Min./Typ./Max.) | ||
| Frequency | 30/75KHz (Min./Max.) | Startup Voltage | 1296/1330V (Max.)(Ta=+25/-30℃) | |||
| Consumption | 9.0W (Max.) | |||||
| Interface Features : | Position | - | Type | Connector | ||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
| JST | BHR-02(8.0)VS-1N | 2 pcs | 2 pins | 8.0 mm | BLL-2PINS-HL | |
| Backlight Driver : | No | |||||
