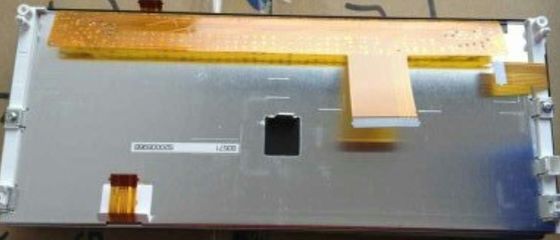

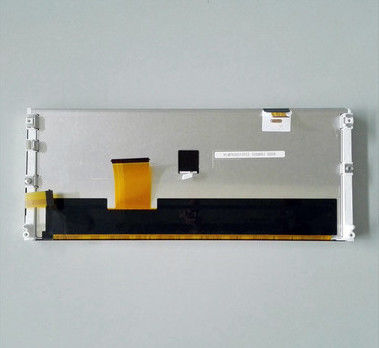

Product Details:
|
| Brand: | Sharp | Model: | LQ088K9LA02 |
|---|---|---|---|
| Luminance: | 240 Cd/m² (Typ.) | Diagonal Size: | 8.8 Inch |
| Pixel Format: | 1280(RGB)×480 [DVGA] 155PPI | Interface Type: | RSDS (1 Channel) 70 Pins FPC |
| Light Source: | WLED [4 Strings] , 10K Hours , W/O Driver | Environment: | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 M/s²) |
| High Light: | CCFL LVDS Industrial LCD Panel,CCFL NEC TFT Panel |
||
LQ088 Series LQ088K9LA02 LQ088K9LA01
| Panel Size : | 8.8 inch | |||
|---|---|---|---|---|
| Pixel Features : | Resolution | Pixel Arrangement | Dot Pitch (W×H) | Pixel Pitch (W×H) |
| 1280(RGB)×480, DVGA | RGB Vertical Stripe | 0.0545×0.1635 mm | 0.1635×0.1635 mm [155PPI] | |
| Mechanical Size : | Active Area (W×H) | Bezel Area (W×H) | Outline Dimension (W×H) | Outline Depth |
| 209.28×78.48 mm | 213.0×81.0 mm | 231.6×94.7 mm | 11.25 mm | |
| Outline Features : | Form Style | Aspect Ratio | Orientation | Shape Style |
| Flat Rectangle | 8:3 (W : H) | Landscape type | ||
| Other Features : | Panel Cover | Weight | Surface | |
| - | 320g (Max.) | Antiglare, Antireflection | ||
| Basic Information : | Brightness | Operating Mode | Contrast Ratio |
|---|---|---|---|
| 240 cd/m² (Typ.) | Normally Black, Transflective | 360:1 (Typ.) (Transmissive) 5:1 (Typ.) (Reflective) | |
| Viewing Angle(L/R/U/D) | Viewing Direction | Response Speed | |
| - | Symmetry | 5/5 (Typ.)(Tr/Td) (ms) | |
| Dispaly Color : | Color Temperature | Color Amount | White color Chromaticity |
| 7351K | 262K (6-bit) | X:0.300; Y:0.320 | |
| 1931 Color Gamlt : | NTSC Ratio | sRGB Coverage | Adobe RGB Coverage |
| 45% | 62% | 47% | |
| DCI-P3 Coverage | Rec.2020 Coverage | Remarks | |
| 47% | 34% | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Luminance Variation : | 1.25/1.30 (Typ./Max.)(9 points) | ||
| Frame Rate : | 60Hz |
|---|---|
| Reverse Scan : | Yes (U/D, L/R) |
| Interface Features : | Position | Type | Interface | |||
|---|---|---|---|---|---|---|
| - | FPC | RSDS (1 Channel) | ||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 50 pins | ||||
| 1 pcs | 0.5 mm | 20 pins | ||||
| Backlight Features: | Type | Position | Shape | Amount | Life(Hours) | Replacement |
|---|---|---|---|---|---|---|
| WLED | Edge light type | 4 strings | 4 strings | 10K(Min.) | - | |
| WLED Electrical : | Current Input | Voltage Input | Consumption | |||
| 80mA (Typ.) | 21.0/24.8/26.9V (Min./Typ./Max.) | 7.6W (Typ.) | ||||
| Interface Features : | Position | Type | WLED Driver | |||
| - | FPC | No | ||||
| Interface Detail | Brand | Model | Amount | Pin Pitch | Pins | Pin Assignment |
| 1 pcs | 0.5 mm | 20 pins | ||||
LQ088K9LA02 supports display 1280(RGB)×480 (DVGA) with aspect ratio of 8:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 209.28(W)×78.48(H) mm, outline size of 231.6(W)×94.7(H) mm, viewing area size of 213.0(W)×81.0(H) mm, with surface treament of Antiglare, Antireflection, net weight of 320g (Max.). As a Normally Black, Transflective LCM product, LQ088K9LA02 can provides 240 cd/m² display brightness 360:1 transimissive contrast ratio, 5:1 (Typ.) reflective contrast ratio, best view direction on Symmetry , and response time of 5/5 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 45% (NTSC). This product adopted 4 strings WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 10K hours, external backlight driver is additionally needed.
